Solar Fan Mini Inner Rotor BLDC motor 26V Low Noise Long Life

Minimum Order Quantity :	500	Price :	Negotiated The Price
Packaging Details :	500pcs per carton or as request	Delivery Time :	10-12 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	Guangdong, China	Brand Name:	SECORE
Certification:	CE ROHS	Model Number:	BLS-3626I

Detail Information
Speed:	5000-8000 Or Customized	Rated Voltage:	8-26V
Rated Torque:	96 G.cm Or As Request	Continuous Current:	0.6A
Product Name:	Mini BLDC Motor, 12V Brushless Dc Motor, 24v Motor Brushless	Usage:	Door Lock, Carbinet Lock, Pet Haircut, Vacuum Pump
High Light:	Solar Fan Inner Rotor BLDC motor , 26V Inner Rotor BLDC Motor , 26V mini bldc motor

Product Description

Small Size Internal Rotor Brushless Motor With Super Long Life Low Noise For Solar Fan

Specification:

Type: brushless DC motor
Construction: permanent magnet
Motor terminations: VCC/FG/CW/CCW/GND/PWM/brake
Output power:2-15W
Voltage: 12V
Diameter of motor housing: 36mm
Length of motor housing: 26mm
Diameter of the output shaft: 4mm
Long lifetime
Low noise, low EMI

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
	OPERATING RANGE	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
	OPERATING RANGE	RATED	r/min	A	r/min	A	g.cm	W	g.cm	A
BLS3626I-V1	8V~16V	12V	6027	0.15	4882	0.638	96.1	4.814	506	2.721
BLS3626I-V2	8V~26V	18V	7435	0.124	6022	0.504	91.1	5.621	478.9	2.121
BLS3626I-V3	8V~26V	24V	8927	0.111	7231	0.456	91.3	480.8	480.8	1.926

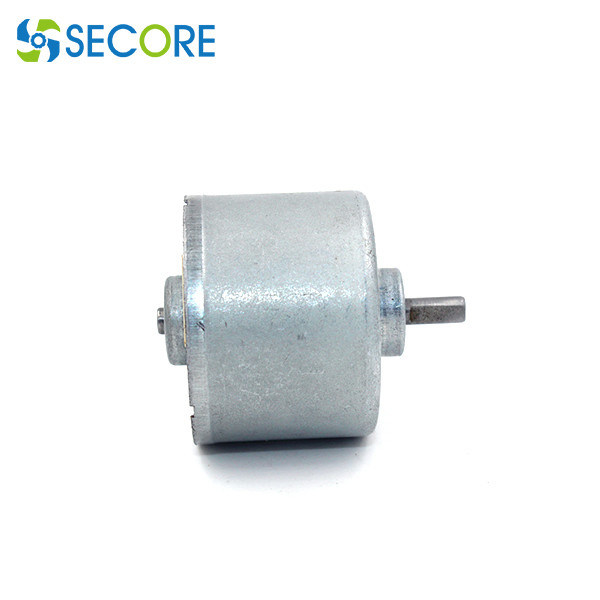

Solar Fan Mini Inner Rotor BLDC motor 26V Low Noise Long Life 0

TO BE TAILORED

Generally select the appropriate power, voltage, speed, torque and body size according to the actual situation (load, structure size, etc.), and then match the brushless drive according to the specific parameters of the selected DC brushless motor.

1. Voltage, current, speed and torque.
2. Shape of shaft: "D" "Round" "Flat" "Hexagon Axis" "Square axis", shaft dimension
3. Bearing: ball bearing, oil bearing
4. Materials of shell: plastic metal etc
6. Optional equip with reducer, braker, encoder, controller, gearhead, driver etc

If there is no suitable specifications, it can be customized according to actual needs.

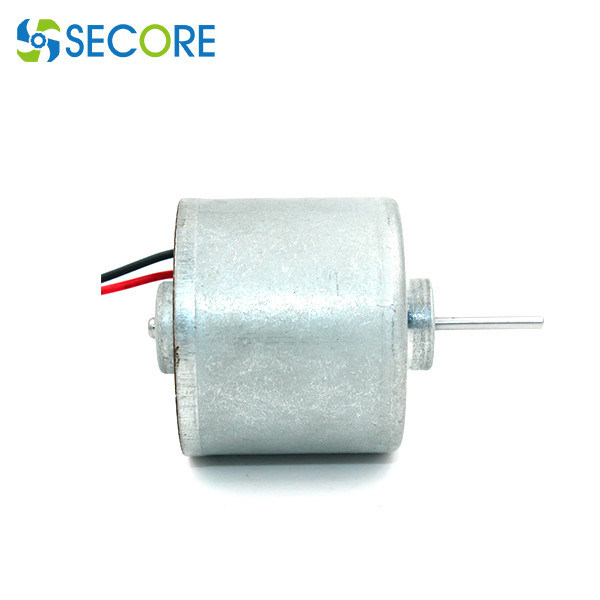

Solar Fan Mini Inner Rotor BLDC motor 26V Low Noise Long Life 1

Solar Fan Mini Inner Rotor BLDC motor 26V Low Noise Long Life 2

Some of the Typical Application

Provide Solutions For Office Equipments, Air Purification Systems, Water Treatment Systems, Medical Equipments, Logistic Transmission Systems, Mechanical Equipments, Solar Tracking Equipments
