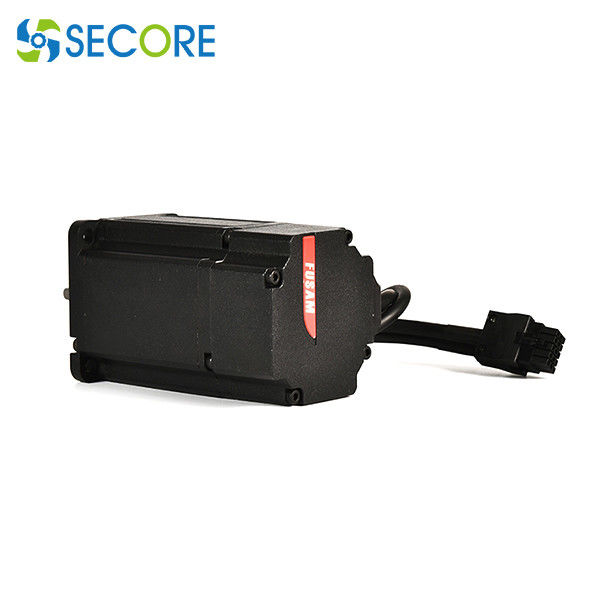

IP65 3000rpm AC Servo Motor , 3A 220V Servo Motor With Encoder For CNC Machine

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 100pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, Western Union Supply Ability : 40000pcs/month
Place of Origin: China Brand Name: SECORE
Certification: CE ROHS Model Number: 80A-M07530-001B

Detail Information

Phase: 3 Phase Protect Feature: Drip-proof
Rated Power: 750W 0.75KW Rated Speed: 3000RPM
Rated Current: 3A Motor Type: AC Servo Motor
AC Voltage: 220V Protection Class: IP65
High Light:

220V 3 Phase AC Servo Motor

,

3A 3 Phase AC Servo Motor

,

3A 220v servo motor

Product Description

IP65 3000rpm AC Servo Motor 220V 3A With Encoder For Cnc Machine



Main features:



Motor model: 80A-M07530-001B

Rated power: 750W

Current: 3A

Rated speed: 3000RPM

Resistance: 2.88Ω

Inductance: 14.5mH

encoder: 2500

Hold torque: 2.39N.m

Protection class: IP65

Cable length: 3 Meters



Motor MODEL
80A-M07530-001B
Rated Power(KW)
0.75
Current (A)
3
Rated Speed(RPM)
3000
Resistance(Ω)
2.88
encoder
2500
Inductance(mH)
14.5
insulation class
Class F
Hold Torque(N.m)
2.39
Protection class
IP65







Construction dimensions:



IP65 3000rpm AC Servo Motor ,  3A 220V Servo Motor With Encoder For CNC Machine 0



IP65 3000rpm AC Servo Motor ,  3A 220V Servo Motor With Encoder For CNC Machine 1





What is a servo motor?



A servo motor is a rotary actuator that is designed for precise precision control. It consists of an electric motor, a feedback device, and a controller. They are able to accommodate complex motion patterns and profiles better than any other type of motor. Although they are small in size they can pack a lot of power, and are extremely energy efficient.



There are two types of servo motors, AC servos and DC servos. The main difference between the two motors is their source of power. AC servo motors rely on an electric outlet, rather than batteries like DC servo motors. While DC servo motor performance is dependent only on voltage, AC servo motors are dependent on both frequency and voltage. Because of the complexity of the power supply, AC servo motors can handle high surges, which is why they are often used in industrial machinery.



Motor solution in areas of extertise



Used for robots servo motor
Electronic automatic equipment servo motor
Medical instrument servo motor
Advertising instrument servo motor
Lighting& audio equipment servo motor
Printer stepper motor, textile machinery servo motor
Cnc router servo motor
