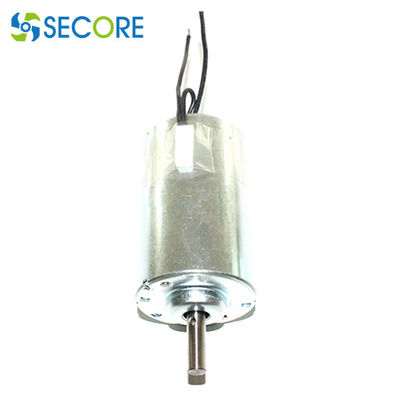

Brushed High Torque Electric Motor 120V For Vacuum Cleaner Robot

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: DC34B

Detail Information

Speed: 6000rpm Or Customized Rated Voltage: 230Volt
Diameter * Length: ø34mm * 70mm Shaft Diameter: ø5mm
Protection: Explosion Proof, Water Proof, Drip-proof Typical Application: Paper Shredder, Shredding Machine, Cutting Machine
High Light:

Brushed high torque electric motor

,

120V high torque electric motor

,

Brushed High Torque Dc Motor

Product Description

120V Brushed Dc Electric Motor, High Torque Dc Motor For Vacuum Cleaner Robot



Key Specifications/Special Features:

Model: DC34-b series
Voltage: 120V
Torque: 115mN.m
Power:123W
Speed:6200RPM
Introduction:Small Size;Low Noise;High Speed



HV permanent magnet DC motor applies for paper shredder, hand blender, meat grinder, meat mincer, mixer, food processor,   power tools, smart household appliances



MODEL SPEC VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY
A B C Operating
range
RATED SPEED CURRENT POWER SPEED CURRENT OUTPUT TORQUE
r/min A W r/min A W m.Nm
DC3415 61 18.5 200 100V-240V 120V 9000 0.13 25 6200 0.6 123 115
DC3425 71 48 220 100V-240V 12V 8500 0.2 38 6350 0.68 127.6 121.5
DC3434 81 31.5 220 100V-240V 180V 8500 0.2 30 4500 0.68 129 121.4



Brushed High Torque Electric Motor 120V For Vacuum Cleaner Robot 0



TO BE TAILORED



Our brushed DC Motors can be customized in the range of 7.2 ~ 230V and 40~100,000rpm, and are fully used in the fields of household appliances, automation, medical healthcare and power tools, such as: hand blender, coffee machine, vacuum cleaner, Robot, etc



All characteristics above are customizable, if you want Worm Gear Motor, Stepper Motor, Brushless DC Motor, Brush Motor and other motors' OEM / ODM service, please contact us for further information.



Brushed High Torque Electric Motor 120V For Vacuum Cleaner Robot 1



What we make?



Secore provides custom engineering to design gear motors utilizing various motor type ( brushless DC motor, brushed DC motor, universal motor and other motors),integrated control & sensing, gear type(spur & helical, worm and planetary) and gearbox material to meet customers' expectation.



Brushed High Torque Electric Motor 120V For Vacuum Cleaner Robot 2



Brushed High Torque Electric Motor 120V For Vacuum Cleaner Robot 3



Brushed High Torque Electric Motor 120V For Vacuum Cleaner Robot 4



Motor Solution for areas of expertise



-Office apparatus and medical devices

• Printer, Copier, Projector, Shredder, fax ( paper cutter ), computer peripheral, lifting socket etc.

• breath machine, medical cleaning pump, medical ventilator, medical bed, dental instrument, surgical robot etc

- Power tool and fitness equipment

• Electric screwdriver, Electric hydraulic pliers, Electric scissors,

• Fascia gun, massage chair, treadmill

-Household appliances and personal care

• Air purifier, smart toilet, hair dryer, hair curler, tooth brush, vibration, rubdown machine, foot grinder, facial beauty equipment, eyebrow tweezer, electric threading knife
