220V 100W DC Permanent Magnet Brushed Motor For Enterance Gate Lifting Rod

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China Brand Name: SECORE
Certification: CE ROHS Model Number: DC63D

Detail Information

Speed: 12000rpm Or Customized Rated Voltage: 220V Or As Request
Diameter * Length: 63*95mm Max Efficient: 71%
Rated Torque: 156mN.m Typical Application: Lifting Rod, Slow Juicer, Lawn Mower
High Light:

220V permanent magnet brushed motor

,

100W permanent magnet brushed motor

,

permanent magnet brushed dc motor

Product Description

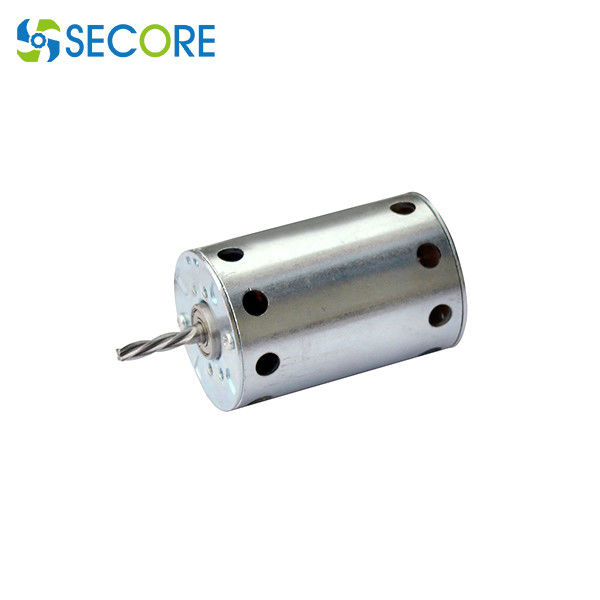

220V 100W Permanent Magnet Brushed Motor For Lifting Rod In Enterance Gate



Main characteristics:



DC63 12V, 220V 100W PM Brushed DC Motor

* Motor OD: 63mm

* Voltage: 12V DC, 24V DC, 48V DC, 110V DC, 300V DC
* Power: 20W ~ 250W
* Output Speed: 750 ~ 12000RPM
* Without Gearbox
* Customized shaft & front cover available upon request



Motor size:



220V 100W DC Permanent Magnet Brushed Motor For Enterance Gate Lifting Rod 0



Technical data:


Model Rated voltage VDC No-load speed r/min No-load current mA Rated speed r/min Rated torque mN.m Output power W Rated current A Stall torque mN.m Stall current A
D6395 220 5400 0.2 12000 160 69 0.6 290 5.7





Typical Application:



telescopic rod motor AI Motor Robotic arm motor
massage chair motor curtain motor medical robot motor
Embossing machine motor slow juicer motor roll door motor
printing machine motor robot cleaner motor slide door motor
oven gear motor door motor PTZ camera motor
