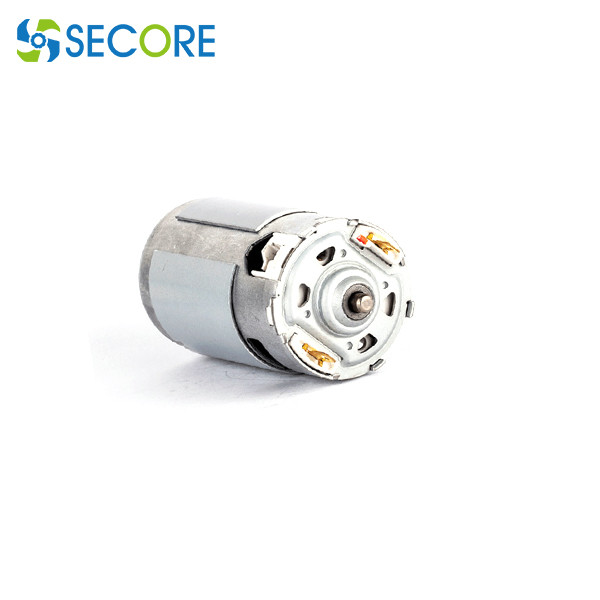

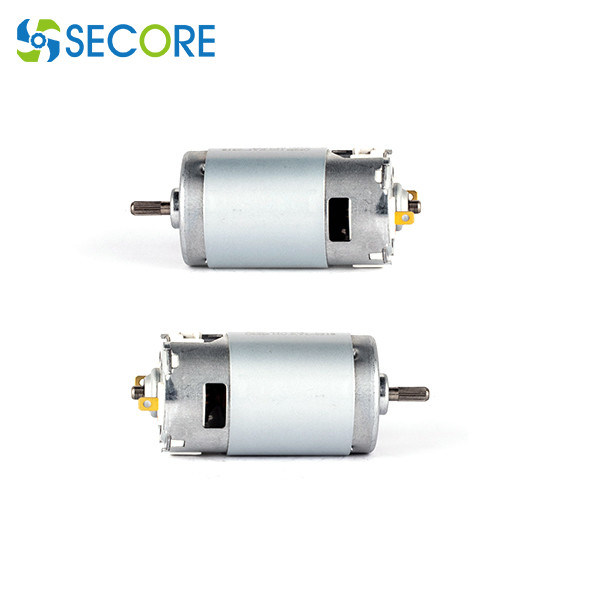

190W High Voltage DC Motor 220V Grinder Motor 14000rpm DC Brushed Motor

Name: 190W High Voltage DC Motor 220V Grinder Motor 14000rpm DC Brushed Motor
Brand: SECORE
SKU: SC4279
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (113 reviews)

Minimum Order Quantity :	50	Price :	Negotiated The Price
Packaging Details :	393523cm / CTN	Delivery Time :	10-12 working days
Payment Terms :	D/P, T/T, Western Union, MoneyGram	Supply Ability :	30000pcs/month

Place of Origin:	CHINA, guangdong	Brand Name:	SECORE
Certification:	CE ROHS	Model Number:	SC4279

Detail Information
Diameter * Length:	42*78.5mm	Rated Voltage:	110-230V
Rated Speed:	13986rpm ±10%	Rated Torque:	1319g.cm
Rated Current:	1225mA Max	Rated Power:	190W
Stall Torque:	8648g.cm	Application:	Blender, Grinder
High Light:	190W High Voltage DC Motor , Grinder High Voltage DC Motor , 14000rpm DC Brushed Motor

Product Description

High Power 190W Brush Motor 220V Grinder Motor 14000rpm DC Brushed Motor

Main Features:

Model number	VOLTAGE	NO LOAD		AT MAXIMUM EFFICIENCY					STALL
	Nominal constant	SPEED	CURRENT	SPEED	CURRENT	TORQUE	Output	EFF.	TORQUE	CURRENT
	Volts	±10% r/min	mA	±10% r/min	mA	g.cm	W	%	g.cm	mA
SC4478	230V	16520	220	13986	1225	1319	190	67.2	8648	6800

190W High Voltage DC Motor 220V Grinder Motor 14000rpm DC Brushed Motor 0

Quality control process

1.Incoming inspection: The inspection shall be conducted according to the Requirements of the Incoming Inspection Specification or the product drawing
2.Monitoring and measurement of production process (self-inspection - inspection - batch production)
3.Final inspection and test
4.All inspectors must be trained and then put on duty
