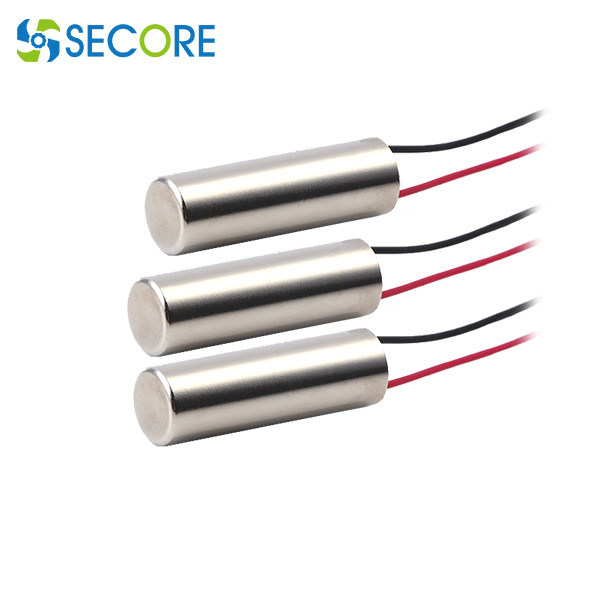

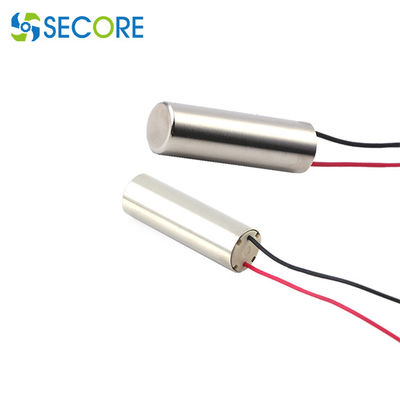

Micro Vibration Motor For Electric Toothbrush, Built-In Vibrator Coreless Motor

Name: Micro Vibration Motor For Electric Toothbrush, Built-In Vibrator Coreless Motor
Brand: SECORE
SKU: CL-716B
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (120 reviews)

Minimum Order Quantity :	500	Price :	Negotiated The Price
Packaging Details :	100pcs per carton or as request	Delivery Time :	10-12 working days
Payment Terms :	T/T, Western Union	Supply Ability :	40000pcs/month

Place of Origin:	Shenzhen, Guangdong	Brand Name:	SECORE
Certification:	CE ROHS	Model Number:	CL-716B

Detail Information
Rated Voltage:	3.7Vdc	Rated Current:	≤250mA
Rated Speed:	15500±15%	Starting Voltage:	1.8Vdc
Motor Type:	Coreless Brush Motor	Shaft End Play:	0.05-0.31mm
Built-in Load:	Essentric Vibrator	Application:	E-toothbrush, Kids Toy
High Light:	micro vibration motor , electric toobrush coreless motor , built-in vibrator coreless motor

Product Description

Micro Vibration Motor For Electric Toothbrush, Built-In Vibrator Coreless Motor

Technical parameters:

Rated voltage: 3.7VDC
Rated current:≤250mA
Rated speed: 15500±15%
Starting voltage: 1.8VDC
Shaft end play: 0.05-0.31mm
Load: R3.0*4.0 essentric vibrator

Model number	Operating Voltage range	VOLTAGE	NO LOAD		AT MAXIMUM EFFICIENCY				STALL
		RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE		TORQUE		CURRENT
		VDC	±12% r/min	mA	±12% r/min	mA	g.cm	mN.m	g.cm	mN.m	mA
CL-716	2.5-3.5	3.0	30000	31	24100	61	0.41	0.0393	2.01	0.197	320
CL-716	3.0-4.0	3.7	38000	11.00	33100	23	1.01	0.0981	7.61	0.745	100

Motor sizes:

Micro Vibration Motor For Electric Toothbrush, Built-In Vibrator Coreless Motor 0

Application cases:

Micro Vibration Motor For Electric Toothbrush, Built-In Vibrator Coreless Motor 1
