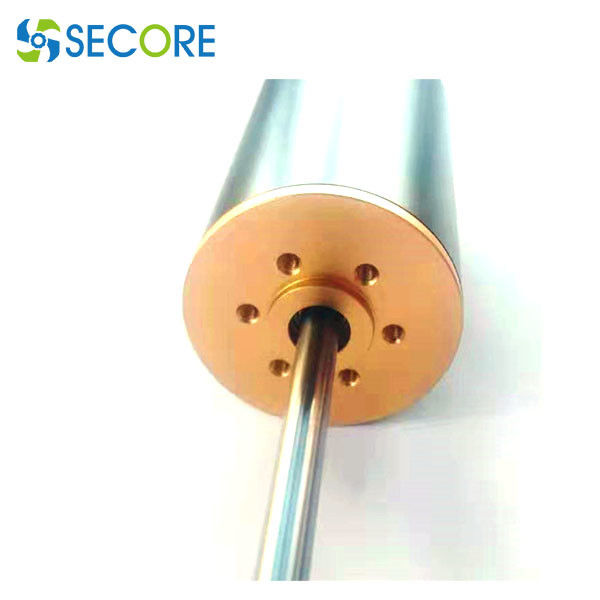

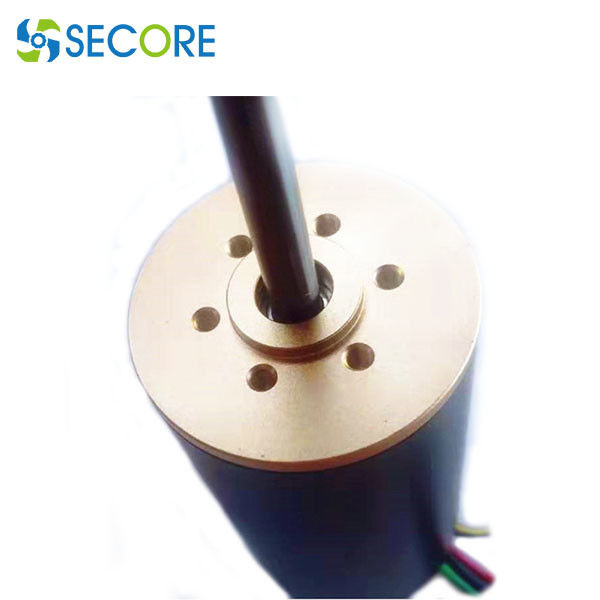

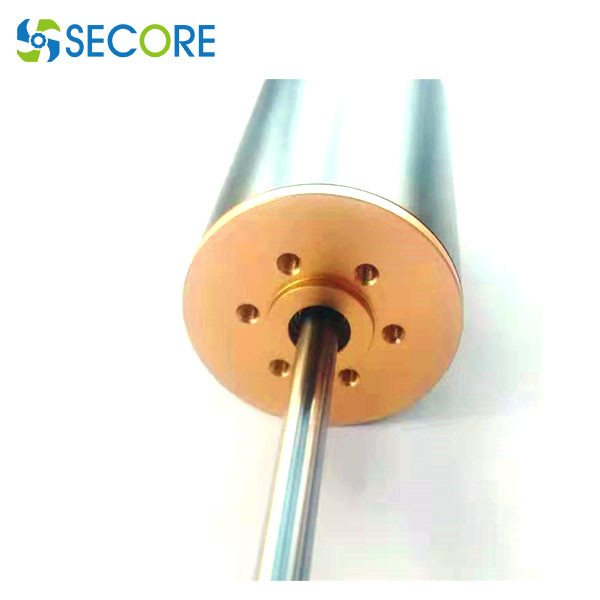

12000rpm PMDC Coreless Dc Motor 6mm Shaft For High Level Smart Device

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 20pcs per carton or as request Delivery Time : 7-10 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: SC-CL4370

Detail Information

Rated Voltage: 24V Rated Power: 150W
Rated Torque: 0.089N.m Rated Speed: 12000rpm
Rated Current: 8.8A Sizes( Diameter * Length ): 43mm * 70mm
Product Name: 43 Mm Coreless Motor, 4370 Coreless Bldc Motor Usage: Power Tool, Robot, High Precision Machine, Tattoo Pen
High Light:

PMDC Coreless Dc Motor

,

12000rpm Coreless Dc Motor

,

6mm Shaft DC Brushless Motor

Product Description

43mm*70mm Coreless Dc Motor Manufacturer For High Level Smart Device with Long Shaft and hall sensor


Product range :



Product type: Coreless PMDC Motor

Item name: DC Brush coreless motor, DC brushless motor,
Diameter size: 10mm -60mm as request
work voltage: 3V-48V as request
Free load speed: 2000-1000000rpm as request
power: 2w-800w as request

Technical parameter:

Rated voltage: 24V, no-load speed: 15600rpm, no-load current: 153mA, stall current: 79.03A, stall torque: 1.01Nm

Motor model no. SC-CL4370-1 SC-CL4370-2 SC-CL4370-3
At Nomimal
Nominal voltage V/DC 12 24 36
Nominal speed RPM 9200 17120 25720
Nominal current A 15.8 18.1 26.3
Nominal Torque mNm 154.4 189.2 273.1
Free Load
No load speed RPM 11500 21400 32150
No load current mA 266 330 650
At Max Efficiency
Max efficiency % 88.7 88.2 86.3
Speed RPM 10868 20116 30221
Current A 4.5 5.7 8.4
Torque mNm 42.5 56.8 81.9
At Max output power
Max output power W 232.4 530 1149.3
Speed RPM 5750 10700 3150
Current A 39.1 44.7 64.8
Torque mNm 386 473 682.8
At stall
current A 78 89 129
torque mNm 771.9 946.1 1365.5
Motor Constants
Terminal resistance 0.15 0.27 0.28
Terminal inductance mH 0.11 0.12 0.13
Torque constant mNm/A 9.93 10.67 10.64
Speed constant rpm/V 958.3 891.7 893.1
Speed/torque constant rpm/mNm 14.9 22.6 23.5
Mechanical time constant ms 6.2 9.4 9.8
Rotor inertia g.cm2 39.6 39.6 39.6
Number of pole pairs 1
Number of phases 3
weight of motor g 352
Typical noise level dB ≤45


Feature description:

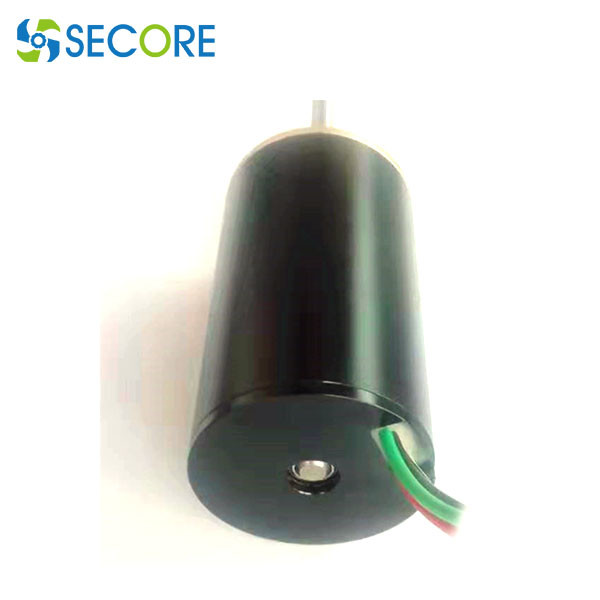

The shell can be painted with black, silver or other color

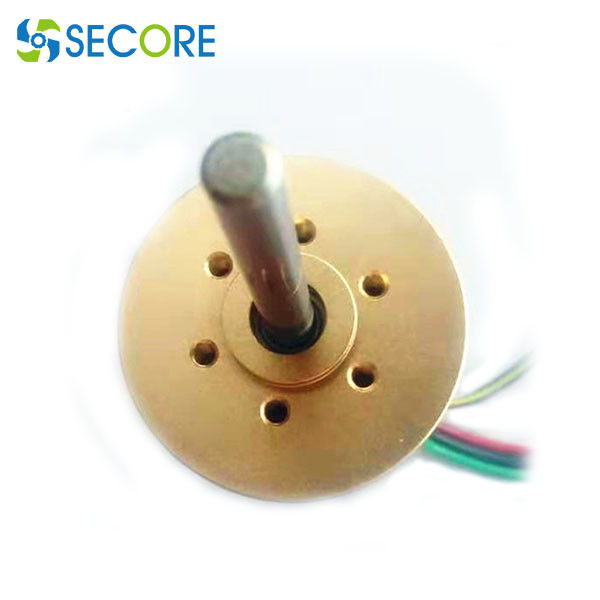

Single output shaft, front shaft diameter: 6mm, rear shaft can also be output shaft, shaft diameter can be customized.

Dimension:

12000rpm PMDC Coreless Dc Motor 6mm Shaft For High Level Smart Device 0
