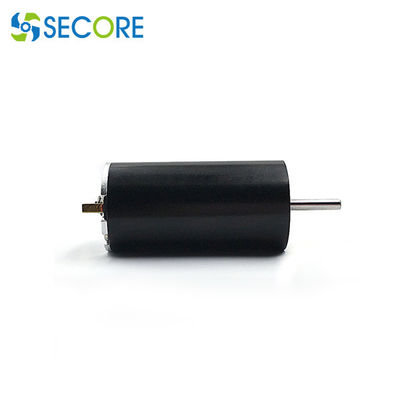

Graphic Brushed Coreless Dc Motor 7030rpm Dual Shaft Coreless Motor For Tattoo Machine

Name: Graphic Brushed Coreless Dc Motor 7030rpm Dual Shaft Coreless Motor For Tattoo Machine
Brand: SECORE
SKU: SC-CL3263
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (165 reviews)

Minimum Order Quantity :	100	Price :	Negotiated The Price
Packaging Details :	30pcs per carton or as request	Delivery Time :	7-10 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	Dongguan	Brand Name:	SECORE
Certification:	CE ROHS	Model Number:	SC-CL3263

Detail Information
Rated Voltage:	24V	Rated Speed:	7030rpm
Rated Torque:	40.2mN.m Or As Request	Efficiency:	84.3%
Rated Current:	1.461A Or As Request	Dimension:	3263mm ( Diameter Length )
Product Type:	Graphic Brush Motor Coreless, Dual Shaft Coreless Motor	Application:	Industrial Equipment, Household Appliances, Nail Guns, Tattoo Pen
High Light:	Graphic Brushed Coreless Dc Motor , Tattoo Machine Coreless Dc Motor , 7030rpm Dual Shaft Coreless Motor

Product Description

32*63 graphic brushed coreless dc motor, tailor-made high torque coreless motor with dual shaft for tattoo machine application

Coreless motor Features:

The stator winding adopts cylindrical winding, which has no cogging effect and extremely small torque fluctuation;
Built-in Hall sensor, easy to drive;
High-performance rare earth NdFeB magnet with extremely high power density;
Aluminum alloy shell, better heat dissipation, lower temperature rise;
Imported brand ball bearings ensure a life span of more than 10,000 hours;
Novel combined structure of end cover and fuselage to ensure installation accuracy;
Suitable for aerospace, defence and surveillance, power tools, medical equipment, servo control and various occasions.

Technical parameter:

Graphic Brushed Coreless Dc Motor 7030rpm Dual Shaft Coreless Motor For Tattoo Machine 0

Mounting sizes
