7570rpm 3.7V Coreless Brushed Motor 1625 Carbon Brush Motor
Contact Person : Enya
Phone Number : 86-18988788151
WhatsApp : +8618988788151
| Minimum Order Quantity : | 100 | Price : | Negotiated The Price |
|---|---|---|---|
| Packaging Details : | 100pcs per carton or as request | Delivery Time : | 7-10 working days |
| Payment Terms : | T/T, D/A | Supply Ability : | 100000pcs per month |
| Place of Origin: | Dongguan | Brand Name: | SECORE |
|---|---|---|---|
| Certification: | CE ROHS | Model Number: | SC-CL2864-GB |
|
Detail Information |
|||
| Rated Voltage: | 12V Or To 36V | Rated Power: | As Per Request |
|---|---|---|---|
| Rated Torque: | 64.3mN.m Or As Request | Rated Speed: | 7000rpm |
| Rated Current: | 4.44A Or As Request | Sizes( Diameter * Length ): | 35 * 71mm |
| Product Name: | 35mm Coreless Motor, 3571 Coreless Dc Motor | Usage: | Power Tool, Robot, High Precision Machine, Tattoo Pen |
| Highlight: | Low Noise Brushless Coreless Motor,Rapid Acceleration Brushless Coreless Motor,Ironless Mini Coreless Motor |
||
Product Description

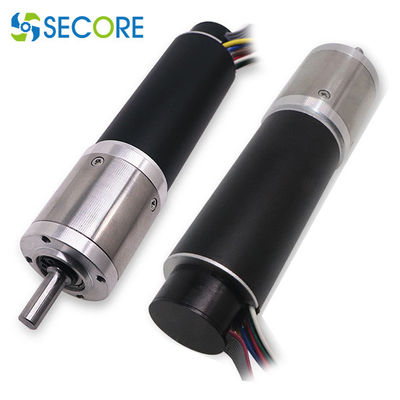

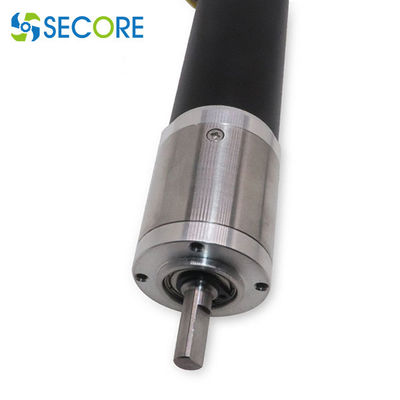

Low Noise Long Lifetime Brushless Coreless Motor 28mm*64mm, Rapid Acceleration and Deceleration Ironless brushless Motor
Technical parameter:
| MODEL | VOLTAGE | AT NOMINAL | FREE LOAD | |||
| RATED VOLTAGE | SPEED | CURRENT | TORQUE | SPEED | CURRENT | |
| r/min | A | mNm | r/min | mA | ||
| CL2864 | 6 | 6675 | 2.92 | 19.63 | 7500 | 320 |
| CL2864 | 12 | 6497 | 1.95 | 26.46 | 7300 | 240 |
| CL2864 | 24 | 6497 | 1.11 | 32.71 | 7300 | 64 |
| MODEL | VOLTAGE | AT MAXIMUM EFFICIENCY | At Max output power | AT STALL | |||||||
| RATED VOLTAGE | MAX EFFICIENCY |
SPEED | CURRENT | TORQUE | Max output power |
Speed(RPM) | Current | Torque | CURRENT | TORQUE | |
| % | r/min | A | mNm | W | r/min | A | mNm | A | mNm | ||
| CL2864 | 6 | 78.2 | 6713 | 2.806 | 18.74 | 35.05 | 3750 | 12.16 | 89.2 | 24 | 178.5 |
| CL2864 | 12 | 76.9 | 6497.0 | 1.952 | 26.46 | 45.97 | 3650.0 | 8.02 | 120.3 | 15.8 | 240.5 |
| CL2864 | 24 | 84.3 | 6753.0 | 0.779 | 22.3 | 56.83 | 3650.0 | 4.83 | 297.4 | 9.6 | 297.4 |
| Motor Constants | Ω | 0.25 | 0.76 | 2.5 |
| Terminal resistance | mH | 0.03 | 0.09 | 0.28 |
| Torque constant | mNm/A | 7.54 | 15.46 | 31.19 |
| Speed constant | rpm/V | 1250 | 608.3 | 304.2 |
| Speed/torque constant | rpm/mNm | 42 | 30.3 | 24.5 |
| Mechanical time constant | ms | 7.02 | 6.56 | 4.97 |
| Rotor inertia | g.cm² | 15.94 | 20.63 | 19.32 |
| Number of pole pairs | 1 | |||
| Number of phases | 7 | |||
| weight of motor | g | 200 | ||
| Typical noise level | dB | ≤45 | ||
