7000rpm 2863 Carbon Brush Coreless Motor For Intelligent Robot

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 100pcs per carton or as request Delivery Time : 7-10 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Shenzhen Brand Name: SECORE
Certification: CE ROHS Model Number: SC-CL2863

Detail Information

Rated Voltage: 12V Rated Power: 18W
Rated Torque: 26.46mN.m Or As Request Rated Speed: 7000rpm
Rated Current: 1.95A Or As Request Sizes( Diameter * Length ): 28*63mm
Product Name: 28mm Coreless Motor Re28, 2863 Coreless Brush Motor Usage: Smart Robot, Intelligent Robot, Robot Arm, Power Tool
High Light:

2863 Carbon Brush Coreless Motor

,

Robot Carbon Brush Coreless Motor

,

7000rpm Coreless Brushed Motor

Product Description

2863 Carbon Brush Communitated Coreless EC Motor For Intelligent Robot, Alternative RE28


Technical parameter:



Motor data Motor model no.
Values at rated voltage SC-CL2863-1 SC-CL2863-2 SC-CL2863-3
At Nomimal Nominal voltage V/DC 6 12 24
Nominal speed RPM 6675 6497 6497
Nominal current A 2.92 1.95 1.11
Nominal Torque mNm 19.63 26.46 32.71
Free load No load speed RPM 7500 7300 7300
No load current mA 320 240 64
At Max Efficiency Max efficiency % 78.2 76.9 84.3
Speed RPM 6713 6497 6753
Current A 2.806 1.952 0.779
Torque mNm 18.7 26.5 22.3
At Max output power Max output power W 35 46 56.8
Speed RPM 3750 3650 3650
Current A 12.2 8 4.8
Torque mNm 89.2 120.3 148.7
At Stall current A 24 15.8 9.6
torque mNm 178.5 240.5 297.4
Dimension:

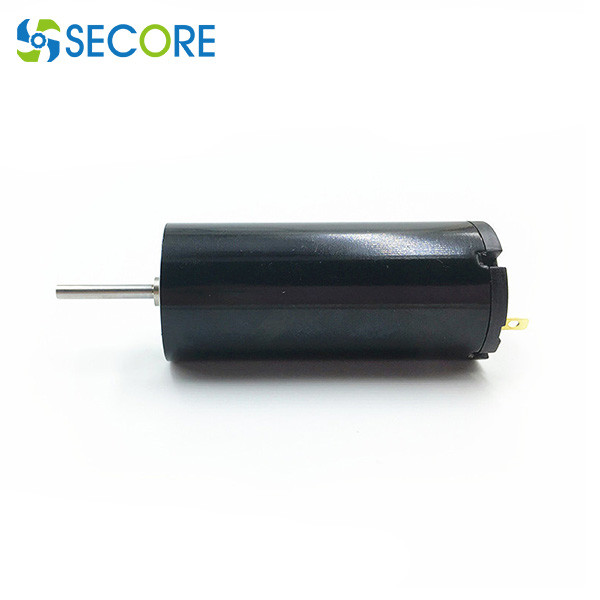

 7000rpm 2863 Carbon Brush Coreless Motor For Intelligent Robot 0

Motor performance curve

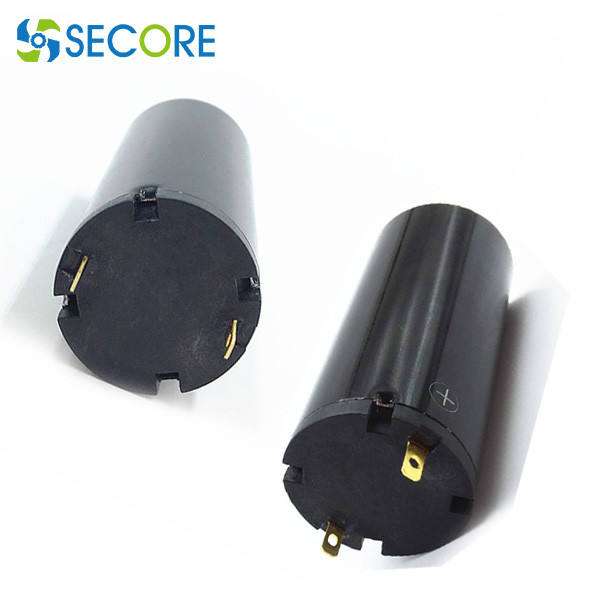

7000rpm 2863 Carbon Brush Coreless Motor For Intelligent Robot 1


The Advantage of Coreless motor



1. the elimination of iron significantly reduces the mass and inertia of the rotor
2. rapid acceleration and deceleration rates
3. no iron losses
4. significantly higher efficiency (up to 90 percent)
5. reduced sparking, longer lifetime
6. lower electromagnetic interference (EMI)
7. no motor cogging
8. extremely low torque ripple
9. smooth motor rotation with minimal vibration and noise
10. Compact design offers a high power-to-size ratio
11. extremely low current consumption at no-load condition
