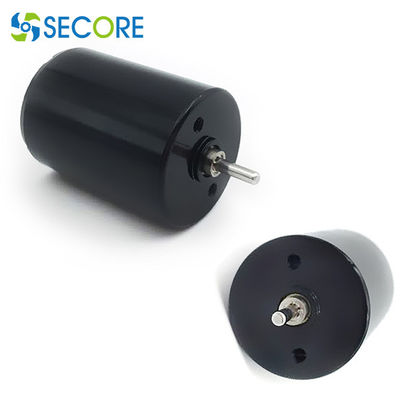

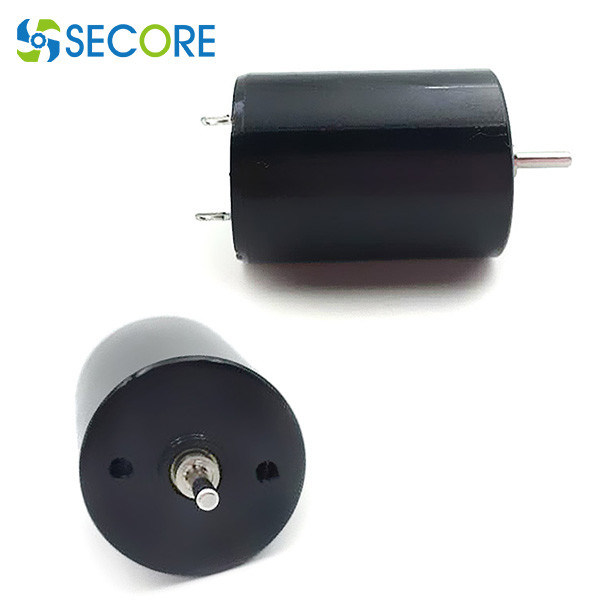

Name: Medical Device 0.88A Coreless Brushed Motor 6V 12V 4.2W 22mm Diameter
Brand: SECORE
SKU: SC-CL2230
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (151 reviews)

Detail Information
Rated Voltage:	12V	Rated Power:	4.2W
Rated Torque:	3.91mN.m Or As Request	Rated Speed:	10000rpm
Rated Current:	0.88A Or As Request	Dimension:	22*30mm
Product Name:	22mm High-end Device Use Coreless Motor, 2230 Coreless Motor	Usage:	Medical Device, High-end Power Tool, High Quality Brush Motor
High Light:	Medical Device Coreless Brushed Motor , 0.88A Coreless Brushed Motor , 4.2W Coreless Bldc Motor

Product Description

6V 12V Coreless Brushed Motor 22mm Diameter, Medical Device Use Coreless Motor

Technical parameter:

MODEL	VOLTAGE	AT NOMINAL			FREE LOAD
	RATED VOLTAGE	SPEED	CURRENT	TORQUE	SPEED	CURRENT
	RATED VOLTAGE	r/min	A	mNm	r/min	mA
CL2230	6	9492	0.88	3.91	11300	60
CL2230	12	10248	0.63	5.22	12200	65
CL2230	18	9234	0.42	5.79	10800	45
CL2230	24	9405	0.29	5.26	11000	30

MODEL	VOLTAGE	AT MAXIMUM EFFICIENCY				At Max output power				AT STALL
	RATED VOLTAGE	MAX EFFICIENCY	SPEED	CURRENT	TORQUE	Max output power	Speed(RPM)	Current	Torque	CURRENT	TORQUE
	RATED VOLTAGE	%	r/min	A	mNm	W	r/min	A	mNm	A	mNm
CL2230	6	74.97	9944	0.679	2.93	7.23	5650	2.55	12.22	5	24.45
CL2230	12	74.93	10736.0	0.489	3.91	10.41	6100	1.83	16.3	3.6	32.6
CL2230	18	75.42	9558.0	0.339	4.6	11.3	5400	1.32	19.98	2.6	39.96
CL2230	24	75.85	9735	0.234	4.17	10.44	5500	0.92	18.13	1.8	36.26

		6V	12V	18V	24V
Motor Constants	Ω	1.2	3.33	6.92	13.33
Terminal resistance	mH	0.19	0.403	0.85	1.6
Torque constant	mNm/A	4.98	9.22	15.64	20.49
Speed constant	rpm/V	1883.3	1016.7	600	458.3
Speed/torque constant	rpm/mNm	462.3	374.3	270.5	303.5
Mechanical time constant	ms	13.05	11.08	7.9	9.09
Rotor inertia	g.cm²	2.7	2.83	2.79	2.54
Number of pole pairs	1
Number of phases	5
weight of motor	g	54
Typical noise level	dB	≤42

Dimension:

Features of Coreless DC motor

Built-in Hall sensor, easy to drive;
The stator winding adopts cylindrical winding, which has no cogging effect and extremely small torque fluctuation;
High-performance rare earth NdFeB magnet with extremely high power density;
Aluminum alloy shell, better heat dissipation, lower temperature rise;
Imported brand ball bearings ensure a life span of more than 10,000 hours;
Novel combined structure of end cover and fuselage to ensure installation accuracy;
Suitable for power tools, medical equipment, servo control and various occasions.

Tag:

Product Details:
Place of Origin:	Shenzhen
Brand Name:	SECORE
Certification:	CE ROHS CCC VDE
Model Number:	SC-CL2230
Payment & Shipping Terms:
Minimum Order Quantity:	200
Price:	Negotiated The Price
Packaging Details:	100pcs per carton or as request
Delivery Time:	6-10 working days
Payment Terms:	T/T, D/A
Supply Ability:	100000pcs per month
