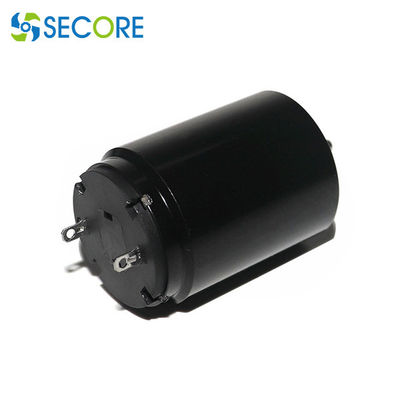

PWM VDE High Speed Coreless Motor Low Noise 6V 24V 9500rpm For Kids Toy

Minimum Order Quantity :	200	Price :	Negotiated The Price
Packaging Details :	60pcs per carton or as request	Delivery Time :	6-10 working days
Payment Terms :	T/T, D/A	Supply Ability :	50000pcs per month

Place of Origin:	Dongguan	Brand Name:	SECORE
Certification:	CE ISO9001 CCC VDE	Model Number:	SC-CL2230

Detail Information
Rated Voltage:	6V	Rated Power:	2.95W
Rated Torque:	0.13mN.m Or As Request	Rated Speed:	9500rpm
Rated Current:	0.023A Or As Request	SIZE:	22mm30mm ( Diameter Length )
Product Name:	22mm*30mm Motor, Brush Motor Without Iron	Usage:	Battery-powered Tools, Tattoo Pen, High-end Power Tool
High Light:	VDE High Speed Coreless Motor , PWM High Speed Coreless Motor , 9500rpm Dc Brushless Motor

Product Description

6V 24V High Speed 2230 Coreless Motor With Low Noise And Longer Running Time For Kids Train

Technical parameter:

Motor data			Motor model no.
Values at rated voltage			CL2230	CL2230	CL2230	CL2230
At Nomimal	Nominal voltage	V/DC	6	12	18	24
	Nominal speed	RPM	9490	10250	9230	9400
	Nominal current	A	0.85	0.65	0.43	0.298
	Nominal Torque	mNm	3.92	5.23	5.8	5.27
Free load	No load speed	RPM	11320	12250	10810	11100
Free load	No load current	mA	91	66	46	31
At Max Efficiency	Max efficiency	%	74.98	74.92	75.43	75.86
	Speed	RPM	9945	10735	9556	9736
	Current	A	0.68	0.49	0.34	0.234
	Torque	mNm	2.94	3.92	4.7	4.18
At Max output power	Max output power	W	7.24	10.42	11.4	10.45
	Speed	RPM	5655	6110	5410	5520
	Current	A	2.56	1.84	1.33	0.93
	Torque	mNm	12.23	16.4	19.99	18.14
At Stall	current	A	5	3.7	2.7	1.9
At Stall	torque	mNm	24.46	32.7	39.98	36.27

Motor constants	Motor Constants	Ω	1.2	3.34	6.93	13.34
	Terminal resistance	mH	0.192	0.404	0.86	1.7
	Torque constant	mNm/A	4.99	9.23	15.65	20.5
	Speed constant	rpm/V	1883.5	1016.8	600.2	458.4
	Speed/torque constant	rpm/mNm	462.3	374.3	271.4	303.5
	Mechanical time constant	ms	13.06	11.09	7.92	9.1
	Rotor inertia	g.cm²	2.72	2.84	2.8	2.55
	Number of pole pairs	1
	Number of phases	5
	weight of motor	g		54
	Typical noise level	dB		≤42

Dimension:

Motor Selection:

1. Size I Space: Available space for the motor.

2. Rated parameters: Rated load , rated speed , rated current , direction of rotation etc.

3. Output requirement: Stable or varying loading, stable or varying speed, shaft and driving system (gearbox, propeller etc.), start and stop condition, clockwise or anti-clockwise rotation.

4. Power source: Battery, AC Supply, PWM etc.

5. Working environment: Operating temperature, humidity, rain/dust/sand/degree of saltines, vibration (if installed in moving vehicle), audible noise,Electromagnetic interference, safety and other protection requirement.
