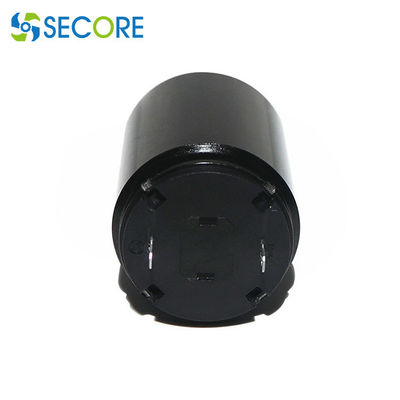

Smooth Running Coreless Dc Motor 22mm 9230rpm For Precision Machine

Product Details:
Place of Origin: Dongguan
Brand Name: SECORE
Certification: CE ISO9001 CCC VDE
Model Number: SC-CL2230
Payment & Shipping Terms:
Minimum Order Quantity: 200
Price: Negotiated The Price
Packaging Details: 50pcs per carton or as request
Delivery Time: 6-10 working days
Payment Terms: T/T, D/A
Supply Ability: 50000pcs per month

Detail Information

Rated Voltage: 18V Rated Power: 9.6W
Rated Torque: 5.8mN.m Or As Request Rated Speed: 9230rpm
Rated Current: 0.43A Or As Request Mounting Size: 22mm*30mm ( Diameter * Length )
Product Name: 2230 Brush Motor, Brush Coreless Motor Without Iron Application: Pump, Tattoo Gun, Tattoo Machine, Tattoo Device, Tattoo Pen
High Light:

Smooth Running Coreless Dc Motor

,

Precision Machine Coreless Dc Motor

,

9230rpm Coreless Bldc Motor

Product Description

22mm Smooth Running Mini Coreless Dc Motor For Precision Machine Tattoo Rotary Gun


Technical parameter:



Motor data Motor model no.
Values at rated voltage CL2230
At Nomimal Nominal voltage V/DC 18
Nominal speed RPM 9240
Nominal current A 0.44
Nominal Torque mNm 5.81
Free load No load speed RPM 10900
No load current mA 47
At Max Efficiency Max efficiency % 75.5
Speed RPM 9560
Current A 0.33
Torque mNm 4.8
At Max output power Max output power W 11.6
Speed RPM 5420
Current A 1.34
Torque mNm 20.01
At Stall current A 2.8
torque mNm 39.7

Motor constants Motor Constants 6.94
Terminal resistance mH 0.88
Torque constant mNm/A 15.76
Speed constant rpm/V 600.5
Speed/torque constant rpm/mNm 272.5
Mechanical time constant ms 7.93
Rotor inertia g.cm² 2.9





Dimension:

Smooth Running Coreless Dc Motor 22mm 9230rpm For Precision Machine 0

Smooth Running Coreless Dc Motor 22mm 9230rpm For Precision Machine 1

Coreless motor Advantages:

1. the elimination of iron significantly reduces the mass and inertia of the rotor
2. rapid acceleration and deceleration rates
3. no iron losses
4. significantly higher efficiency (up to 90 percent)
5. reduced sparking, longer lifetime
6. lower electromagnetic interference (EMI)
7. no motor cogging
8. extremely low torque ripple
9. smooth motor rotation with minimal vibration and noise
10. Compact design offers a high power-to-size ratio
11. extremely low current consumption at no-load condition

Parts of Application

Smooth Running Coreless Dc Motor 22mm 9230rpm For Precision Machine 2


Smooth Running Coreless Dc Motor 22mm 9230rpm For Precision Machine 3

Smooth Running Coreless Dc Motor 22mm 9230rpm For Precision Machine 4
Smooth Running Coreless Dc Motor 22mm 9230rpm For Precision Machine 5
