High Torque 10rpm Dc Worm Gear Motor Self Locking With M6 Dual Screw Shafts

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 100pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Shenzhen Brand Name: SECORE
Certification: ISO9001 Model Number: SC370-WG4632

Detail Information

No-load Speed: 10rpm No-load Current: 0.1A
Rated Voltage: 6V Loaded Speed: 7rpm
Rated Torque: 22.5kg.cm Loaded Current: 0.6A
Stall Torque: 25kg.cm Stall Current: 1.8A
Application: Cooking Machine, Intelligent Lock, Ptz Camera Product Type: Double Shaft Gear Motor, Worm Gear Motor 3246
High Light:

High Torque Dc Worm Gear Motor

,

10rpm Dc Worm Gear Motor

,

M6 Shafts Screw Gear Motor

Product Description

3246 Small Self-Locking dual shaft Worm Gear Motor With M6 Dual Screw Shafts

Electrical specification:



Brand Secore Motor
Model SC370-WG4632
Features Power-off self-locking, high torque output
Shaft length 50mm D shaft length 10mm screw M6
Shaft diameter 10mm D shaft
Voltage DC 6V-24V
Weight 150g, varies from different gear ratio
Application cases Smart self-balancing two-wheeled scooter, smart tracking car, smart home appliances, robots, camera rocker, electric tape cutter





Voltage Rated V DC6V
Reducer Ratio i:1 40 65 150 200 260 340 600 1000
Size L mm L46*W32*H22
No Load Speed rpm 150 90 40 30 23 18 10 6
Current A ≤0.1 ≤0.1 ≤0.1 ≤0.1 ≤0.1 ≤0.1 ≤0.1 ≤0.1
Rated load Speed rpm 100 70 30 22 17 13 7 4
Torque Kgf.cm 1.5 2.4 5.6 7.4 10 12 22.5 25
Current A ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6
Stall Torque Kgf.cm 6.4 10 24 25 25 25 25 25
Current A 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8

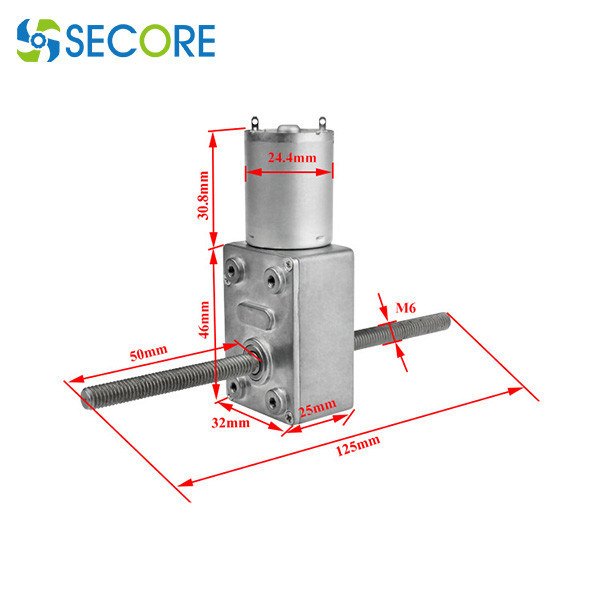

Mechanical parameters:



High Torque 10rpm Dc Worm Gear Motor Self Locking With M6 Dual Screw Shafts 0

High Torque 10rpm Dc Worm Gear Motor Self Locking With M6 Dual Screw Shafts 1



High Torque 10rpm Dc Worm Gear Motor Self Locking With M6 Dual Screw Shafts 2

High Torque 10rpm Dc Worm Gear Motor Self Locking With M6 Dual Screw Shafts 3

High Torque 10rpm Dc Worm Gear Motor Self Locking With M6 Dual Screw Shafts 4



High Torque 10rpm Dc Worm Gear Motor Self Locking With M6 Dual Screw Shafts 5



High Torque 10rpm Dc Worm Gear Motor Self Locking With M6 Dual Screw Shafts 6

High Torque 10rpm Dc Worm Gear Motor Self Locking With M6 Dual Screw Shafts 7
