51mm Shaft DC Worm Gear Motor 200RPM 12 Volt Bldc With Dual Ball Bearing

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 15-20 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Shenzhen Brand Name: SECORE
Certification: CE ROHS Model Number: SC5840

Detail Information

Speed: 200RPM Or Customized Rated Voltage: 12V
Rated Torque: 5N.m Motor Sizes: 31*57mm
Gear Box Dimension: 40*58mm Motor Type: Dual Ball Bearing Worm Gear Motor
Product Nam20rpm Gear Motor, 60rpm Bldc Worm Gear Motore: 200rpm Worm Gear Motor, Bldc Worm Gearbox Motor Typical Application: Robot, Billboard, Drying Rack, Coffee Machine, Range Hood
High Light:

51mm Shaft DC Worm Gear Motor

,

DC Worm Gear Motor 200RPM

,

Bldc 12 Volt Worm Gear Motor

Product Description

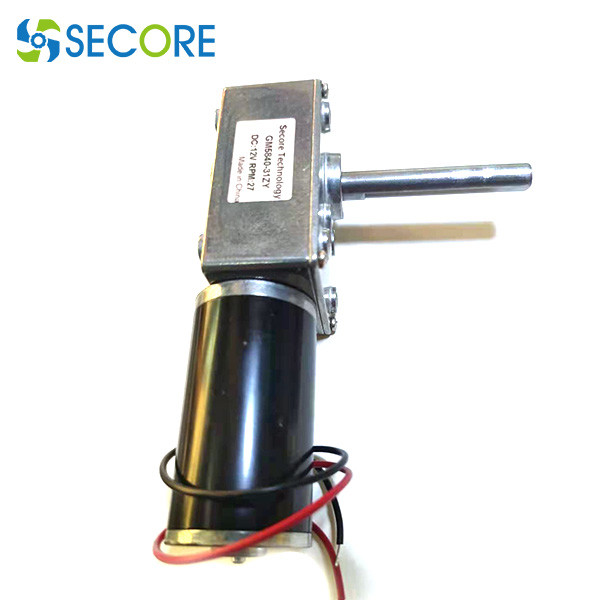

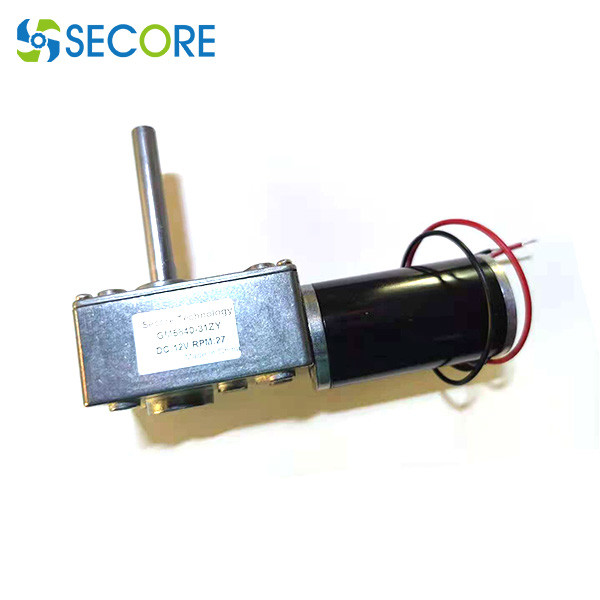

12V 51mm Long Shaft Self-Locking Worm Gear Motor With Dual Ball Bearing

Secore Motor provides customized service of below technical parameters:



Voltage Rated V 12V
Reducer Ratio i:1 17 31 50 100 200 290 505 670
Size L mm W40*L58*H36
No Load Speed rpm 470 260 160 80 40 27 16 12
Current A 0.35 0.35 0.35 0.35 0.35 0.35 0.35 0.35
Rated load Speed rpm 380 200 130 60 30 20 12 9
Torque Kgf.cm 2.7 5 8 16 32 46 70 70
Current A 1.6 1.6 1.6 1.6 1.6 1.6 1.6
Momentary max torque Kgf.cm 4.4 8 13 25 51 70 70 70
stall current A 6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.5




Motor mounting sizes and shafts options:



51mm Shaft DC Worm Gear Motor 200RPM 12 Volt Bldc With Dual Ball Bearing 0



51mm Shaft DC Worm Gear Motor 200RPM 12 Volt Bldc With Dual Ball Bearing 1



51mm Shaft DC Worm Gear Motor 200RPM 12 Volt Bldc With Dual Ball Bearing 2
