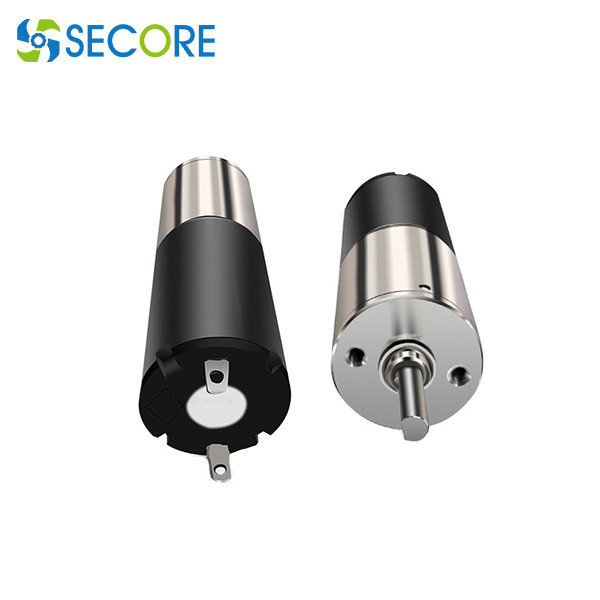

Dentist Device Coreless Brushed Motor 6mA Planetary 11000rpm

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 100pcs per carton or as request Delivery Time : 7-10 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Dongguan Brand Name: SECORE
Certification: CE ROHS Model Number: SC-CLb2864-GB

Detail Information

Rated Voltage: 24V Or As Request Rated Power: 4.3W
Rated Torque: 1.29mN.m Or As Request Free Load Speed: 11000rpm
Rated Current: 0.07A Or As Request Sizes ( Diameter * Length ): 16*26mm Motor
Product Name: 1625 Coreless Gear Motor, Lock Planetary Gear Motor Usage: Lock, Power Tool, Robot, High Precision Machine, Tattoo Pen
High Light:

Dentist Device Coreless Brushed Motor

,

6mA Coreless Brushed Motor

,

Planetary Coreless Gear Motor

Product Description

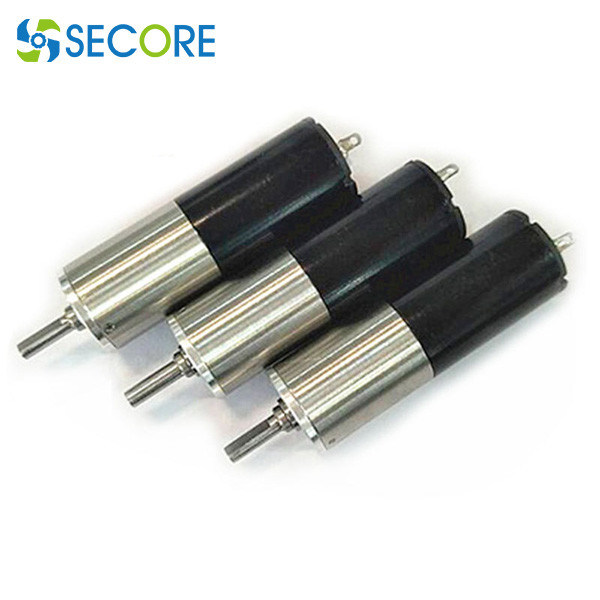

16mm Coreless Brush Motor, Dentist Device Planetary Coreless Gear Motor
Technical parameter:


Rated voltage: 24V, no-load speed: 11000rpm, no-load current: 6mA, stall current: 0.74A, stall torque: 15.3mNm

Motor model no. CL1625-1 CL1625-2 CL1625-3 CL1625-4
At Nomimal
Rated voltage V/DC 3.7 6 12 24
Rated speed RPM 6800 7840 8640 8800
Rated current A 0.67 0.5 0.27 0.15
Rated Torque mNm 2.5 2.8 2.7 3
Free Load
Free load speed RPM 8500 9800 10800 11000
Free load current A 0.05 0.02 0.015 0.006
At Max Efficiency
Max efficiency % 76 83 79 83
Speed RPM 7566 8968 9775 10066
Current A 0.39 0.22 0.14 0.07
Torque mNm 1.39 1.19 1.28 1.29
At Max output power
Max output power W 2.82 3.59 3.81 4.37
Speed RPM 4250 4900 5400 5500
Current A 1.6 1.23 0.66 0.37
Torque mNm 6.34 6.99 6.74 7.58
At stall
current A 3.15 2.43 1.3 0.74
torque mNm 12.7 14.1 13.6 15.3

Dimension:

Dentist Device Coreless Brushed Motor 6mA Planetary 11000rpm 0



Product type:Brush dc motor, Brushless dc motor
Diameter: 10mm-60mm
Working voltage: 3V-48V
Speed no-load: 2000---100000RPM
Power: 2W-800W
Production mode: Our product is a customized type, which is tailored to the needs of customers, they are produced in order mode;
Motor Selection: Provide original version or customized drawings. Welcome to contact sales staff to understand basic performance parameters and determine the specifications and models suitable for customers;
Product color: the regular color is black or silver, if you need to customize other colors, please specify in advance;
Equip with: Reducer, encoder, brake

 Application

 Dentist Device Coreless Brushed Motor 6mA Planetary 11000rpm 1
