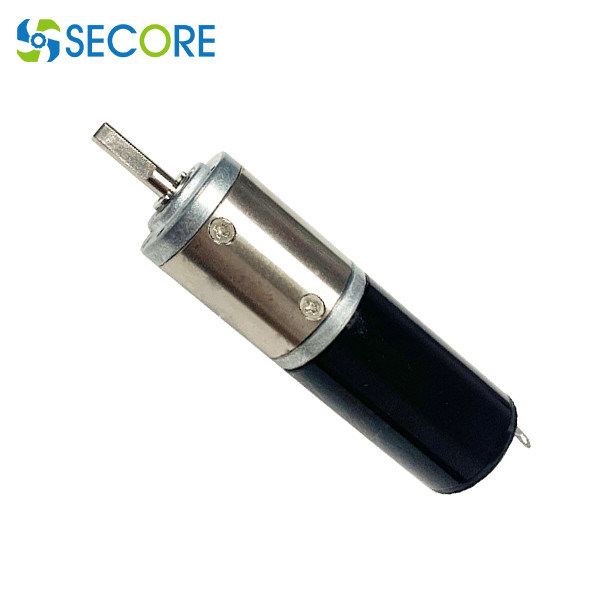

22mm Brush Coreless Dc Motor CW CCW 4.8W With High Efficiency

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 100pcs per carton or as request Delivery Time : 7-10 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Dongguan Brand Name: SECORE
Certification: CE ROHS Model Number: SC-CL2225-GB

Detail Information

Rated Voltage: 12V Or As Request Rated Power: 4.8W
Rated Torque: 15kg.cm Or As Request Free Load Speed: 24rpm
Rated Current: 60mA Or As Request Motor Size: 22*25mm Or 22*32mm
Product Name: 22mm Dc Gear Motor, 24rpm Brush Coreless Motor Usage: 5G Antenna Station, Lock, Ptz Camera, Vending Machine
High Light:

22mm Brush Coreless Dc Motor

,

CCW Brush Coreless Dc Motor

,

4.8W Brushed Coreless Motor

Product Description

Mirco 22mm High Quality Brush Coreless Dc Motor CW CCW With 80% High Efficiency


Brush DC Motor parameter:


Motor Model number RATED Voltage NO LOAD AT MAXIMUM EFFICIENCY Output Power Efficiency STALL dia*L1
SPEED CURRENT SPEED TORQUE CURRENT TORQUE CURRENT
VDC ±10% r/min mA ±10% r/min g.cm mA W % g.cm A mm
SC-CL-2225 6 4900 35 4040 20 200 0.85 70 115 1 22*25
SC-CL-2225 12 10200 42 8360 50 480 4.4 78 275 2.5
SC-CL-2225 12 10500 35 9200 50 500 4.8 83 400 3.7
SC-CL-2232 3 6500 114 5550 50 1240 2.9 80 340 7.9 22*32
SC-CL-2232 6 6300 51 5100 67 800 5.8 79 360 4
SC-CL-2232 12 8630 45 7385 73 600 5.6 80 500 3.8
SC-CL-2232 24 6100 20 4630 85 250 4.1 74 340 0.96
SC-CL-2232 24 9200 36 8000 73 320 6.1 80 560 62.4

22mm Brush Coreless Dc Motor CW CCW 4.8W With High Efficiency 0


Motor type Coreless brush motor
brush struction carbon brush motor gear hole diameter θ2
Main output performance Relational express
No load speed (rpm) n=n1/i
(n1=motor free load speed, i=ratio)
load torque (g.cm) T=T1*i*η
(T1=motor torque, i=ratio, η=gearbox efficiency )
load speed (rpm) n=n2/i
(n2=motor load speed, i=ratio )

 22mm Brush Coreless Dc Motor CW CCW 4.8W With High Efficiency 1
stage gear ratio gearbox length rated torque short-time torque efficiency
1 3.71 4.29 5.18 21.8 80-300g.cm 2kg.cm 94%
2 13.73 15.88 19.2 27.2 0.5-2kg.cm 3kg.cm 88%
18.37 22.21 26.85
3 50.9 58.86 71.17 32.6 1.5-3kg.cm 8kg.cm 83%
68.07 82.3 99.51
78.72 95.18 115.08
4 188.61 218.12 263.73 38 3-8kg.cm 15kg.cm 78%
252.25 304.99 368.76
291.72 352.81 426.46
515.63 337.35 407.89
493.18 596.3 720.98
5 698.99 808.31 977.36 43.4 3-8kg.cm 15kg.cm 73%
934.81 1130.27 1366.60
1081.07 1307.11 1580.41
1910.86 1250.2 1511.61
1827.68 2209.83 2672.01
1445.8 1748.12 2113.63
2555.57 3089.91 3735.98


 Application

Coreless DC motors are ideal for a myriad of dynamic applications, ranging from automotive systems, wire tensioning systems, microscopes and electric screwdrivers, tattoo machines, golf caddies and massage chairs. With a coreless motor, the possibilities for designers are endless. It includes robotic projects like small positioning and pan/tilt systems. Medical instruments such as prosthetics, insulin pumps, X-ray machines and laboratory equipment, also benefit from the use of coreless motors. Besides, there are numerous applications in particularly demanding sectors such as aerospace, defence and surveillance.
