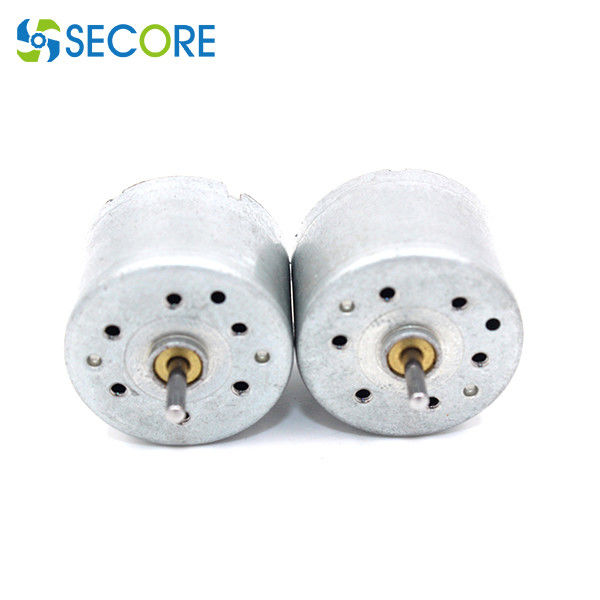

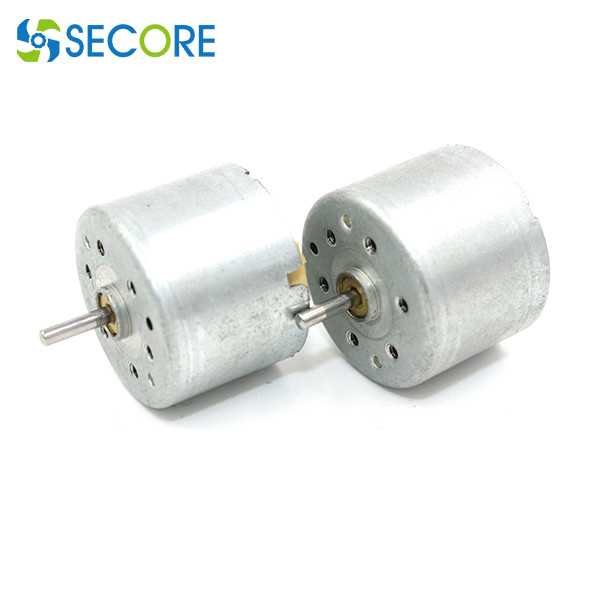

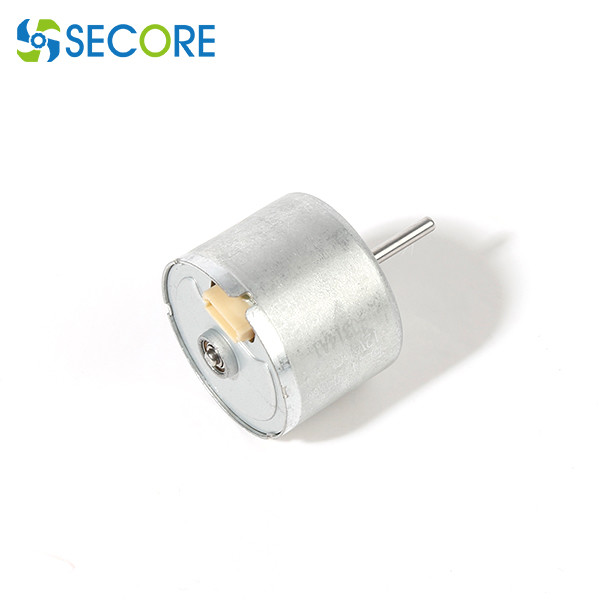

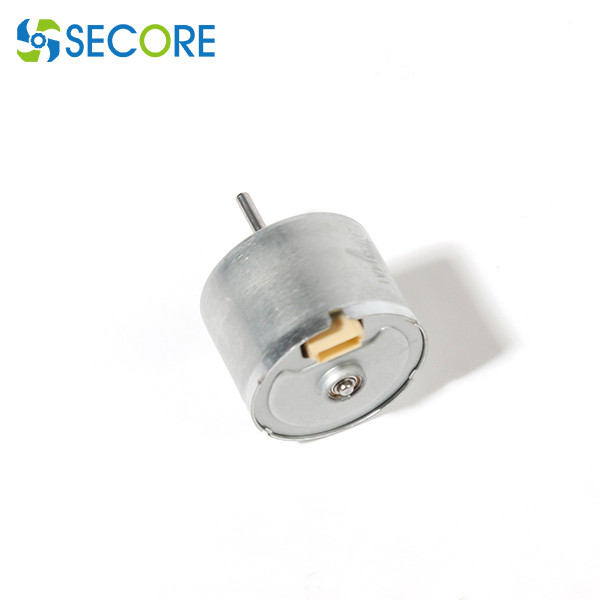

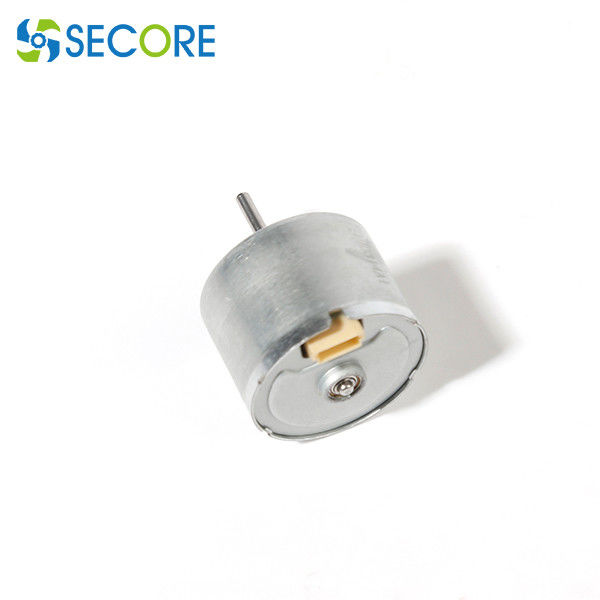

24*18mm Micro BLDC Motor , 7000RPM 12V 24V 6V Brushless DC Motor

Product Description

6V 12V 24V 24*18mm BLDC Brushless Electric Motor 7000RPM For Water Pump

Product Information:

Size: φ24.0* 18.0mm

Built-in driver

PWM pulse wide speed range

Clockwise/counter-clockwise rotation

FG speed feedback signal

Low EMC

Low noise

Long life: 20000hrs Min.

Over-current protection

Over-voltage protection

Under-voltage protection

OEM and ODM orders are welcome

The design can be customized

Generally select the appropriate power, voltage, speed, torque and body size according to the actual situation (load, structure size, etc.), and then match the brushless drive according to the specific parameters of the selected DC brushless motor.

The parameters are: DC power supply voltage, rated output power, rated load torque, rated operating speed and the direction of rotation of the brushless DC motor: clockwise, counterclockwise or both are required, and the continuous duty cycle of the motor can be in accordance with a certain time operation, the environment that the DC brushless motor is adapted to: indoor, outdoor, ocean, high pressure, high temperature, high humidity, corrosive gas, the structure of the flange has two types of structure, square and round, and the length of the body

1.When selecting the motor model, you should first select the correct voltage, and select the rated voltage according to the customer's needs to select the brushless drive voltage parameters. Note that the voltage used should not exceed the range specified by the brushless drive during no-load and full-load processes.

2. Select the peak current of the brushless drive. The method of selecting the peak current is to know the rated input current of the DC brushless motor, and the peak current is greater than or equal to 2 times the rated current.

3. Choose according to the working environment (such as temperature, high humidity, etc.). The low temperature of the brushless DC motor cannot be lower than -20℃, and the high temperature can reach 60℃. Waterproof treatment can also be achieved.

4, another important point is the requirement of power supply insulation. In order to ensure the normal operation of the brushless drive, between the Hall ground wire of the DC brushless motor and the DC brushless motor winding wire, Insulation resistance between Hall ground winding wire and chassis is greater than 100 megohms 500VDC, and it can withstand 600VAC/50Hz/1mA/1 second without breakdown.

5. The outer diameter and height of the motor, the diameter of the output shaft, whether it needs to be equipped with a reducer and other related parts.

If there is no suitable specifications, it can be customized according to actual needs.

Typical Application:

- Power tool and fitness equipment
