Product Description

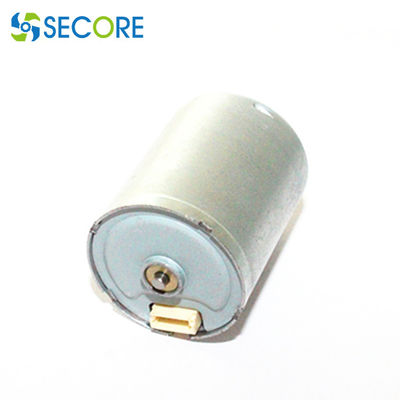

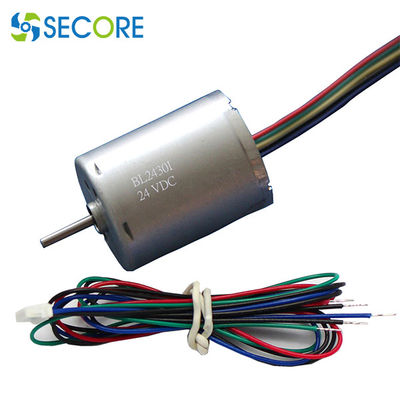

12V 24V φ24mm*30mm Brushless Dc Motor Low Noise For Medical Instrument
Specification:
Size: φ24.0* 30.0mm-24.0*30mm
Built-in driver
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC
Low noise
Long life: 20000hrs Min.
Over-current protection
Over-voltage protection
Under-voltage protection
OEM and ODM orders are welcome
The design can be customized
| MODEL |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
OPERATING
RANGE |
RATED |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
| r/min |
A |
r/min |
A |
g.cm |
W |
g.cm |
A |
| BLS2430I-V1 |
5V~9V |
9V |
6086 |
0.13 |
4747 |
0.442 |
48.7 |
2.371 |
221.3 |
1.546 |
| BLS2430I-V2 |
8V~16V |
12V |
7380 |
0.12 |
5830 |
0.438 |
53.1 |
3.174 |
252.7 |
1.636 |
| BLS2430I-V3 |
8V~26V |
24V |
9737 |
0.09 |
7692 |
0.369 |
68.1 |
5.37 |
324.1 |
1.322
|
More models for further reference:
| Model # |
BLS2413O |
BLS2713O |
BLS2717O |
BLS2719O |
BLS2717O |
BLS4225O |
BLS4548F |
BLS5550F |
| Type |
BLDC Motor |
BLDC Motor |
BLDC Motor |
BLDC Motor |
BLDC Motor |
BLDC Motor |
BLDC Motor |
BLDC Motor |
| Size (mm) |
Φ24.0*H13 |
Φ27.0*H13 |
Φ27.0*H17 |
Φ27.0*H19 |
Φ37.0*H17 |
Φ42.0*H26 |
Φ45.4*H55 |
Φ55.0*52.0 |
| Voltage (V) |
5~26VDC |
5~26VDC |
5~26VDC |
5~26VDC |
8~26VDC |
8~26VDC |
8~25.2VDC |
8~25.2VDC |
| RPM |
10,000~20,000 |
6000~15,000 |
5000~30,000 |
5000~30,000 |
5000~30,000 |
5000~40,000 |
30,000~100,000 |
30,000~100,000 |
| Power (W) |
20W |
20W |
35W |
45W |
65W |
130W |
120W |
250~300W |
| Weight(g) |
50g |
55g |
60g |
65g |
70g |
125g |
100g |
150g |
Typical
application |
sweeper,
vacuum cleaner |
sweeper,
drive wheel chair |
small power window cleaner,
vacuum cleaner |
high power sweeper,
window cleaner |
high power window cleaner |
Hand-held vacuum cleaner |
High-speed handheld vacuum fan |
High-speed handheld vacuum fan |
| Model # |
BLS2418I |
BLS2419I |
BLS2430I |
BLS2838I |
BLS3640I |
BLS2413O |
BLS4220O |
| Type |
inner BLDC Motor |
inner BLDC Motor |
inner BLDC Motor |
inner BLDC Motor |
inner BLDC Motor |
outer BLDC Motor |
outer BLDC Motor |
| Size (mm) |
Φ24.4*H18.1 |
Φ24.4*H19.0 |
Φ24.4*H30.8 |
Φ28.0*H37.6 |
Φ36.0*H40.0 |
Φ24.0*H13.0 |
Φ40.5*H21.0 |
| Voltage (V) |
3.7~26VDC |
3.7~26VDC |
3.7~26VDC |
3.7~26VDC |
3.7~26VDC |
3.7~26VDC |
100~240VDC |
| RPM |
3000~10,000 |
3000~12,000 |
2000~12,000 |
3000~15,000 |
3000~10,000 |
3000~25,000 |
6000~25,000 |
| Power (W) |
3~5W |
5W |
6~10W |
10~15W |
20~30W |
15~25W |
130W |
| Weight(g) |
30g |
35g |
50g |
75g |
150g |
50g |
130g |
Typical
application |
electric razor,
electric hair trimmer, hair curler |
electric hair trimmer, hair curler |
electric razor,
electric hair trimmer |
electric razor,
electric hair trimmer |
pet electric hair trimmer |
household hair dryer |
hair dryer |
TO BE TAILORED
Generally select the appropriate power, voltage, speed, torque and body size according to the actual situation (load, structure size, etc.), and then match the brushless drive according to the specific parameters of the selected DC brushless motor.
♦ Customized voltage, motor performance
♦ Customized mounting, shaft dimension, and lead configuration
♦ EMI/RFI suppression circuit
♦ Overload protection, thermal protection
♦ High temperature and waterproof option
♦ Integrated gearbox, controller, encoder and brake
If there is no suitable specifications, it can be customized according to actual needs.
About us
Shenzhen Secore Technology Co.,Ltd is professionally engaged in various of motors such as brushless dc motors, high voltage brushed dc motors, gear motors, integrates R&D, mass production, sales and service with 25 lean production lines( currently 3 automatic production lines ), monthly capacity of continuous growing 3 million units and annual average sales value 40 million dollars.
Parts of Typical Application:
-Office apparatus and medical devices
• Printer, Copier, Projector, Shredder, fax ( paper cutter), computer peripheral, lifting socket etc.
• Sphygmomanometer, breath machine, cleaning pump, medical ventilator, medical bed, dental instrument, surgical robot etc
- Power tool and fitness equipment
• Electric screwdriver, Electric hydraulic pliers, Electric scissors
• Fascia gun, massage chair, treadmill
-Household appliances and personal care
• Air purifier, smart toilet, hair dryer, hair curler, tooth brush, vibration, rubdown machine, foot grinder, facial beauty equipment, eyebrow tweezer, electric threading knife
• Blender, sweeper, window cleaner, small household appliances etc.
