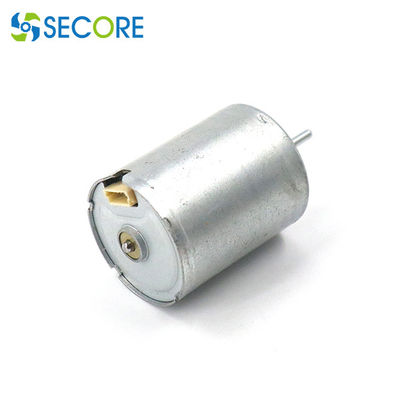

12V Electric Fan BLDC Brushless DC Motor 0.23A High Speed RohS Certificated

Contact Now

12V Electric Fan BLDC Brushless DC Motor 0.23A High Speed RohS Certificated

Minimum Order Quantity :	500	Price :	Negotiated The Price
Packaging Details :	500pcs per carton or as request	Delivery Time :	10-12 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	China,Guangdong	Brand Name:	SECORE
Certification:	CE ROHS	Model Number:	BLS-2430I

Detail Information
Speed RPM:	4000-10000 Or Customized	Rated Voltage:	5-24V
Rated Torque:	40-80 G.cm Or As Request	Certification:	CE, RohS
Continuous Current:	0.1-0.23A	Dimension:	∮24*30（mm）
Construction:	Pernanent Magnet	Product Name:	Micro BLDC Motor, Brushless Dc Motor, Motor Brushless
Usage:	Electric Curtain, Cooking Machine, Body Dryer, Air Purifier, Fan
High Light:	Electric Fan bldc brushless dc motor , 0.23A bldc brushless dc motor , 0.23A high speed brushless dc motor

Product Description

12v Tiny Dc Brushless Fan Motor With High Speed For Electric Fan

Specification:

Type: brushless DC motor
Construction: permanent magnet
Motor terminations: VCC/FG/CW/CCW/GND/PWM/brake
Output power: 1-8W
Voltage: 12V
Diameter of motor housing: 24mm
Length of motor housing: 30mm
Diameter of the output shaft: 2mm
Long lifetime
Low noise, low EMI

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
	OPERATING RANGE	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
	OPERATING RANGE	RATED	r/min	A	r/min	A	g.cm	W	g.cm	A
BLS2430I-V1	5V~9V	9V	6086	0.13	4747	0.442	48.7	2.371	221.3	1.546
BLS2430I-V2	8V~16V	12V	7380	0.12	5830	0.438	53.1	3.174	252.7	1.636
BLS2430I-V3	8V~26V	24V	9737	0.09	7692	0.369	68.1	5.37	324.1	1.322

12V Electric Fan BLDC Brushless DC Motor 0.23A High Speed RohS Certificated 0

TO BE TAILORED

Generally select the appropriate power, voltage, speed, torque and body size according to the actual situation (load, structure size, etc.), and then match the brushless drive according to the specific parameters of the selected DC brushless motor.

♦ Customized voltage, motor performance

♦ Customized mounting, shaft dimension, and lead configuration

♦ EMI/RFI suppression circuit

♦ Overload protection, thermal protection

♦ High temperature and waterproof option

♦ Integrated gearbox, controller, encoder and brake

If there is no suitable specifications, it can be customized according to actual needs.

Some of Typical Application

• Juicer	• Dishwashers	• Lawn mowers	• Mulcher
• Treadmill	• Washing machines	• Secateurs	• Grass Cutter
• Fascia guns	• Fan	• Olive shaker	• Lown Mower
• Electric massagers	• Small home appliances	• Pole pruner	• Electric Chain Saw
• Air conditioners	• Chain saws	• Concrete cutter	• Robots
• Robot vacuum cleaner	• Trimmers	• Metal cuter	• Components
• Power reclining sofas	• Leaf blowers	• Circular saw	• Snow Thrower
