Efoil / Electric Hydrofoil Underwater Brushless Motor 160kv 500W 50m Waterproof

Minimum Order Quantity : 200 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T Supply Ability : 30000PCS / month
Place of Origin: Guangdong, China Brand Name: SECORE
Certification: CE Model Number: BLE-5062

Detail Information

Working Voltage: 12V, 24V, 36V KV Value: 160KV
Propeller Diameter: 80-115mm Thrust: 5-8KG
Continuous Work Current: 12-15A Working Depth: Underwater 50M
IP Level: IP68 Application: Electric Surfboard, Rov Thruster, Efoil, Surfing Board
High Light:

50m Waterproof underwater brushless motor

,

Electric Hydrofoil underwater brushless motor

,

160kv brushless underwater motor

Product Description

36V IP68 Brushless Motor 160kv 500W Efoil Motor Electric Hydrofoil Bldc Motor E-Jet Motor 5062

Parameters:

83 underwater thrusters
Voltage 24-36V Compatible
Thrust 5-7KG
Continuous working current 13-15A
Waterproof grade IP68
Waterproof depth: 50 meters underwater

This product is a stator potting waterproof process, which cannot effectively prevent salt crystallization and sediment, we have other models which can protect motor from salt-crystallization, technology patent approved.

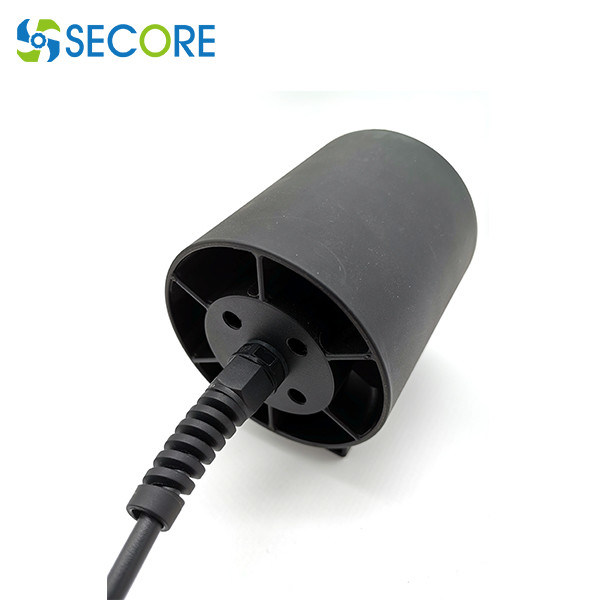

Efoil / Electric Hydrofoil Underwater Brushless Motor 160kv 500W 50m Waterproof 0 Motor Model number: BLE-8390T
Motor name: Rov thruster brushless motor kit
Motor type: brushless motor
Voltage Range: 24-36V compatible
Continuous working current: 13-15A
Protection level: IP68
Thrust: 5KG-7KG
Feature: Stator Potting Waterproof Process
Size: 83*90mm

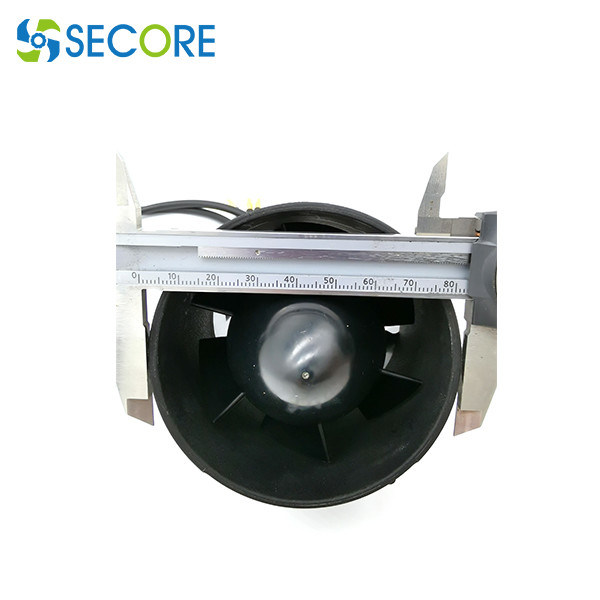

Mechanical dimensions:

Efoil / Electric Hydrofoil Underwater Brushless Motor 160kv 500W 50m Waterproof 1



Secore IP68 waterproof motor application:



Secore Technology has been developed Waterproofing brushless outer rotor motor for underwater devices include saltwater, using the cut-edge patented technology, stator potting waterproofing process, and the cut-edge patented technology, wholly sealed motor. Provide Solutions For underwater ROV thruster, Paddle Booster, Electric Float, diving devices, E-jet surfboard, unmanned boat, electric surfboard etc.



Efoil / Electric Hydrofoil Underwater Brushless Motor 160kv 500W 50m Waterproof 2
