12V 24V IP68 Waterproof Outer Rotor Brushless Motor 5062 Electric Surfboard Motor

Minimum Order Quantity : 300 Price : Negotiated The Price
Packaging Details : 10pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T Supply Ability : 30000PCS / month
Place of Origin: China Brand Name: SECORE
Certification: CE Model Number: BLE-5062

Detail Information

Voltage: 12V, 24V, 36V KV Value: 160KV
Prepeller Diameter: 80-115mm Thrust: 5-8KG
Continuous Work Current: 12-15A Working Depth: 50M
Protection Rate: IP68 Application: Electric Surfboard, Rov Thruster, Efoil, Surfing Board
High Light:

Waterproof Outer Rotor Brushless Motor

,

IP68 Outer Rotor Brushless Motor

,

5062 Electric Surfboard Motor

Product Description

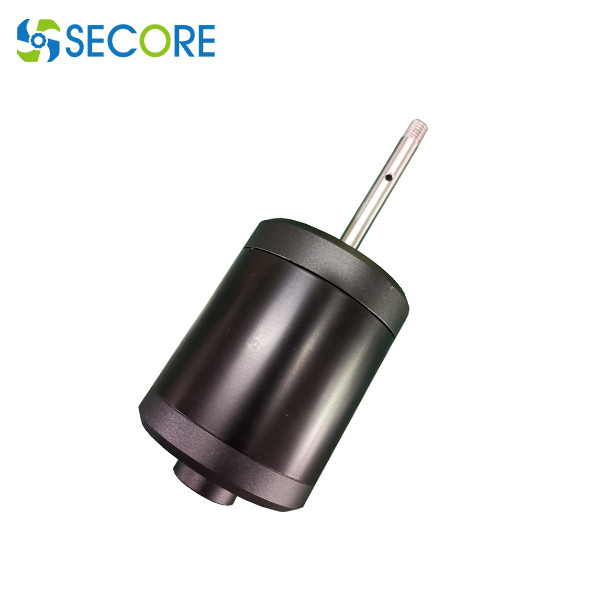

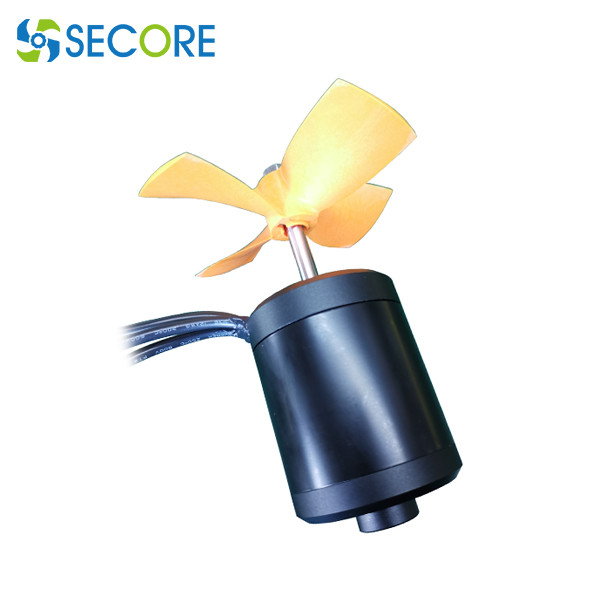

12V 24V IP68 Waterproof Outer Rotor Brushless Motor 5062 Electric Surfboard Motor With Propeller

Main features:

a): IP rate: IP68;

b): shaft material is 316 stainless steel, can long term working in the ocean;

c): Salt spray test lasts >140 hours, by using special bearing and lubrication;

d): It can effectively protect copper wire and silicon steel sheet from seawater corrosion by adopting high thermal conductivity material in the vacuum sealing coil;

e): The solder joints of the motor wires are potted inside, to fulfill 200 meters suppression test.


Parameters:

Motor Model number 5062 Dimension 50*62mm
( diameter * length )
Motor type brushless motor Rotor running outer rotor running
Motor Name Efoil motor, surfboard motor Protection level IP68
Voltage Range 24v 36v compatible Rated Current 12A
RPM 5760 Maximum load current 30A
KV(RPM/V) 160KV Rated Power 500W
Thrust 5KG-8KG feature stator potting waterproofing
Hole Distance 35mm Screw Holes 4*M4

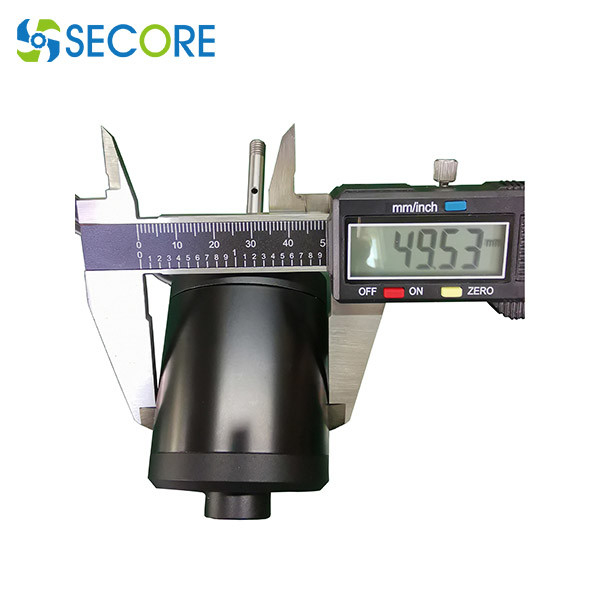

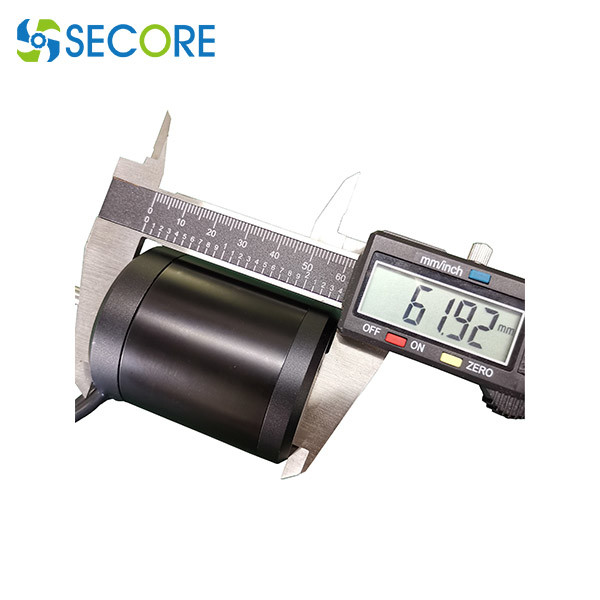

Mechanical dimensions:

12V 24V IP68 Waterproof Outer Rotor Brushless Motor 5062 Electric Surfboard Motor 0
12V 24V IP68 Waterproof Outer Rotor Brushless Motor 5062 Electric Surfboard Motor 1


Typical application:


Provide Solutions For Motorized surfboard, surfing board, electric floating board, Efoil, Electric Surfboard, rov thruster and waterproof needed devices.



12V 24V IP68 Waterproof Outer Rotor Brushless Motor 5062 Electric Surfboard Motor 2
