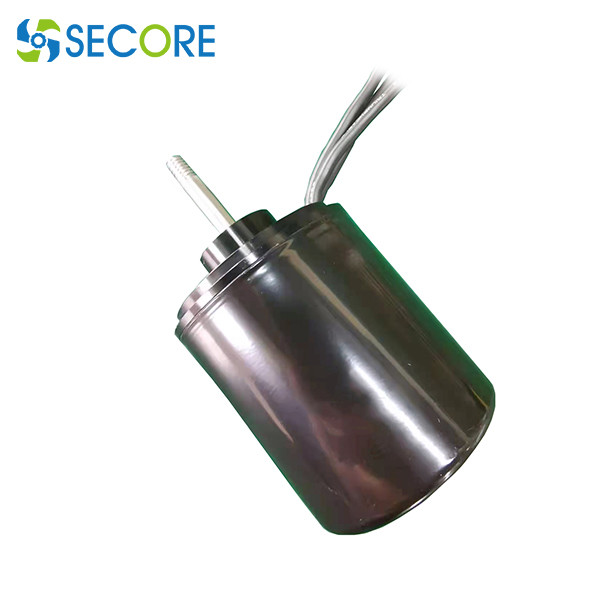

High Power Waterproof Brushless Motor 2 Hp Electric Brushless Motor For Water Vehicle

Minimum Order Quantity : 200 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T Supply Ability : 30000PCS / month
Place of Origin: Guangdong, China Brand Name: SECORE
Certification: CE RoHS Model Number: BLE-5463

Detail Information

Working Voltage: 24V-36V Compatible Working Current: 12-15A
KV Value: 150-260KV Propeller: 95mm
Working Depth: Upto 200M Thrust: 7KG
IP Rate: IP68 Application: Water Vehicle, Water Motocycle, Underwater Scooter
High Light:

High Power Waterproof Brushless Motor

,

Waterproof Brushless Motor 2 Hp

,

Water Vehicle 2 Hp Electric Brushless Motor

Product Description

Waterproof Motor High Power 2 Hp Electric Brushless Motor E5463 For Water Vehicle



Main features:



High Power Waterproof Brushless Motor 2 Hp Electric Brushless Motor For Water Vehicle 0 Motor Model number: BLE-5463
Motor name: Water motor
Motor type: brushless dc motor
Voltage Range: 24-36V compatible
Continuous working current: 12-15A
Protection level: IP68
Thrust: 5KG-8KG
Advantage: waterproof, anti-water, anti-sand, anti-crystallization ( Patent )
Size: 54*63mm






Outline dimensions:

High Power Waterproof Brushless Motor 2 Hp Electric Brushless Motor For Water Vehicle 1



High Power Waterproof Brushless Motor 2 Hp Electric Brushless Motor For Water Vehicle 2



Typical application:


Provide Solutions of Waterproof Motors For Underwater salvage, underwater construction, on-water sports devices etc.



To be tailored for your waterproof motors with different voltage range, high power request, please contact us for further details.

12V 24V 36V 48V 72V

500W 600W 800W 1000W 1200W 1300W 1400W 1500W 2000W 3000W 10000W 20000W etc.

Contact us for more details



High Power Waterproof Brushless Motor 2 Hp Electric Brushless Motor For Water Vehicle 3



BLDC MOTOR Waterproof technologies



The potting waterproofing process is to seal the stator of the motor through a waterproof glue tank, but there is a gap between the stator and the rotor of the motor, water can enter, so it cannot prevent salt crystallization and sediment.



The sealing waterproofing process is that after the entire motor is waterproofed, it is sealed up, only the shaft is rotating, so that it can prevent salt crystallization and sediment.
