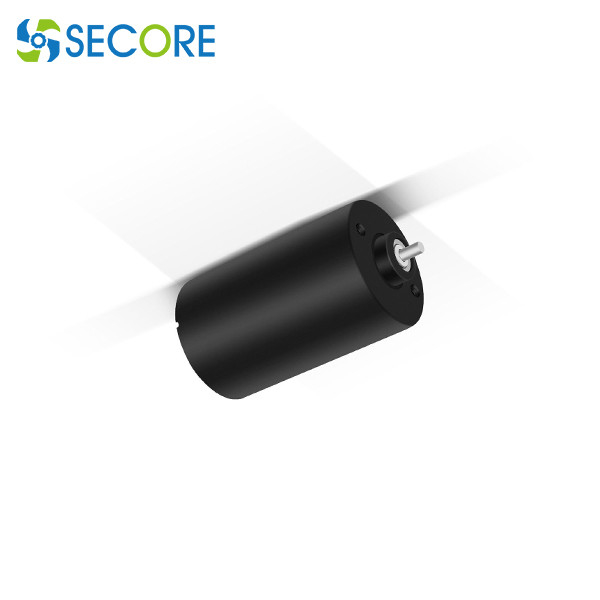

IP68 Protection Brushed Permanent Magnet DC Motor 12V 24V For Low Noise Occasion

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China Brand Name: SECORE
Certification: CE ROHS Model Number: DC38D

Detail Information

Speed: 4000rpm Or Customized Rated Voltage: 12V 24V
Diameter * Length: ø38mm * 63mm Shaft Diameter: ø5mm
Protection: Water-proof IP68 Typical Application: Roller Shutter, Shredding Machine, Cutting Machine
High Light:

IP68 Brushed Permanent Magnet DC Motor

,

24V Brushed Permanent Magnet DC Motor

,

permanent magnet 12v brushed motor

Product Description

IP68 compact design Brush commutated permanent magnet DC motor for Low noise occasion



Main characteristics:



38mm diameter PMDC motor, totoally enclosed, proper for those occasions which requires low noise motor.



Motor type Brush commutated permanent magnet DC motor
Optional gearbox type Planetary/Spur/Worm/Right Angle
Diameter 38mm
Length 63mm
Nominal voltage 12V/24V DC or customized
No load current 160mA; 220mA
No load speed 3000rpm; 4000rpm
Norminal current 0.35A; 0.60A
Nominal speed 2400rpm; 3200rpm
Nominal torque 15mN.m; 20mN.m;
Nominal power 3.8W; 6.5W
IP rating up to IP68



IP68 Protection Brushed Permanent Magnet DC Motor 12V 24V For Low Noise Occasion 0

Model Rated voltage VDC No-load speed r/min No-load current mA Rated speed r/min Rated torque mN.m Output power W Rated current A Stall torque mN.m Stall current A
D3863-2430 24 3000 160 2400 15 3.8 0.35 65 1
D3863-2440 24 4000 220 3200 20 6.5 0.6 90

2





Model Rated voltage VDC No-load speed r/min No-load current mA Rated speed r/min Rated torque mN.m Output power W Rated current A Stall torque mN.m Stall current A
D4282-2430 24 3000 0.2 2400 70 15 1.2 280 3.7
D4285-2436 24 3600 0.3 2850 80 23 1.5 290 4.7



This brushed DC motor can be equipped with Planetary/Spur/Worm/Right Angle gearbox



Options

Planetary/Spur/Worm/Right Angle gearbox

Magnetic encoder or optical encoder with up to 3 channels provides feedback for your accurate control of motor speed and positioning.

Power-on or power-off type electromagnetic brake

Capacitor& resistor for EMC suppression

Special shaft material and dimensions

Custom design; OEM products available



Features

Magnetic field generated by permanent magnets

Operation in both directions of rotation(CW & CCW)

Speeds up to 10,000 RPM possible

Advantageous torque with minimum space requirements

Suitable for continuous, reversing and intermittent operation

Can be installed in any mounting position





What we make?



Secore provides custom engineering to design gear motors utilizing various motor type ( brushless DC motor, brushed DC motor, stepper motors etc),integrated control & sensing, gear type(spur & helical, worm and planetary) and gearbox material to meet customers' expectation.



IP68 Protection Brushed Permanent Magnet DC Motor 12V 24V For Low Noise Occasion 1



IP68 Protection Brushed Permanent Magnet DC Motor 12V 24V For Low Noise Occasion 2



IP68 Protection Brushed Permanent Magnet DC Motor 12V 24V For Low Noise Occasion 3



Motor Solution for areas of expertise



-Office apparatus and medical devices

• Printer, Copier, Projector, Shredder, fax ( paper cutter ), computer peripheral, lifting socket etc.

• breath machine, medical cleaning pump, medical ventilator, medical bed, dental instrument, surgical robot etc

- Power tool and fitness equipment

• Electric screwdriver, Electric hydraulic pliers, Electric scissors,

• Fascia gun, massage chair, treadmill

-Household appliances and personal care

• Air purifier, smart toilet, hair dryer, hair curler, tooth brush, vibration, rubdown machine, foot grinder, facial beauty equipment, eyebrow tweezer, electric threading knife
