16mm 15mm Fingerprint Lock Micro Geared Motor 3D Printing Pen Brushed DC Geared Motor

Product Details:
Place of Origin: China
Brand Name: SECORE
Certification: CE ROHS
Model Number: DC1518-15GB
Payment & Shipping Terms:
Minimum Order Quantity: 500
Packaging Details: 100pcs per carton or as request
Delivery Time: 10-12 working days
Payment Terms: D/P, T/T,, Western Union, L/C

Detail Information

Voltage: 5V Or Per Request Motor Size: Φ15.5*L18.6mm
Rated Speed: 44-253rpm Or Customize Rated Torque: 119g-600g Or Per Request
Gearbox Size: 15.5*11mm Product Name: Mini Gear Motor, 5v Micro Geared Motor
Material: Metal Gearbox Application: Printing Pen Motor, Smart Home
High Light:

15mm Micro Geared Motor

,

Fingerprint Lock Micro Geared Motor

,

Printing Pen brushed DC geared motor

Product Description

16mm 15mm Fingerprint Lock Gear Motor Mini 3D Printing Pen Dc Gear Brush Motor



Introduction:



Gear Motor Size: Φ15.5*L29.6mm;

Voltage: DC 3V, 5V, 6V, 9V, or as per request

Speed: Customizable

Application: Printing pen gear motor, Secore dc gear motor



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL Gear length (L1) Matching motor Motor length (L2)
SPEED
RPM
CURRENT
mA
SPEED
RPM
TORQUE
mN.m
CURRENT
A
POWER
W
TORQUE
mN.m
CURRENT
A
mm Model mm
DC1518-15GB 5 321 70 253 11.6 0.2 0.31 55.8 0.8 11 DC-1518 18.6
DC1518-15GB 5 189 70 149 19.8 0.2 0.31 94.8 0.8 11 DC-1518 18.6
DC1518-15GB 5 117 70 92 28.9 0.2 0.28 138.9 0.8 11 DC-1518 18.6
DC1518-15GB 5 74 70 58 45.7 0.2 0.28 219.2 0.8 11 DC-1518 18.6
DC1518-15GB 5 63 70 50 53.6 0.2 0.28 256.7 0.8 11 DC-1518 18.6
DC1518-15GB 5 56 70 44 60.4 0.2 0.28 290.2 0.8 11 DC-1518 18.6

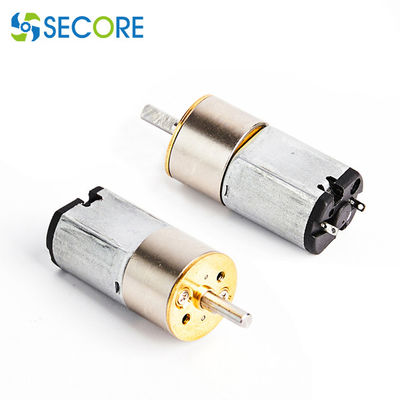

16mm 15mm Fingerprint Lock Micro Geared Motor 3D Printing Pen Brushed DC Geared Motor 0

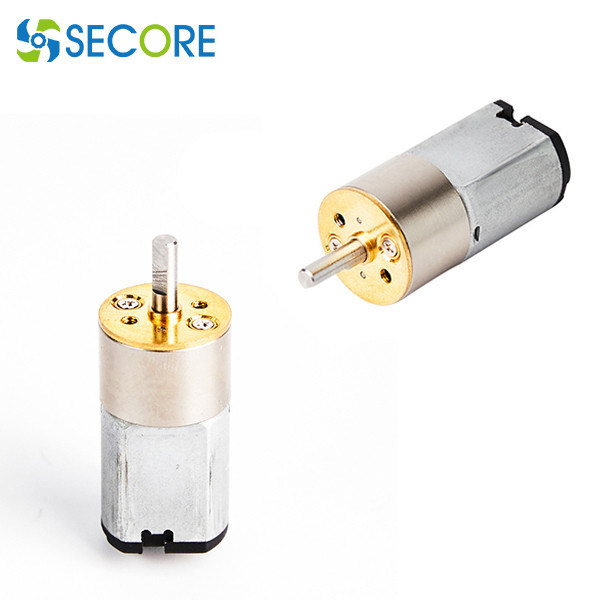

16mm 15mm Fingerprint Lock Micro Geared Motor 3D Printing Pen Brushed DC Geared Motor 1

What is a DC gear motor?

A gear motor is an integrated combination of a motor and a gearbox. Adding a gear head to the motor reduces speed while increasing torque output. The most important parameters of a gear motor are speed (rpm), torque (kg.cm) and efficiency (%). In order to choose the most suitable gear motor for your application, you must first calculate the load, speed and torque requirements of your application. Secore motor offers a wide range of planetary, spur and worm gear motors to meet all application requirements. Most of our DC motors can be paired with one of our unique gearboxes, giving you an efficient gear motor solution.
