6V 12V 24V DC Gear Motor Rotating Light Stage Light Air Valve Spur Gearbox

Name: 6V 12V 24V DC Gear Motor Rotating Light Stage Light Air Valve Spur Gearbox
Brand: SECORE
SKU: DC1225-32GB
Price: 1 USD
Availability: InStock
Rating: 4.5 (120 reviews)

Minimum Order Quantity :	200	Packaging Details :	100pcs per carton or as request
Delivery Time :	10-12 working days	Payment Terms :	D/P, T/T,, Western Union, L/C

Place of Origin:	China	Brand Name:	SECORE
Certification:	CE ROHS	Model Number:	DC1225-32GB

Detail Information
Rated Voltage:	12V DC Or Customize	No Load Speed:	28rpm, 16rpm
Speed With Load:	23rpm, 12rpm	Rated Torque:	35.3mN.m, 294mN.m
Motor Size:	OD12.4mm*L24.4mm	Spur Gear Size:	OD38.5mm*L10.3mm
Application:	Stage Light, Stage Light Motor, Air Valve, Valve Motor, Robot Motor	Product Name:	Stage Light Gear Motor, Spur Geared Motor For Stage Lights, Valve Gear Motor
High Light:	24V DC Gear Motor , rotating light DC Gear Motor , Air Valve Spur gearbox

Product Description

Factory Direct Supply Stage Light Motor 6V 12V 24V Air Valve DC Gear Motor With Spur gearbox

DC1225-32GB Secore Brush dc gear Motor main features:

Size: Φ38.5*L22.4mm;

Voltage: DC12V, 6V, 24V, 36V or customized

Speed: 5rpm, 30rpm, or as request

Application: Stage light, Stage rotating led, rotating light, robot, air valve

MODEL	VOLTAGE	NO LOAD		AT MAXIMUM EFFICIENCY				STALL		Gear length (L)	Matching motor	Motor length (L1)
MODEL	VOLTAGE	SPEED RPM	CURRENT mA	SPEED RPM	TORQUE mN.m	CURRENT A	Output W	TORQUE mN.m	CURRENT A	mm	Model	mm
DC1225-32GB	12	28	22	23	35.3	0.04	0.01	186.4	0.12	12.3	DC1225	13.2
DC1225-32GB	12	16	40	12	294	0.13	0.01	980.5	0.4	12.3	DC1225	13.2

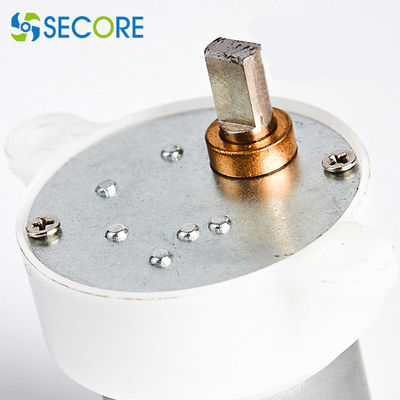

6V 12V 24V DC Gear Motor Rotating Light Stage Light Air Valve Spur Gearbox 1

Typical Application:

Industrials	flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc.
Electric power tools	electric drill, screwdriver,garden tool and etc.
Precision instruments	optics instruments,automatic vending machine, wire-stripping machine and etc.
Personal care	tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Consumer electronics	camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera, PTZ camera, rotating smart speaker and etc.
robots	educational robot, programming robot, medical robot, escort robot and etc.
