Metallic Miniature DC Gearmotor Sweeper Shredder 25mm Brushed DC Motor With Gearbox

Minimum Order Quantity : 100 Packaging Details : 100pcs per carton or as request
Delivery Time : 10-12 working days Payment Terms : D/P, T/T,, Western Union, L/C
Place of Origin: Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: DC2418-25GB

Detail Information

Rated Voltage: DC 6V Free Load Speed: 250rpm Or Customized
Rated Speed: 200r/min Or Customized Rated Torque: 15mN.m
Motor Dimension: Φ24*L18mm Gear Reducer Size: Φ25*L21mm
Application: Sweeper Motor, Shredder Motor Product Name: Metallic Gear Motor, 25mm Spur Geared Motor
High Light:

Metallic miniature dc gearmotor

,

Sweeper miniature dc gearmotor

,

25mm brushed dc motor with gearbox

Product Description

6v 12v 25mm Metallic Gearbox Motor Sweeper Shredder Motor With Reducer



Secore Motor Brushed Spur Gear Motor DC2418-25GB Main features:



Gear Motor Size: Φ25*L39mm;

Voltage: 6V~36V, as per request;

Speed: 5rpm ~ 500rpm;

Application: sweeper, shredder, robot etc



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL Gear length (L) Matching motor Motor length (L1)
SPEED
RPM
CURRENT
A
SPEED
RPM
TORQUE
mN.m
CURRENT
A
Output
W
TORQUE
mN.m
CURRENT
A
mm Model mm
DC2418-25GB 6 434 0.04 347 9.6 0.1 47.8 0.49 0.48 21 DC2418 18
DC2418-25GB 6 326 0.04 260 12.7 0.1 63.7 0.65 0.48 21 DC2418 18
DC2418-25GB 6 250 0.04 200 15 0.1 75.2 0.78 0.48 21 DC2418 18
DC2418-25GB 6 191 0.04 153 19.7 0.1 98.2 1.01 0.48 21 DC2418 18
DC2418-25GB 6 145 0.04 116 26 0.1 130.2 1.33 0.48 21 DC2418 18
DC2418-25GB 6 114 0.04 91 29.6 0.1 148.1 1.51 0.48 21 DC2418 18
DC2418-25GB 6 87 0.04 69 39 0.1 195.1 1.98 0.48 21 DC2418 18
DC2418-25GB 6 66 0.04 53 50.9 0.1 254.5 2.61 0.48 21 DC2418 18
DC2418-25GB 6 52 0.04 42 57.6 0.1 288.1 2.95 0.48 21 DC2418 18

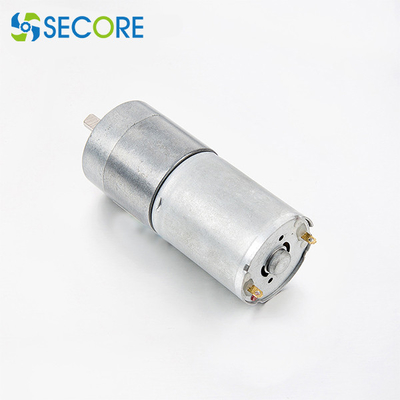

Metallic Miniature DC Gearmotor Sweeper Shredder 25mm Brushed DC Motor With Gearbox 0

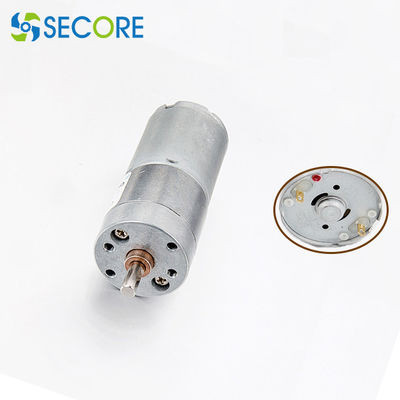

Metallic Miniature DC Gearmotor Sweeper Shredder 25mm Brushed DC Motor With Gearbox 1







What are main parameters for selecting an electric motor?



Generally select the appropriate power, voltage, speed, torque and body size according to the actual situation (load, structure size, etc.), and then match the brushless drive according to the specific parameters of the selected DC brushless motor.

The parameters are: DC power supply voltage, rated output power, rated load torque, rated operating speed and the direction of rotation of the brushless DC motor: clockwise, counterclockwise or both are required, and the continuous duty cycle of the motor can be in accordance with a certain time operation, the environment that the DC brushless motor is adapted to: indoor, outdoor, ocean, high pressure, high temperature, high humidity, corrosive gas, the structure of the flange has two types of structure, square and round, and the length of the body .



  1. Select the correct voltage, expected performance of the motor
  2. Confirm the peak current of the brushless drive.
  3. Define the working environment (such as temperature, high humidity, etc.).
  4. The requirement of power supply insulation.
  5. The outer diameter and height of the motor, the diameter of the output shaft, whether it needs to be equipped with a reducer and other related parts.
