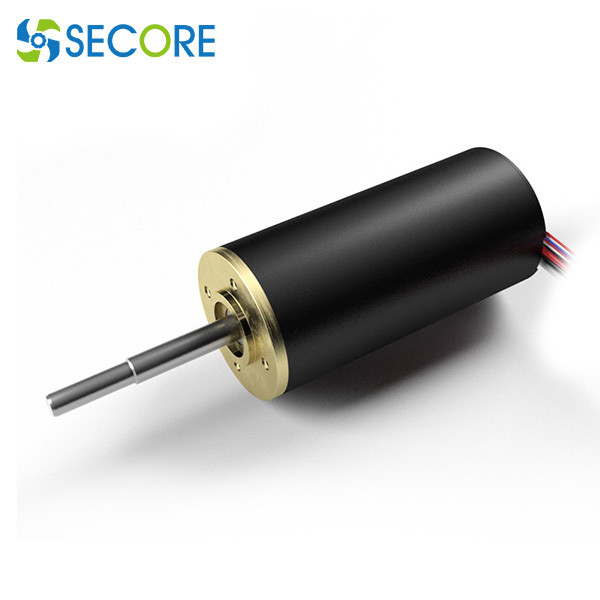

Aluminum Grinding Machine 4.9A Coreless DC Motor 32×64mm Hollow Cup

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 30pcs per carton or as request Delivery Time : 9-10 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Dongguan Brand Name: SECORE
Certification: CE ROHS Model Number: SC-CL3264

Detail Information

Rated Voltage: 12V Rated Speed: 692020rpm
Rated Torque: 63mN.m Or As Request Efficiency: 86.9
Rated Current: 4.9A Or As Request Motor Dimension: θ 32* L 64mm
Product Type: Coreless Brushless Motor, Coreless Bldc Motor Application: Grinding Machine, Smart Household Robots, Micro Pumps
High Light:

Grinding Machine Coreless DC Motor

,

4.9A Coreless DC Motor

,

32×64mm Hollow Cup Brushless Motor

Product Description

Aluminum Enclosure Coreless Grinding Machine Motor 32*64mm Hollow Cup Brushless DC Motor


Technical parameter:



Motor data Motor model no.
Values at rated voltage SC-CL3264-12086 SC-CL3264-24112 SC-CL3264-30215 SC-CL3264-36215
At Nomimal Nominal voltage V/DC 12 24 30 36
Nominal speed RPM 6920 9006 16080 17200
Nominal current A 4.9 10.5 9.4 7.9
Nominal Torque mNm 63 204.3 129.4 119.3
Free load No load speed RPM 8650 11257 20100 21500
No load current mA 110 456 303 354
At Max Efficiency Max efficiency % 86.9 82.9 84.4 81.6
Speed RPM 8088 10356 18593 19565
Current A 1.7 4.5 3.7 3.7
Torque mNm 20.5 81.7 48.5 53.7
At Max output power Max output power W 71.3 301.1 340.5 335.7
Speed RPM 4325 5628.5 10050 10750
Current A 12.1 25.7 23.2 19.2
Torque mNm 157.5 510.8 323.5 298.2
At Stall current A 24 51 46 38
torque mNm 315 1021.7 647 596.3




Mounting sizes

Aluminum Grinding Machine 4.9A Coreless DC Motor 32×64mm Hollow Cup 0


Coreless motor Advantages:


1. Energy-saving features:
The energy conversion efficiency is very high, the maximum efficiency is generally above 70%, and some products can reach above 90% (the iron core motor is generally 20-50%)
2. Control characteristics:
The starting and stalling are rapidly, the response is extremely fast, the mechanical time constant is less than 28 milliseconds, and some products can reach within 10 milliseconds (the iron core motor is generally more than 100 milliseconds); in the high-speed operation state in the recommended operating area, the speed can be easily and flexibly adjusted.
3. Stable characteristics:
The stability of operation is very reliable, and the fluctuation of the speed is very small. As a miniature motor, the fluctuation of the speed can be easily controlled within 2%.
In addition, the energy density of coreless motors has been greatly improved. Compared with iron core motors of the same power, its weight and volume are reduced by 1/3-1/2.





Aluminum Grinding Machine 4.9A Coreless DC Motor 32×64mm Hollow Cup 1Aluminum Grinding Machine 4.9A Coreless DC Motor 32×64mm Hollow Cup 2
