1.58W Mini Brush Coreless Motor 16mm 335mA For Beauty Equipment

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 100pcs per carton or as request Delivery Time : 7-10 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Dongguan Brand Name: SECORE
Certification: CE ROHS Model Number: BCL-1629

Detail Information

Rated Voltage: 6V Or 12V Rated Power: 1.58W
Rated Torque: 15g.cm Free Load Speed: 12000rpm
Rated Current: 335mA Motor Size: 16*29mm
Product Name: Miniature Brush Coreless Motor 16mm Usage: Beauty Equipment, Power Tool, 5g Antenna
High Light:

1.58W Mini Brush Coreless Motor

,

335mA Brush Coreless Motor

,

Beauty Equipment Coreless Brushed Motor

Product Description

25g Light Weight Miniature Brush Coreless Motor 16mm For Dental Equipment


Brush DC Motor parameter:


Model # RATED Voltage NO LOAD AT MAXIMUM EFFICIENCY STALL
SPEED CURRENT SPEED TORQUE CURRENT Out. Power TORQUE CURRENT
VDC ±10% r/min mA ±10% r/min g.cm mA W g.cm A
BCL-1629-06 6 12000 29 10500 15 335 1.58 128 3.5
BCL-1629-12 12 12000 14 10800 15 172 1.64 161 1.8

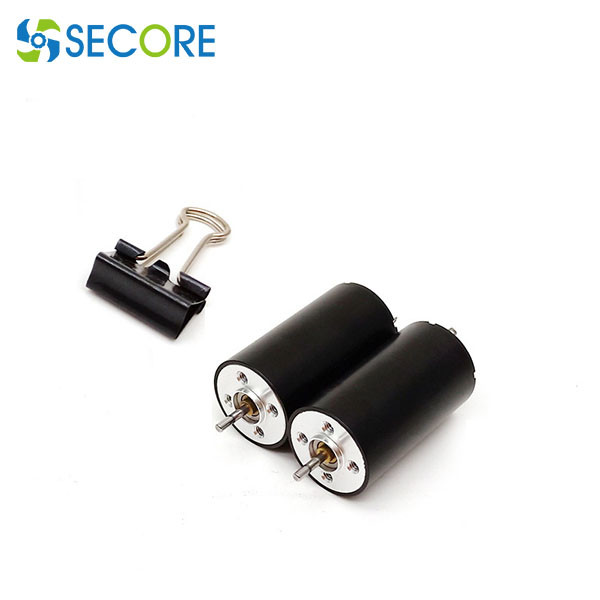

1.58W Mini Brush Coreless Motor 16mm 335mA For Beauty Equipment 0

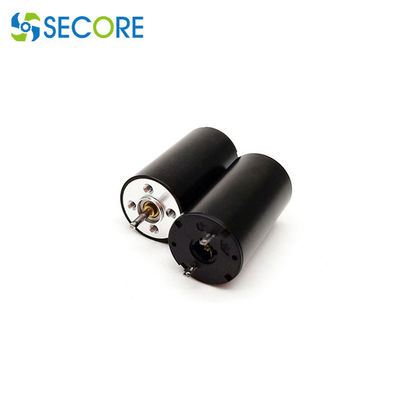

1.58W Mini Brush Coreless Motor 16mm 335mA For Beauty Equipment 1
 Application

Coreless DC motors are ideal for a variety of dynamic applications, including automotive systems, cable pull systems, microscopes and electric screwdrivers, tattoo machines, golf carts and massage chairs. With a coreless motor, the possibilities for designers are endless. It includes robotics projects such as small positioning and pan/tilt systems. Medical devices such as prosthetics, insulin pumps, X-ray machines and laboratory equipment also benefit from the use of coreless motors. In addition, there are many applications in particularly demanding fields such as aerospace, defense and surveillance.

 1.58W Mini Brush Coreless Motor 16mm 335mA For Beauty Equipment 2
