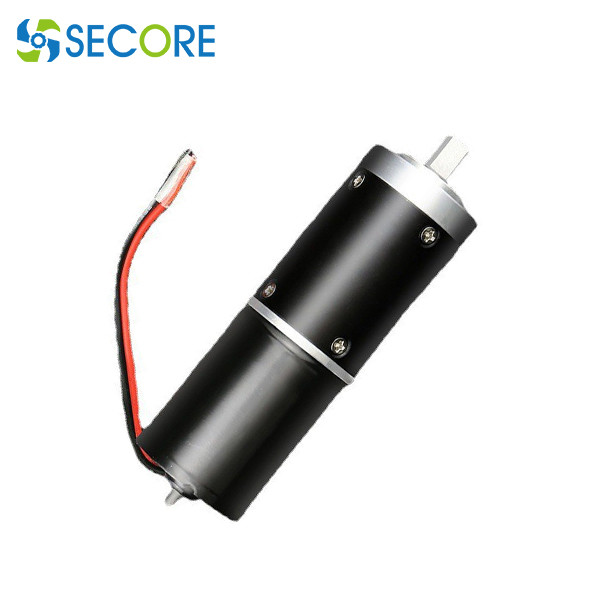

28mm Micro Coreless DC Motor Planetary Gear Motor Precision Metal Gearbox Ironless Motor

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 80pcs per carton or as request Delivery Time : 7-10 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Shenzhen Brand Name: SECORE
Certification: CE ROHS Model Number: CL2846-395

Detail Information

Rated Voltage: 24V Rated Power: 4.56W
Rated Torque: 11kg.cm / 156oz.in Free Load Speed: 60rpm
With Load Speed: 42rpm Gear Ratio: 1:139
Rated Current: 0.32A Motor Size: 28*46mm
Product Name: Mini Brush Coreless Planetary Gear Motor Application: Beauty Equipment, Power Tool, Medical Device
High Light:

28mm Micro Coreless Dc Motor

,

Metal Gearbox Micro Coreless Dc Motor

,

coreless Planetary Gear Motor

Product Description

28mm Micro Coreless Dc Planetary Gear Motor Precision Metal Gearbox Ironless Motor


Secore Planetary Coreless Gear Motor parameter:


Model VOLTAGE NO LOAD WITH LOAD gear ratio

1:___
Length L
SPEED
RPM
CURRENT
max A
SPEED
RPM
TORQUE
kg.cm mN.m oz.in
CURRENT
max A
Output
W
CL2846-395 24 2160 0.22 1512 0.4 39.2 5.555 0.32 6.2 3.7 73.3
CL2846-395 24 1530 0.1 1071 0.56 54.88 7.777 0.32 6.2 5.2 73.3
CL2846-395 24 580 0.23 406 1.3 127.4 18.054 0.32 5.58 13.7 81.4
CL2846-395 24 410 0.11 287 1.81 177.38 25.136 0.32 5.58 19.2 81.4
CL2846-395 24 290 0.11 203 2.55 249.9 35.413 0.32 5.58 27 81.4
CL2846-395 24 150 0.24 105 4.09 400.82 56.800 0.32 4.56 50.5 89.5
CL2846-395 24 110 0.11 77 5.75 563.5 79.853 0.32 4.56 71 89.5
CL2846-395 24 80 0.11 56 8.1 793.8 112.489 0.32 4.56 100 89.5
CL2846-395 24 60 0.11 42 11.26 1103.48 156.373 0.32 4.56 139 89.5
CL2846-395 24 40 0.25 28 12.85 1259.3 178.454 0.32 3.6 187.5 100.6
CL2846-395 24 30 0.12 21 17.75 1739.5 246.503 0.32 3.6 263 100.6
CL2846-395 24 20 0.12 14 25 2450 347.188 0.32 3.6 370 100.6
CL2846-395 24 15 0.12 10 35 3430 486.063 0.32 3.6 520 100.6
CL2846-395 24 10 0.12 7 49 4802 680.488 0.32 3.6 731 100.6

Gear ring material steel
Bearing at output ball bearings
Radial paly of shaft <0.05mm
Thrust play of shaft <0.2mm
Backlash at no load <2.0
Gear material Steel/powder alloy
Output shaft θ4.0 θ6.0 θ8.0 custom made
New weight 300g

Outline drawing

28mm Micro Coreless DC Motor Planetary Gear Motor Precision Metal Gearbox Ironless Motor 0

Strict raw material application
gear, plastic, gear + plastic

28mm Micro Coreless DC Motor Planetary Gear Motor Precision Metal Gearbox Ironless Motor 1

28mm Micro Coreless DC Motor Planetary Gear Motor Precision Metal Gearbox Ironless Motor 2
 Application

Coreless DC motors are ideal for a variety of dynamic applications, including automotive systems, cable pull systems, microscopes and electric screwdrivers, tattoo machines, golf carts and massage chairs. With a coreless motor, the possibilities for designers are endless. It includes robotics projects such as small positioning and pan/tilt systems. Medical devices such as prosthetics, insulin pumps, X-ray machines and laboratory equipment also benefit from the use of coreless motors. In addition, there are many applications in particularly demanding fields such as aerospace, defense and surveillance.
