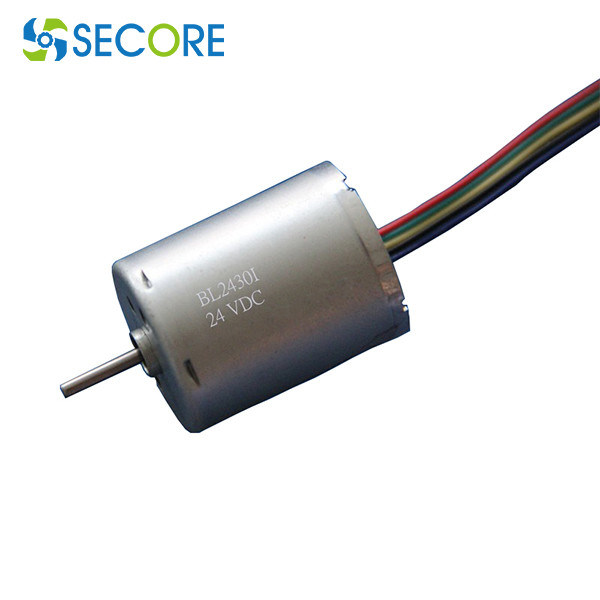

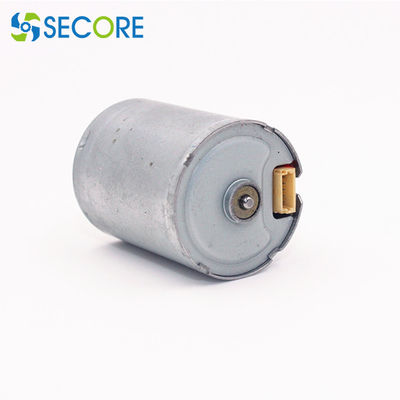

9000RPM High Speed 24 Volt BLDC Motor Pernanent Magnet For Vacuum Fan

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 12-15 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China,Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: BLS-2430I

Detail Information

Speed RPM: 9000 Or Customized Rated Voltage: 9-24V
Type: BLDC Motor, Brushless Electric DC Motor, DC Brushless Motor Typical Application: Fan, Valve, Pump, Electric Shaver, Vacuum Device
Continuous Current: 0.12A Model Number: BLS-2430I
Dimension: ∮24*30(mm) Construction: Pernanent Magnet
Efficiency: 70~85% Rated Torque: 48g.cm Or As Request
High Light:

24 volt bldc motor

,

Vacuum Fan 24 volt bldc motor

,

9000RPM high speed bldc motor

Product Description

24v high speed bldc brushless motor with pwm for vacuum fan



Main Characters:



1. Structure: Inner runner rotor+ball bearing

2. Size: Dia 24*L30mm

3. Shaft Dia: 5mm

4. Certification: ISO9001, ROHS

5. Rated Voltage:24V DC

6. Endplay: 0.3mm Max

7. Rotation: CW/CCW controllable

8. No load: 9700RPM 0.13A







MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
RATED SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A g.cm W g.cm A
BLS2430I-V1 5V~9V 9V 6086 0.13 4747 0.442 48.7 2.371 221.3 1.546
BLS2430I-V2 8V~16V 12V 7380 0.12 5830 0.438 53.1 3.174 252.7 1.636
BLS2430I-V3 8V~26V 24V 9737 0.09 7692 0.369 68.1 5.37 324.1

1.322





9000RPM High Speed 24 Volt BLDC Motor Pernanent Magnet For Vacuum Fan 0



TO BE TAILORED



Generally select the appropriate power, voltage, speed, torque and body size according to the actual situation (load, structure size, etc.), and then match the brushless drive according to the specific parameters of the selected DC brushless motor.



♦ Customized voltage, motor performance

♦ Customized mounting, shaft dimension, and lead configuration

♦ EMI/RFI suppression circuit

♦ Overload/thermal protection

♦ High temperature and waterproof option

♦ Integrated gearbox, controller, encoder and brake



If there is no suitable specifications, it can be customized according to actual needs.



About us



Shenzhen Secore Technology Co.,Ltd is professionally engaged in various of motors such as brushless dc motors, high voltage brushed dc motors, gear motors, servo motors, integrates R&D, mass production, sales and service with 25 lean production lines( currently 3 automatic production lines ), monthly capacity of continuous growing 3 million units and annual average sales value 40 million dollars.



9000RPM High Speed 24 Volt BLDC Motor Pernanent Magnet For Vacuum Fan 1



Motor designer –ANSOFT Finite element analysis



9000RPM High Speed 24 Volt BLDC Motor Pernanent Magnet For Vacuum Fan 29000RPM High Speed 24 Volt BLDC Motor Pernanent Magnet For Vacuum Fan 39000RPM High Speed 24 Volt BLDC Motor Pernanent Magnet For Vacuum Fan 4

Parts of Typical Application:



-Office apparatus and medical devices

• Printer, Copier, Projector, Shredder, fax ( paper cutter), computer peripheral, lifting socket etc.

• Sphygmomanometer, breath machine, cleaning pump, medical ventilator, medical bed, dental instrument, surgical robot etc

- Power tool and fitness equipment

• Electric screwdriver, Electric hydraulic pliers, Electric scissors

• Fascia gun, massage chair, treadmill

-Household appliances and personal care

• Air purifier, smart toilet, hair dryer, hair curler, tooth brush, vibration, rubdown machine, foot grinder, facial beauty equipment,     eyebrow tweezer, electric threading knife

• Blender, sweeper, window cleaner, small household appliances etc.
