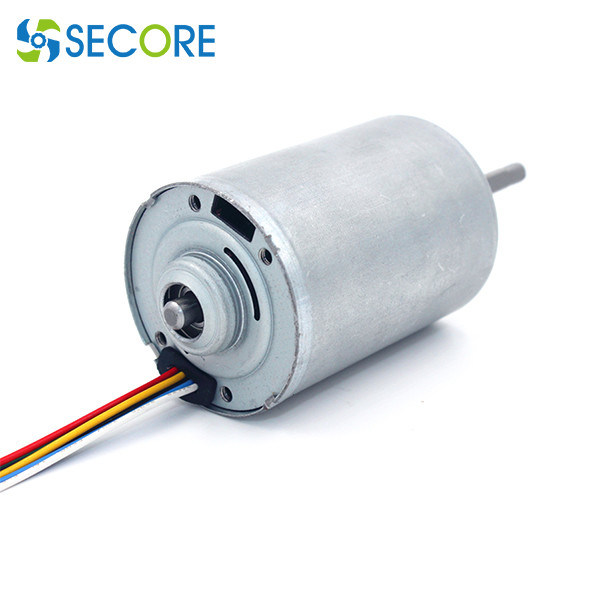

42*60mm 30watt Brushless DC Electric Motor 12v 24v Speed 4000rpm

Product Details:
Place of Origin: China,Guangdong
Brand Name: SECORE
Certification: CE ROHS
Model Number: BLS-4260I
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Negotiated The Price
Packaging Details: 500pcs per carton or as request
Delivery Time: 10-12 working days
Payment Terms: T/T, D/A
Supply Ability: 100000pcs per month

Detail Information

Speed: 4000rpm Or 8000rpm Or Customized Rated Torque: 760g.cm Or As Request
Type: Brushless Dc Motor, 12v 24v Bldc Motor Typical Application: Home Automation, Medical Device, Ceiling Fan Light
Continuous Current: 0.2A Model Number: BLS4260I
Dimension: ∮42*L60(mm) Construction: Pernanent Magnet
High Light:

4000rpm Brushless DC Electric Motor

,

30watt Brushless DC Electric Motor

,

4000rpm 12v 24v dc motor

Product Description

42*60mm 30watt 4000rpm brushless dc motor for game racing wheel



Brushless DC inrunner Motor spec :



Size: φ42.0* 60mm

Built-in driver

PWM pulse wide speed range

FG speed feedback signal

Low EMC,Low noise

Long life: 20000hrs

Speed 2500rpm-20000rpm,torque 6400g.cm



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
RATED SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A g.cm W g.cm A
BLS4260I-V1 8V~16V 12V 2038 0.15 1773 0.934 480.3 8.734 3694.3 6.184
BLS4260I-V2 8V~26V 18V 3690 0.2 3284 1.564 654.7 22.05 5951.6 12.6
BLS4260I-V3 8V~26V 24V 4280 0.2 3766 1.567 766.6 29.62 6388.1 11.59



42*60mm 30watt Brushless DC Electric Motor 12v 24v Speed 4000rpm 0

42*60mm 30watt Brushless DC Electric Motor 12v 24v Speed 4000rpm 1





42*60mm 30watt Brushless DC Electric Motor 12v 24v Speed 4000rpm 2



The brushless DC motor is composed of the motor body and the driver. The brushless DC motor uses Hall sensors to replace the carbon brush commutator. NdFeB is used as the permanent magnet material of the rotor. Compared with the general traditional DC motor, the performance of the brushless DC motor has great advantages, is the most ideal speed-regulating motor today.



TO BE TAILORED



♦ Customized voltage, motor performance

♦ Customized mounting, shaft shape and dimension, and lead configuration

♦ EMI/RFI suppression circuit

♦ Overload protection, thermal protection

♦ High temperature and waterproof option

♦ Integrated gearbox, controller, encoder and brake



If there is no suitable specifications, it can be customized according to actual needs.



Brushed motor vs brushless DC motors



Brushless motors have the advantages of brushed motors and are superior to brushed phones. Main features: low noise, long life, stable operation, no sparks, high efficiency, high dynamic response, strong reliability, etc.,

The application of permanent magnet brushless DC motors is increasing by about 15% every year. Under such circumstances, it is inevitable that brushless motors are gradually replacing other motors.



About us



Shenzhen Secore Technology Co.,Ltd is professionally engaged in various of motors such as brushless dc motors, high voltage brushed dc motors, gear motors, integrates R&D, mass production, sales and service with 25 lean production lines( currently 3 automatic production lines ), monthly capacity of continuous growing 3 million units and annual average sales value 40 million dollars.





42*60mm 30watt Brushless DC Electric Motor 12v 24v Speed 4000rpm 3



Motor designer –ANSOFT Finite element analysis

42*60mm 30watt Brushless DC Electric Motor 12v 24v Speed 4000rpm 4

Structure: static characteristics analysis, model, buckling, contact, prestress and vibration analysis
Heat: heat conduction characteristics of multifunctional structure
Dynamic: analysis of the movement state and stress of components
Vibration: Perform dynamic time, frequency, and random shock analysis



some of Our customers



42*60mm 30watt Brushless DC Electric Motor 12v 24v Speed 4000rpm 5





Typical Application:



Smart wearable devices watch,VR,AR,XR and etc.
Household application kitchen appliances, sewing machines, corn popper, vacuum cleaner, garden tool, sanitary ware, window curtain, intelligent closestool, sweeping robot, power seat, standing desk, electric sofa, TV, computer, treadmill, spyhole, cooker hood, electric drawer, electric mosquito net, intelligent cupboard, intelligent wardrobe, automatic soap dispenser, UV baby bottle sterilizer, lifting hot pot cookware, dishwasher, washing machine, food breaking machine, dryer, air conditioning, dustbin, coffee machine, whisk,smart lock,bread maker,Window cleaning robot and etc.
communication equipment 5G base station,video conference,mobile phone and etc.
Office automation equipments scanners, printers, multifunction machines copy machines, fax (FAX paper cutter), computer peripheral, bank machine, screen, lifting socket, display,notebook PC and etc.
Automotive products conditioning damper actuator, car DVD,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB, car tail gate electric putter, HUD, head-up display, vehicle sunroof, EPS, AGS, car window, head restraint, E-booster, car seat, vehicle charging station and etc.
Toys and models radio control model, automatic cruise control, ride-on toy, educational robot, programming robot, medical robot, automatic feeder, intelligent building blocks, escort robot and etc.
Medical equipments blood pressure meter, breath machine, medical cleaning pump, medical bed, blood pressure monitors, medical ventilator, surgical staplers, infusion pump, dental instrument, self-clotting cutter, wound cleaning pump for orthopedic surgery,electronic cigarette, eyebrow pencil,fascia gun, , surgical robot,laboratory automation and etc.
Industrials flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc.
Electric power tools electric drill, screwdriver,garden tool and etc.
Precision instruments optics instruments,automatic vending machine, wire-stripping machine and etc.
Personal care tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Consumer electronics camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc.
robots educational robot, programming robot, medical robot, escort robot and etc.
