Conditioning Damper Actuator 36mm Brushless Motor, DC Motor Brushless 12V

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China Brand Name: SECORE
Certification: CE ROHS Model Number: BLS-3675I

Detail Information

Speed: 4000RPM Or Customized Rated Torque: 195G.cm Or As Request
Continuous Current: 0.9A Or As Request Dimension: Φ36*75(mm)
Product Name: Brushless Dc Motors, Dc Brushless Motor, 48v Brushless Dc Motor Typical Application: Packing And Packaging, Air Condition Damper Actator, Conveying
High Light:

36mm brushless motor

,

12V 36mm brushless motor

,

36mm motor brushless 12v

Product Description

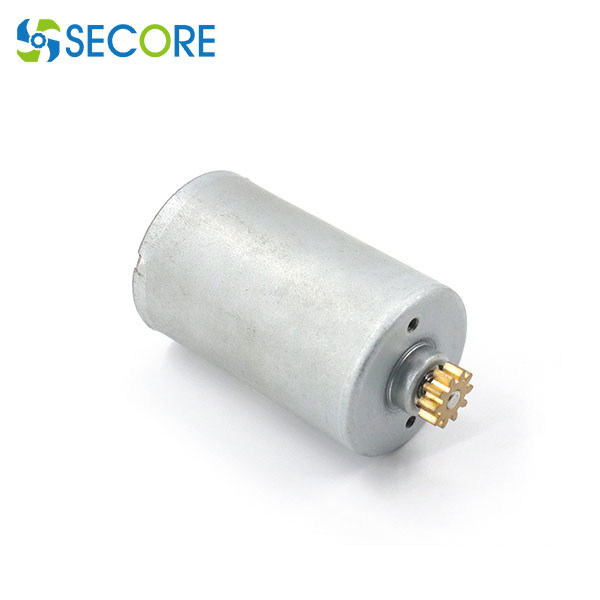

36mm BLDC Motor, Brushless Dc Motor 12V For Conditioning Damper Actuator



Main features:



1.OEM/ODM 36mm brushless motor
2.Low noise, long life,Built-in drive
3.Reverse rotation and Brake control
4.PWM Speed control and FG signal feedback
5.Can be available with planetary gearbox



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
RATED SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A g.cm W g.cm A
BLS3657I-V1 8V~16V 12V 4154 0.19 3448 0.904 196.9 6.963 1158.3 4.405
BLS3657I-V2 8V~26V 18V 6382 0.22 5425 1.174 267 14.85 1779.7 6.604
BLS3657I-V3 8V~26V 24V 8610 0.28 7230 1.572 384.6 28.53 2403.9 8.342



Conditioning Damper Actuator 36mm Brushless Motor, DC Motor Brushless 12V 0



What we make?



Secore provides custom engineering to design gear motors utilizing various motor type ( brushless DC motor, brushed DC motor, universal motor and other motors),integrated control & sensing, gear type(spur & helical, worm and planetary) and gearbox material to meet customers' expectation.



We could design the motor for you according to your actual needs.



Conditioning Damper Actuator 36mm Brushless Motor, DC Motor Brushless 12V 1





Conditioning Damper Actuator 36mm Brushless Motor, DC Motor Brushless 12V 2







Brushless DC ELectric Motor-Typical Application



-Office apparatus and medical devices

• Printer, Copier, Projector, Shredder, fax ( paper cutter ), computer peripheral, lifting socket etc.

• breath machine, medical cleaning pump, medical ventilator, medical bed, dental instrument, surgical robot etc

- Power tool and fitness equipment

• Electric screwdriver, Electric hydraulic pliers, Electric scissors,

• Fascia gun, massage chair, treadmill

-Household appliances and personal care

• Air purifier, smart toilet, hair dryer, hair curler, tooth brush, vibration, rubdown machine, foot grinder, facial beauty equipment, eyebrow tweezer, electric threading knife

• Blender, sweeper, window cleaner, small household appliances etc.





FAQ



Q1.What kind of motors you can provide?

A: Full range of precision gearbox, diameters 6mm,8mm,10mm,12mm,13mm,16mm,20mm,22mm,24mm,28mm,32mm,36mm,37mm,42mm,48mm, output speed 5-3000rpm,reduction ratio 5-1500, output torque 1g.cm to 500kg.cm


Q2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirement as per torque, lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you may, please share your expected performance and specific requirement for us better to provide a solution and closest offer.



Q3. What's the lead time for regular order?
A: For mass orders, the standard lead time is 25-40 days and LT can be shorter or longer based on different model, period and quantity.



Q4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.


Q5. Can I get some samples?
A: Yes, we are glad to offer samples for testing before the initial order. We’re afraid we don’t make sample for personal use or replacement.
