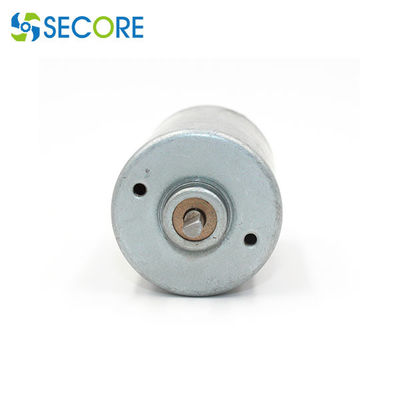

0.28A Beverage Dispensing Inner Rotor BLDC Motor 12V 24V Brushless

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Guangdong, China Brand Name: SECORE
Certification: CE ROHS Model Number: BLS3675I

Detail Information

Speed: 3500RPM Or Customized Rated Torque: 196G.cm Or As Request
Continuous Current: 0.6A Or As Request Diameter * Len: Φ36*75(mm)
Keyword: Brushless 24v Dc Motors, Inner Rotor BLDC Motor, 18V Brushless Dc Motor Typical Application: Video Games, Optical Disk Drives, RC And Power Toys.
High Light:

24V Inner Rotor BLDC Motor

,

0.28A Inner Rotor BLDC Motor

,

0.28A brushless 24v dc motor

Product Description

12V 24V Brushless DC Inner Rotor Motor For Beverage Dispensing



Specifications :



1. Voltage: DC 24V
2. No load speed: 7250±10%rpm
3. No load current: 0.28A
4. Diameter 36mm, length 75mm, shaft dia 5.0mm
5. Material: plastic gear and metal DC motor
6. Weight: 220g Approx
7. Application: Robot, Bike lock, Home Appliance, Door Lock etc



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
RATED SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A g.cm W N.m A
BLS3657I-V1 8V~16V 12V 4154 0.19 3448 0.904 196.9 6.963 1158.3 4.405
BLS3657I-V2 8V~26V 18V 6382 0.22 5425 1.174 267 14.85 1779.7 6.604
BLS3657I-V3 8V~26V 24V 8610 0.28 7230 1.572 384.6 28.53 2403.9 8.342



0.28A Beverage Dispensing Inner Rotor BLDC Motor 12V 24V Brushless 0



What are main parameters for selecting an electric motor?



  1. Select the correct voltage, expected performance of the motor
  2. Confirm the peak current of the brushless drive.
  3. Define the working environment (such as temperature, high humidity, etc.).
  4. The requirement of power supply insulation.
  5. The outer diameter and height of the motor, the diameter of the output shaft, whether it needs to be equipped with a reducer and other related parts.



Internal rotor vs external rotor



Inner rotor motors place the stator on the outside with the rotor on the inside

Outer rotor motors place the stator on the inside with the rotor on the outside

Inner rotor motors are longer with a smaller diameter

Outer rotor motors are shorter with a larger diameter

Outer rotor motors tend to be more efficient

Most handheld power tools use inner rotor designs



some of Our customers



0.28A Beverage Dispensing Inner Rotor BLDC Motor 12V 24V Brushless 1



0.28A Beverage Dispensing Inner Rotor BLDC Motor 12V 24V Brushless 2







Brushless DC ELectric Motor-Typical Application



Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc.

Household electrical appliance : lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer, kitchen appliances, etc.,

The automotive industry: truck tarp systems, pumps, electric chair, jack, etc.

Recreational equipment: swimming pool cleaners, pool cover systems, golf trolley, amusement machines and other places of entertainment, etc.

Office automation: automatic doors, elevator doors, roller shutter, curtains, punch machines, financial instruments, etc.

Medical and health-care equipment: all kinds of massage health care equipment, medical equipment, etc.





FAQ



Q1.What kind of motors you can provide?

A: Full range of precision gearbox, diameters 6mm,8mm,10mm,12mm,13mm,16mm,20mm,22mm,24mm,28mm,32mm,36mm,37mm,42mm,48mm, output speed 5-3000rpm,reduction ratio 5-1500, output torque 1g.cm to 500kg.cm


Q2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirement as per torque, lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you may, please share your expected performance and specific requirement for us better to provide a solution and closest offer.



Q3. What's the lead time for regular order?
A: For mass orders, the standard lead time is 25-40 days and LT can be shorter or longer based on different model, period and quantity.



Q4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.


Q5. Can I get some samples?
A: Yes, we are glad to offer samples for testing before the initial order. We’re afraid we don’t make sample for personal use or replacement.
