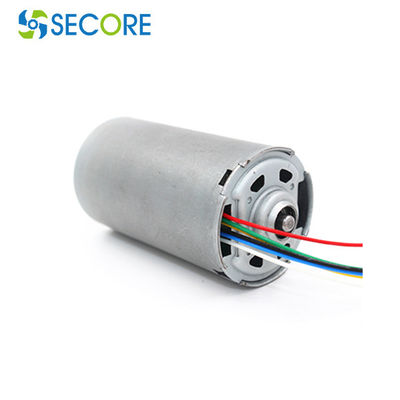

Venlitation System EC Inner Rotor BLDC Motor Brushless 12V Diameter 42mm

Product Details:
Place of Origin: Guangdong, China
Brand Name: SECORE
Certification: CE ROHS
Model Number: BLS4275I
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Negotiated The Price
Packaging Details: 500pcs per carton or as request
Delivery Time: 10-12 working days
Payment Terms: T/T, D/A
Supply Ability: 100000pcs per month

Detail Information

Speed: 6000RPM Or Customized Rated Torque: 500G.cm Or As Request
Continuous Current: 0.88A Or As Request Diameter * Len: Φ42*75(mm)
Keyword: Motor Brushless 12v, Driver Built BLDC Motor, 48v Brushless Motor Typical Application: Ticket Printer, Model Train, Household Robot, Fast Feeder
High Light:

Inner Rotor BLDC Motor 42mm

,

12V Inner Rotor BLDC Motor

,

EC brushless motor dc 12v

Product Description

12V Brushless Dc Motor, Inrunner EC Motor For Venlitation System



Specifications :



1. Voltage: DC 12V
2. No load speed: 36200±10%rpm
3. No load current: 0.25A
4. Diameter 42mm, length 75mm, shaft dia 5.0mm
5. Material: plastic gear and metal DC motor
6. Weight: 340g Approx
7. Application:Robot, Bike lock, Home Appliance, Door Lock etc



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
RATED SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A g.cm W g.cm A
BLS4275I-V1 8V~16V 12V 3620 0.25 3044 1.326 477.5 13.98 2817.7 7.012
BLS4275I-V2 8V~26V 18V 5425 0.31 4625 1.726 579.4 27.48 3905.1 9.867
BLS4275I-V3 8V~26V 24V 4351 0.18 3705 1.084 579.5 22.07 3902.2 6.234


Venlitation System EC Inner Rotor BLDC Motor Brushless 12V Diameter 42mm 0





What are main parameters for selecting an electric motor?



Generally select the appropriate power, voltage, speed, torque and body size according to the actual situation (load, structure size, etc.), and then match the brushless drive according to the specific parameters of the selected DC brushless motor.



The parameters are: DC power supply voltage, rated output power, rated load torque, rated operating speed and the direction of rotation of the brushless DC motor: clockwise, counterclockwise or both are required, and the continuous duty cycle of the motor can be in accordance with a certain time operation, the environment that the DC brushless motor is adapted to: indoor, outdoor, ocean, high pressure, high temperature, high humidity, corrosive gas, the structure of the flange has two types of structure, square and round, and the length of the body .





some of Our customers



Venlitation System EC Inner Rotor BLDC Motor Brushless 12V Diameter 42mm 1



Venlitation System EC Inner Rotor BLDC Motor Brushless 12V Diameter 42mm 2

Brushless DC ELectric Motor-Typical Application



-Office apparatus and medical devices

• Printer, Copier, Projector, Shredder, fax ( paper cutter ), computer peripheral, lifting socket etc.

• breath machine, medical cleaning pump, medical ventilator, medical bed, dental instrument, surgical robot etc

- Power tool and fitness equipment

• Electric screwdriver, Electric hydraulic pliers, Electric scissors,

• Fascia gun, massage chair, treadmill

-Household appliances and personal care

• Air purifier, smart toilet, hair dryer, hair curler, tooth brush, vibration, rubdown machine, foot grinder, facial beauty equipment, eyebrow tweezer, electric threading knife

• Blender, sweeper, window cleaner, small household appliances





FAQ



Q1.What kind of motors you can provide?

A: Full range of precision gearbox, diameters 6mm,8mm,10mm,12mm,13mm,16mm,20mm,22mm,24mm,28mm,32mm,36mm,37mm,42mm,48mm, output speed 5-3000rpm,reduction ratio 5-1500, output torque 1g.cm to 500kg.cm


Q2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirement as per torque, lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you may, please share your expected performance and specific requirement for us better to provide a solution and closest offer.



Q3. What's the lead time for regular order?
A: For mass orders, the standard lead time is 25-40 days and LT can be shorter or longer based on different model, period and quantity.



Q4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.


Q5. Can I get some samples?
A: Yes, we are glad to offer samples for testing before the initial order. We’re afraid we don’t make sample for personal use or replacement.
