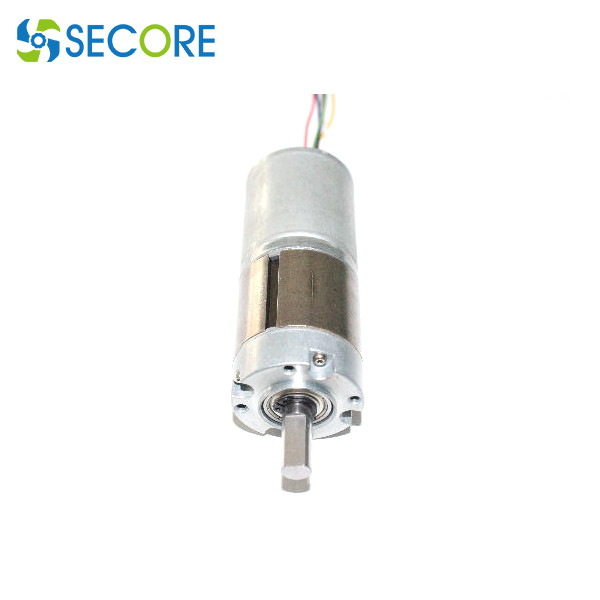

30rpm Planetary Gear Motor 12V , Brushless 24V DC Gear Motor High Torque

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 100pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China,Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: BLS3640I-GB004

Detail Information

Speed: 30rpm 40rpm Or Customized Rated Voltage: 24V Or 12V
Rated Torque: 1.2-1.6 N.m Or As Request Gear Type: Planetary, Worm, Spur, Helical, Magnetic Gearbox
Dimension: ∮36*40(mm) Commutation: Brushless, Brushed
Keyword: Brushless Motor With Gearhead, Planetary Geared Motor, Used: Electric Vehicle, Electric Toy, Sex Toy, Home Automation
High Light:

30rpm planetary gear motor 12v

,

High Torque planetary gear motor 12v

,

24v dc gear motor high torque

Product Description

30rpm Brushless DC Gear Motor With Gearhead And Customized High Torque Density



Main features:



Size: φ36.0*40mm-36.0*93mm

Reducer ratio:1:3.6~1:1608

PWM pulse wide speed range

Clockwise/counter-clockwise rotation

FG speed feedback signal







MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
RATED SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A N.m W N.m A
BLS3640I-GB-V1 8V~16V 12V 48 0.16 48 0.818 1.09 6.028 6.88 4.271
BLS3640I-GB-V2 8V~26V 18V 141 0.19 120 1.071 0.79 13.055 5.29 6.066
BLS3640I-GB-V3 8V~26V 24V 103 0.247 85 1.186 1.73 20.205 10.17 5.769



30rpm Planetary Gear Motor 12V , Brushless 24V DC Gear Motor High Torque 0





What we make?



Secore provides custom engineering to design gear motors utilizing various motor type ( brushless DC motor, brushed DC motor, universal motor and other motors),integrated control & sensing, gear type(spur & helical, worm and planetary) and gearbox material to meet customers' expectation.



We could design the motor for you according to your actual needs.



Motor designer –ANSOFT Finite element analysis



30rpm Planetary Gear Motor 12V , Brushless 24V DC Gear Motor High Torque 130rpm Planetary Gear Motor 12V , Brushless 24V DC Gear Motor High Torque 230rpm Planetary Gear Motor 12V , Brushless 24V DC Gear Motor High Torque 3



Advantage of ANSOFT electromagnetic software :



Optimize motor performance and efficiency
Optimize the electromagnetic field distribution of the motor
Reduce motor cogging torque, vibration and noise
Significantly improve the reliability of the motor



Typical Application:



-Office apparatus and medical devices
• Printer, Copier, Projector, Shredder
• Sphygmomanometer, sputum suction, Medical Atomizer

- Power tool and fitness equipment

• Electric screwdriver, Electric hydraulic pliers, Electric scissors,
• Fascia gun, massage chair, treadmill, electric skin massager
-Household appliances and personal care
• Air purifier, smart toilet, hair dryer, hair curler, slicer, Meat mincer
• Blender, sweeper, window cleaner, small household appliances
