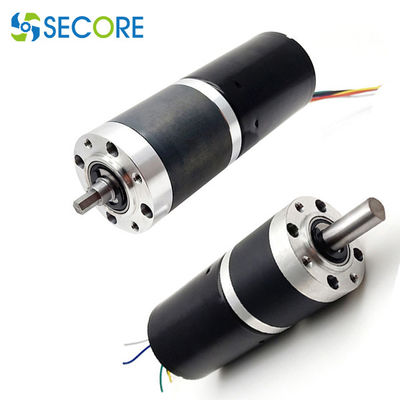

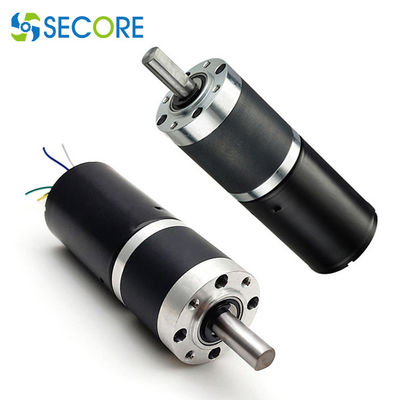

42mm Planetary Bldc Gear Motor 12V 24V 2.6A For Electronics Lock
42mm Planetary Bldc Gear Motor 12V 24V 2.6A For Electronics Lock 42mm Planetary Bldc Gear Motor 12V 24V 2.6A For Electronics Lock 42mm Planetary Bldc Gear Motor 12V 24V 2.6A For Electronics Lock 42mm Planetary Bldc Gear Motor 12V 24V 2.6A For Electronics Lock
Contact Now

42mm Planetary Bldc Gear Motor 12V 24V 2.6A For Electronics Lock

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 12-20 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Guangdong Brand Name: SECORE
Certification: ISO9001 Model Number: BL4260-GB

Detail Information
No-load Speed: 35RPM Rated Voltage: 12V
Rated Torque: 50kg.cm Rated Current: 2.6A
Rated Speed: 24rpm Motor Size: 42*60mm
Gearhead Diameter Length: 42mm * Optional L Motor Type: Planetary Brushless Gear Motor
Product Name: Mini Bldc Motor With Reduction, High Torque Brushless 12v Motor Typical Application: Electric Window, Intelligent Robot, Automative Device, AVG
High Light:

Planetary Bldc Gear Motor

,

Electronics Lock Bldc Gear Motor

,

2.6A Planetary Gear Motor

Product Description

Built-In Driver 42mm Planetary Bldc Gear Motor 12V 24V For Electronics Lock



Main features:



-Voltage: 12V 24V

-Size: φ42*60mm motor --42mm OD * optional length gearhead

- Shaft diameter: 6mm

- Shaft length: 14mm



Parameters for motor:



Model # RATED Voltage NO LOAD AT MAXIMUM EFFICIENCY STALL
SPEED CURRENT SPEED TORQUE CURRENT Out. Power TORQUE CURRENT
VDC ±10% r/min mA ±10% r/min g.cm A W g.cm A
BL4260-V1 12 5000 300 3400 500 2.5 17 1500 4
BL4260-V2 24 5000 140 3500 500 1.3 18 1700 4


Parameters with gearbox:

gear ratio 4 19 51 100 139 189 264 369 516 720
no-load Speed ( rpm ) 12V 1200 250 96 50 35 25 19 13 10 7
rated Torque (kg.cm ) 1.8 8 18 35 50 56 60 60 60 60
rated Speed ( rpm ) 850 180 65 34 24 18 13 9 9 6
no-load Speed ( rpm ) 24V 1200 250 96 50 35 25 19 13 10 7
rated Torque (kg.cm ) 1.8 8 18 35 50 56 60 60 60 60
rated Speed ( rpm ) 890 190 68 35 24 18 14 10 9 6

Motor mounting sizes:

42mm Planetary Bldc Gear Motor 12V 24V 2.6A For Electronics Lock 0



42mm Planetary Bldc Gear Motor 12V 24V 2.6A For Electronics Lock 1

42mm Planetary Bldc Gear Motor 12V 24V 2.6A For Electronics Lock 2










Tag:

12V 24V brushless dc gear motor

BLDC motor with gearbox

customized dc brushless reduction motor
