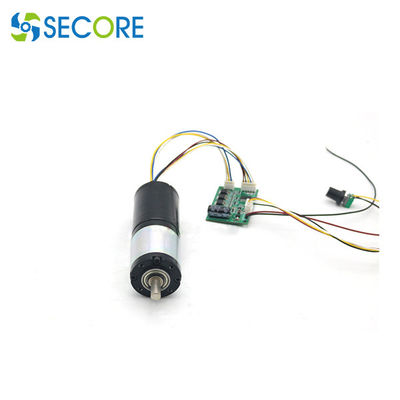

Medical Robot Planetary Gear Brushless DC Gear Motor 4000RPM speed 12V

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 15-18 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: BLH4260-GB

Detail Information

Speed: 800-3000rpm Or Customized Rated Voltage: 12V 24V
Rated Torque: 3.5kg.cmor As Request Diemeter * Length: 42*60(mm)
Type: 12v Planetary Gear Motor, Mini Gear BLDC Motor, 12v Dc Brushless Motor High Torque Typical Application: Vacuum Cleaners, Medical Robot, Power Tools, Communication Equipment
High Light:

4000RPM Brushless DC Gear Motor

,

Medical Robot Brushless DC Gear Motor

,

4000RPM 12v planetary gear motor

Product Description

Medical Robot BLDC planetary Gear Motor 4000RPM With Central Rotor Shaft



Main features:



It is a brushless gear reducer composed of a miniature permanent magnet brushless DC motor with a diameter of 42mm and a motor length of 60mm plus an central rotor shaft gearbox, eccentric is optional. The drive can be built-in or external. This brushless electric motor has the following Features:

1. Long life

2. Small size

3. Ultra-quiet

4. Low air pressure, high torque, equipped with planetary gearboxes with different reduction ratios

5. Low energy consumption, in line with EU environmental protection and energy saving requirements, motor efficiency as high as 80-90%, stable performance with long life.

6. Low noise, the motor runs smoothly, and the noise is lower than 35dB.

7. Reduction ratio: 3.7, 5, 13, 18, 25, 49, 67, 92, 125, 181, 246, 336, 458, 625

8. Internal and external drives can be installed



Dimension:

Motor diameter: 42mm ( customizable )

Motor length: 60 mm  ( customizable )

shaft diameter: 7mm  ( customizable )

Weight: 285g  ( customizabable )

Provide motor size, lead requirements, working voltage, no-load conversion, no-load current, load, stall current, etc, TO TAILOR YOUR MOTOR.



Medical Robot Planetary Gear Brushless DC Gear Motor 4000RPM speed 12V 0

BLH4260 Operating voltage: DC12V Power: 12W
reduction ratio 1:3.7 1:5 1:14 1:18 1:25 1:49 1:67 1:92 1:125 1:181 1:246 1:336 1:458 1:625
no load rpm 1080 800 307 222 160 81 59 43 32 22 16 12 8 6
rated kg.cm 3 3.5 9 12 17.5 34 46 64 70 70 70 70 70 70
rated rpm 540 400 152 111 80 40 30 22 16 11 8 6 4 3
rated loading current ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.0
cut-off protection
current (A)
3A automatic power off, need to reconnect the open circuit power supply to run



BLH4260 Operating voltage: DC24V Power: 30W
reduction ratio 1:3.7 1:5 1:13 1:18 1:25 1:49 1:67 1:92 1:125 1:181 1:246 1:336 1:458 1:625
no load rpm 2160 1600 610 440 310 160 119 86 64 44 32 24 17 12
rated kg.cm 3 3.5 9 12 17.5 34 46 64 70 70 70 70 70 70
rated rpm 1620 1200 450 333 230 120 89 63 48 33 24 20 13 9
rated loading current ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.0
cut-off protection
current (A)
3A automatic power off, need to reconnect the open circuit power supply to run



MOTOR DESIGNER



Medical Robot Planetary Gear Brushless DC Gear Motor 4000RPM speed 12V 1

Medical Robot Planetary Gear Brushless DC Gear Motor 4000RPM speed 12V 2





How to select the suitable gear motor?



1.Know your application requirements for your gear motor;

Mounting space, Input power source as voltage, current, frequency, weight, life expectancy, speed, torque, operation environment etc.



2. Select the proper motor;

The gear type you are interested in, such as a universal, brushless DC, AC induction, or a permanent magnet gear motor



3. Know the speed and torque requirements of the load to be driven

To ensure your gear motor is the right size for your intended application, it’s vital to know your output speed, starting and running torque.





Typical Application:





Tarp Gear Motors Slow Juicer Motors
Curtain & Window Motors Robot Pool Cleaner Motors
Door & Gate Motors Robot Lawn Mower Motors
Automatic Pool Cover Motors Solar Tracking System Motors
