Car Trunk Lift Brushless DC Motor High Torque Low Speed Motor 12V Brushless Low Noise

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 15-18 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: BLS4260I-GB

Detail Information

Speed: 200rpm Or Customized Rated Voltage: 12V
Rated Torque: 2.2(N.m)or As Request Diemeter * Length: 42*60(mm)
Construction: Pernanent Magnet Commutation: Brushless
Type: 200 Rpm Gear Motor, Dc Brushless Motor, Brushless Planetary Gear Motor Typical Application: Car Lift Trunk, Trunk, Sliding Door, Automatic Door
High Light:

Trunk Lift motor 12v brushless

,

Reducer motor 12v brushless

,

Reducer 200 rpm dc motor

Product Description

Low Noise Brushless Dc Geared Reducer Motor With Low Speed For Car Trunk Lift



Main features:



-Size: φ42.0* 60.0mm-28.0*80mm

-Built-in driver

-PWM pulse wide speed range

-Clockwise/counter-clockwise rotation

-FG speed feedback signal

-Low EMC / EMI / noise

-Long life: 20000hrs Min.

-Precision and low noise brushless motor with gearbox.

-Design competence for controller board of brushless motor

-Provide OEM&ODM services with a full range of BLDC motor platform
-Consistency assurance of product quality





MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
RATED SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A N.m W N.m A
BLS4260I-GB-V1 8V~15V 12V 33 0.19 26 0.78 3.2 12.91 16.3 3.25
BLS4260I-GB-V2 8V~26V 18V 36 0.35 24 2.51 7.4 24.32 43.6 6.02
BLS4260I-GB-V3 8V~26V 24V 170 0.32 131 2.56 2.6 35.01 6.4 6.22

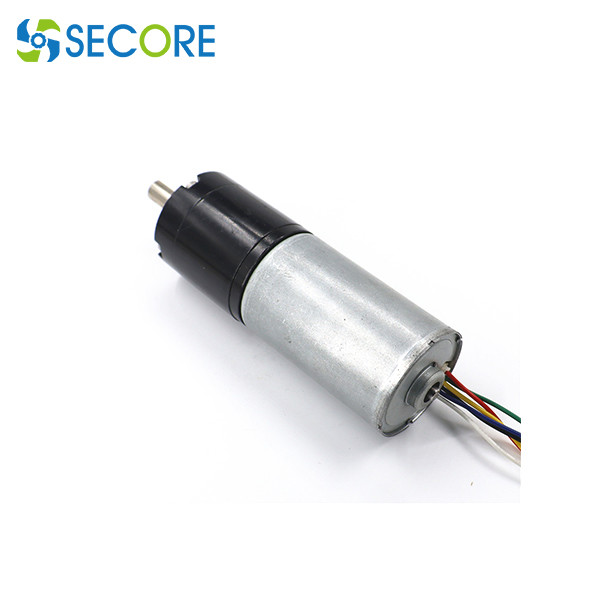

Car Trunk Lift Brushless DC Motor High Torque Low Speed Motor 12V Brushless Low Noise 0



What are main parameters for selecting an electric motor?



Generally select the appropriate power, voltage, speed, torque and body size according to the actual situation (load, structure size, etc.), and then match the brushless drive according to the specific parameters of the selected DC brushless motor.



The parameters are: DC power supply voltage, rated output power, rated load torque, rated operating speed and the direction of rotation of the brushless DC motor: clockwise, counterclockwise or both are required, and the continuous duty cycle of the motor can be in accordance with a certain time operation, the environment that the DC brushless motor is adapted to: indoor, outdoor, ocean, high pressure, high temperature, high humidity, corrosive gas, the structure of the flange has two types of structure, square and round, and the length of the body.



How to select the suitable gear motor?



1.Know your application requirements for your gear motor;

Mounting space, Input power source as voltage, current, frequency, weight, life expectancy, speed, torque, operation environment etc.



2. Select the proper motor;

The gear type you are interested in, such as a universal, brushless DC, AC induction, or a permanent magnet gear motor



3. Know the speed and torque requirements of the load to be driven

To ensure your gear motor is the right size for your intended application, it’s vital to know your output speed, starting and running torque.



Some of our customers

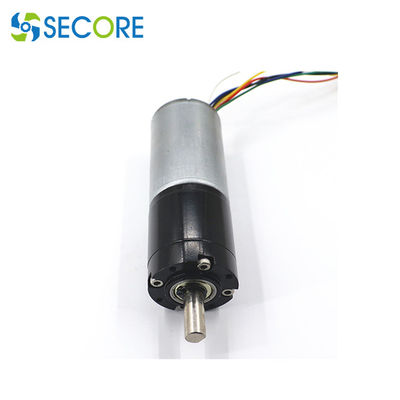

Car Trunk Lift Brushless DC Motor High Torque Low Speed Motor 12V Brushless Low Noise 1

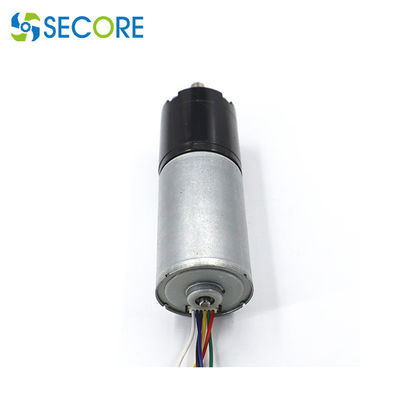

Car Trunk Lift Brushless DC Motor High Torque Low Speed Motor 12V Brushless Low Noise 2

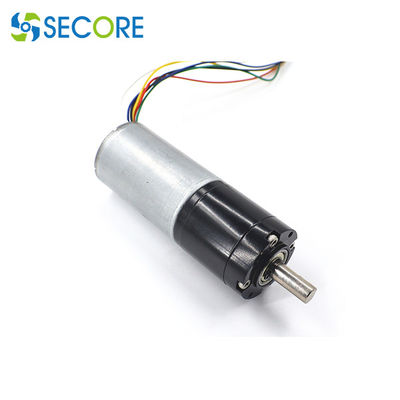

Car Trunk Lift Brushless DC Motor High Torque Low Speed Motor 12V Brushless Low Noise 3

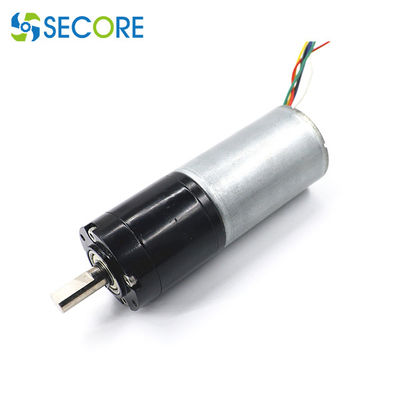

Car Trunk Lift Brushless DC Motor High Torque Low Speed Motor 12V Brushless Low Noise 4

Typical Application:



-Office apparatus and medical devices
• Printer, Copier, Projector, Shredder
• Sphygmomanometer

- Power tool and fitness equipment

• Electric screwdriver, Electric hydraulic pliers, Electric scissors,
• Fascia gun, massage chair, treadmill
-Household appliances and personal care
• Air purifier, smart toilet, hair dryer, hair curler
• Blender, sweeper, window cleaner, small household appliances
