12V 17000rpm Speed Carbon Brush Motor DC Brushed For Power Tool

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 100pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China,Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: RS380

Detail Information

Speed RPM: 20000 Or Customized Rated Voltage: 6V 24V
Rated Torque: 110 G.cm Or As Request Continuous Current: 0.5-3.3A
Construction: Pernanent Magnet Commutation: Brushed
Output: 40W Apprx Weight: 75g Apprx
Product Name: Low Volts DC Motor, Brushed DC Motor, Permanent Magnet Dc Motor Usage: Home Appliances,office Automation, Power Tools
High Light:

12V carbon brush motor dc

,

17000rpm carbon brush motor dc

,

12v brushed dc motor

Product Description

12V 17000rpm Carbon Brushed Permanent Magnet DC Motor For Power Tool



Construction of motor:

  • Two-pole stator
  • SR ferrite permanent magnet
  • 3, 5, 7, 8, 9 and 12 slots armature
  • Silicone steel lamination with epoxy coating
  • High-carbon steel shaft
  • Cu-Ag alloy commentator
  • Copper graphite brushes
  • Cu leaf brush commutation system
  • SECD round/flat-shaped housing
  • SECD end cap/PA66 and fiber end cap
  • Cylinder (self-aligning) sintered bush
  • 155° (class F) copper wire



MODEL SPEC VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
A B Operating
range
RATED SPEED CURRENT SPEED CURRENT OUTPUT TORQUE TORQUE CURRENT
r/min A r/min A W G.CM G.CM A
RS385 57 16.5 12.0-30.0V 24VDC 21500 0.24 17200 1.25 19.41 110 525 5.07
RS380 57 16.5 2.4-9.0V 6.0VDC 14400 0.5 11900 3.35 13.44 109.0 630 16.9



Customized as expectation:



Carbon Brush Motor is a rotary electric machine that includes a brush device that converts electrical energy into mechanical energy (electric motor) or converts mechanical energy into electrical energy (generator). Brushed motor is the basis of all motors. It has the characteristics of quick start, timely braking, smooth speed regulation in a wide range, and relatively simple control circuit.



Our brushed DC Motors can be customized in the range of 7.2 ~ 230V and 40~100,000rpm, and are fully used in the fields of household appliances, automation, medical healthcare and power tools, such as: hand blender, coffee machine, vacuum cleaner, Robot, etc.

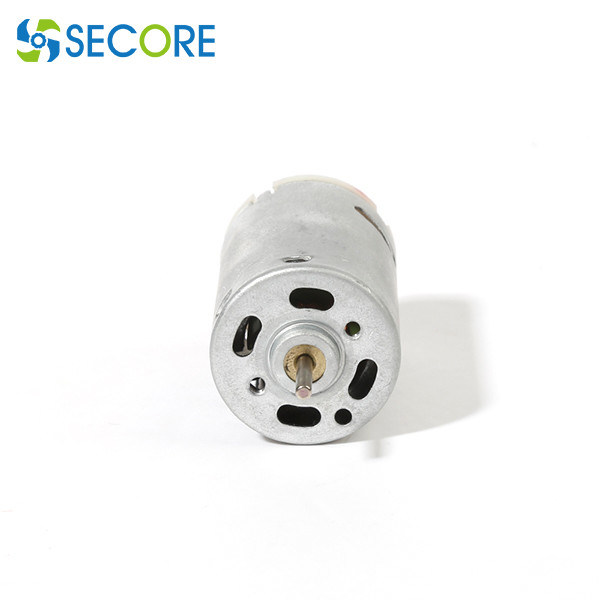

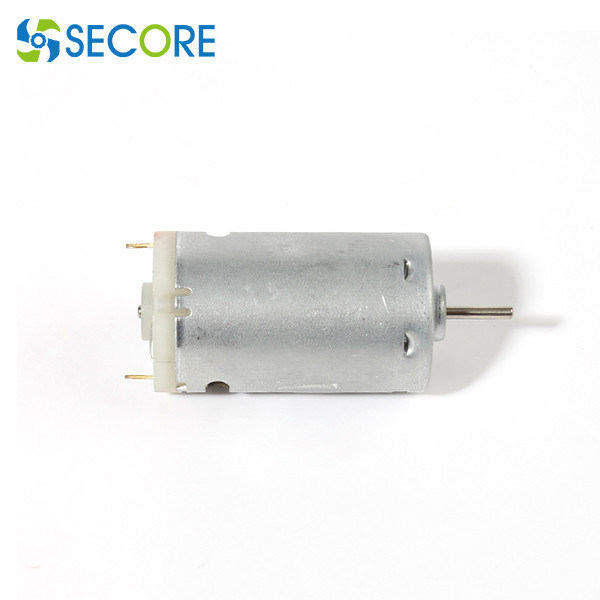

12V 17000rpm Speed Carbon Brush Motor DC Brushed For Power Tool 012V 17000rpm Speed Carbon Brush Motor DC Brushed For Power Tool 1



Typical Application:



Medical - Powered surgical instruments, Dental hand tools, Infusion, Volumetric & Insulin Pumps, Diagnostic &                        scanning equipment
Security & Access - Security cameras, Locks, Bar code readers, Paging systems
Aerospace & Defense - Cockpit gauge, Indicators, Satellites, Optical scanners
Robotics & Factory Automation - Conveyors, Remote controlled vehicles, Industrial robots
Power Hand Tools - Shears, Pruning hand tools, Nail guns
Electronic Assembly Surface Mount Equipment - Electronic assembly, Robotics and Automated machinery
