Product Description

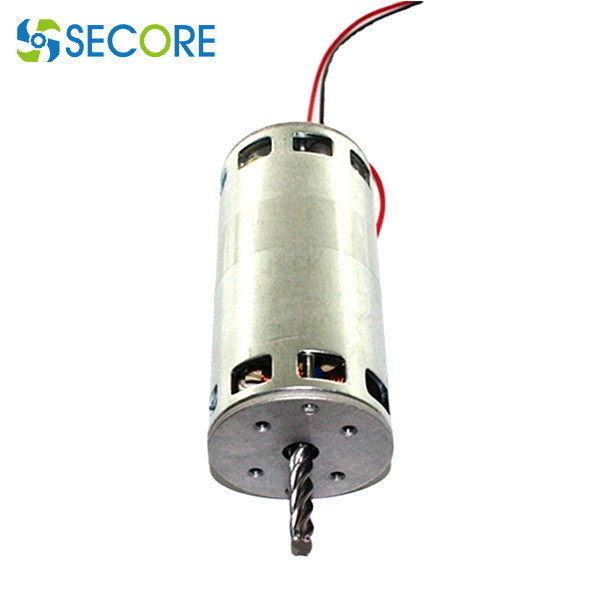

170W 230V Brushed Permanent Magnet DC Motor For Paper Shredder
Specifications of the dc shredder motor:
Weight: 500g Approx Voltage:100v-230v
Speed:3000-8000rpm current:0.7A Torque:200m.Nm
Applications: shredder,hand blender,home appliance
| MODEL |
SPEC |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
| A |
B |
Operating
range |
RATED |
SPEED |
CURRENT |
POWER |
SPEED |
CURRENT |
OUTPUT |
TORQUE |
| r/min |
A |
W |
r/min |
A |
W |
m.Nm |
| DC4435 |
100 |
33 |
100V~240V |
230V |
7000 |
0.17 |
30 |
5150 |
0.91 |
181 |
202 |
| DC4450 |
116 |
34 |
100V~240V |
230V |
5000 |
0.13 |
24 |
3950 |
0.42 |
82.5 |
145 |
| DC4460 |
126 |
34 |
100V~240V |
230V |
5500 |
0.35 |
32 |
4200 |
1.72 |
178 |
270
|
DC Motor Technical Parameter/ DC Motor Performance Curve:
Our brushed DC Motors can be customized in the range of 7.2 ~ 230V and 40~100,000rpm, and are fully used in the fields of household appliances, automation, medical healthcare and power tools, such as: hand blender, coffee machine, vacuum cleaner, Robot, etc.
Combination: Precision Gearboxs, Drive Electronics and Encoders
we offer DC motors with precision gearboxs, high-resolution encoders and high-performance drive electronics. Our team (sales and engineers) will help you find the DC motor that is perfectly matched to your requirements.
If there is no suitable specifications, it can be customized according to actual needs.
Typical Application:
-Office apparatus and medical devices
• Printer, Copier, Projector, Shredder, Scanner
• Sphygmomanometer, Medical Stirrer, Medical Pump
- Power tool and fitness equipment
• Electric scissors,Water Pump, Vacuum Pump,Oxyen Generator
• Fascia gun, massage chair, treadmill
-Household appliances and personal care
• Air purifier, smart toilet, hair dryer, hair curler, fanner
• Blender, sweeper, window cleaner, small household appliances
