6000rpm Inrunner Brushless Motor , Electric Window DC 3 Phase Motor

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 100pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China Brand Name: SECORE
Certification: CE ROHS Model Number: BLS-2847I

Detail Information

Speed: 6000RPM Or Customized Rated Torque: 122g.cm Or As Request
Continuous Current: 0.93A Or As Request Diameter*Len: 28*47(mm)
Construction: Pernanent Magnet Weight: 115g
Keyword: Brushless Dc Motor Controller, Mc33035, Brushless Dc Motor Price Typical Application: Dc Brushless Fan, Brushless Fan, Brushless Dc Electric Motor
High Light:

inrunner brushless motor

,

6000rpm inrunner brushless motor

,

6000rpm dc 3 phase motor

Product Description

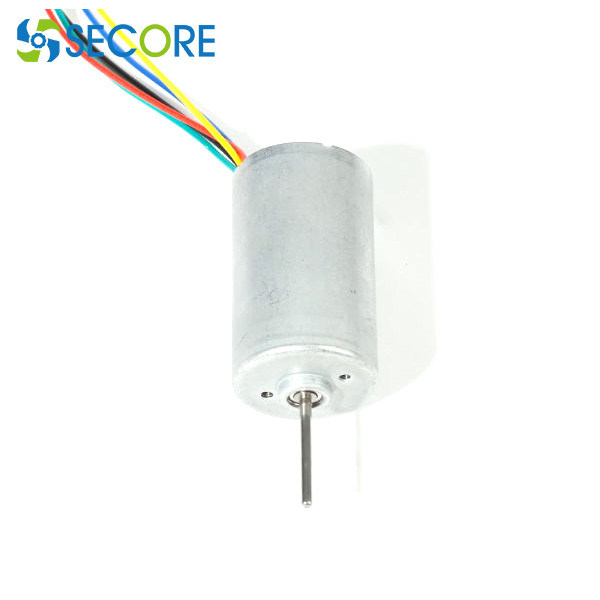

DC Brushless Motor, Inner Rotor BLDC Motor 6000rpm For Electric Window



Specifications :



1. Diameter * Length: Φ28* 47mm

2. Shaft Dia: 2.3mm

3. Rated Voltage:12V,18V, 24V

4. Endplay: 0.3mm

5. Lifetime: 20000H min

6. Phase: 3

7. Rotation: CW/CCW controllable





MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
RATED SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A g.cm W g.cm A
BLS2847I-V1 6V~12V 12V 7170 0.17 6095 0.903 122.2 7.64 814.8 5.059
BLS2847I-V2 8V~16V 18V 10833 0.2 9100 1.807 147.9 13.81 924.3 5.746
BLS2847I-V3 8V~26V 24V 12370 0.21 10391 1.113 173.6 18.5 1085.1 5.852



6000rpm Inrunner Brushless Motor ,  Electric Window DC 3 Phase Motor 0


Character of Brushless motor



For brushless motors, no mechanical contacts such as brushes and commutators, which are usually considered shortcomings of DC motors. DC motors use brushes and commutators to rotate, so regular maintenance is required, while brushless motors use Hall IC to detect the signal, to drive the ON/OFF of the transistor rotating, so no maintenance is required.



Stable speed control

The brushless motor continuously compares the setting speed with the feedback signal of the motor running speed, then to accordingly adjust the voltage applied to the motor; therefore, even if the load condition changes, it can still go from a low speed instantaneously adjust to the setting speed and run at this stable speed. For applications that require stable high speed, brushless motors are recommended.



Thin, high power

The rotor of the brushless motor uses permanent magnets, so it achieves thinness and high power; for example, compared with the three-phase induction motor of the installation size of 90mm, the total length is shortened by more than 75mm, and the output power reaches 1.3 times higher. If a brushless motor is used, it is helpful to achieve the miniaturization of the device.



Wider speed control range

The speed control range of brushless motors is wider than that of AC motors and frequency converters, brushless motors are suitable for applications require certain torque from low speed to high speed.



Contribution to energy saving and Protection features

The rotor of the brushless motor uses permanent magnets, which can reduce the secondary loss of the rotor. The power consumption is reduced by more than 20%, which contributes to the energy saving of the device. Equipped with protection function, to protect the safety of the equipment system.



If there is no suitable specifications, it can be customized according to actual needs.



some of Our customers



6000rpm Inrunner Brushless Motor ,  Electric Window DC 3 Phase Motor 1



6000rpm Inrunner Brushless Motor ,  Electric Window DC 3 Phase Motor 2

Brushless DC ELectric Motor-Typical Application



-Office apparatus and medical devices
• Printer, Copier, Projector, Shredder, Scanner
• Sphygmomanometer, Medical Stirrer, Medical Pump

- Power tool and fitness equipment

• Electric scissors,Water Pump, Vacuum Pump,Oxyen Generator
• Fascia gun, massage chair, treadmill
-Household appliances and personal care
• Air purifier, smart toilet, hair dryer, hair curler, fanner
• Blender, sweeper, window cleaner, small household appliances
