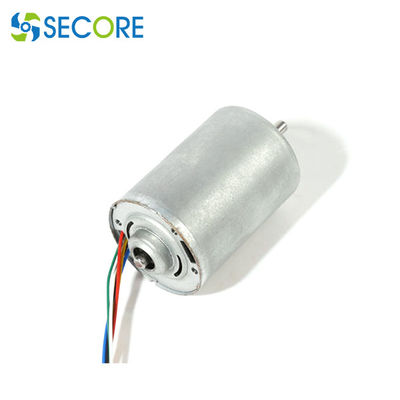

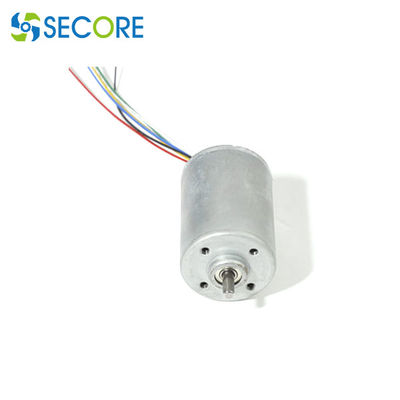

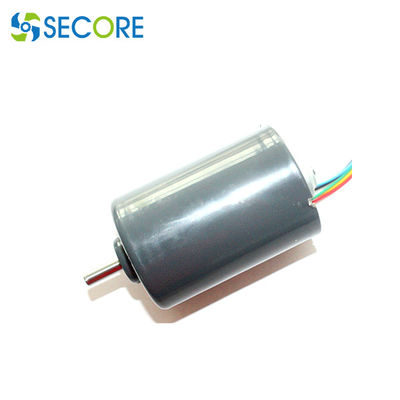

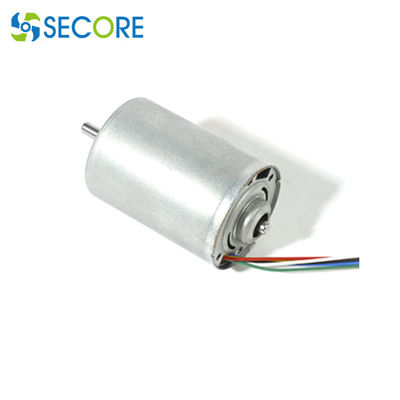

Name: 3V 6V 9V 12V 24V High Torque BLDC Motor, 5W 500W Inrunner BLDC Motor
Brand: SECORE
SKU: BLS-4260I
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (198 reviews)

Detail Information
Speed:	3400RPM Or Customized	Rated Torque:	600g.cm Or As Request
Diameter * Length:	∮42*60（mm）	Weight:	290g Appx
Type:	Brushless Dc Motor, Inrunner Bldc Motor, Motor Brushless 12v	Typical Application:	Body Dryer, Hair Dryer, Air Fryer, Electric Curtain, Blender
High Light:	24V high torque bldc motor , 500W high torque bldc motor , inrunner bldc motor

Product Description

Customized 3V 6V 9V 12V 24V Brushless Dc Motor, High Torque BLDC Motor 5W To 500W

Rough specification of the customized Brushless DC inrunner Motors :

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
	OPERATING RANGE	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
	OPERATING RANGE	RATED	r/min	A	r/min	A	g.cm	W	g.cm	A
BLS4260I-V1	8V~16V	12V	2035	0.13	1776	0.935	480.2	8.733	3694.3	6.186
BLS4260I-V2	8V~26V	18V	3693	0.14	3287	1.566	654.9	22.04	5951.3	12.3
BLS4260I-V3	8V~26V	24V	4282	0.17	3768	1.568	766.3	29.64	6388.2	11.64

3V 6V 9V 12V 24V High Torque BLDC Motor, 5W 500W Inrunner BLDC Motor 0

Inner Rotor Type BLDC Motor

The internal rotor BLDC motors from Secore are specially designed to meet rapid acceleration and high precision and low noise which applications call for.

It has the magnet inside acting as the rotor while the winding is arranged outside as the stator.
Compared with the outer rotor type, this motor has the following features:

Small moment of inertia of the rotating shaft
Ability to downsize the main unit
High heat dissipation efficiency

However, to obtain a high magnetic flux density using small magnets, high performance magnets must be used. Creating a large number of coils inside the stator is a more difficult task than winding coils outside the rotor. For this reason, an inner rotor type motor is currently used for applications that require a compact and high-output motor with superior dynamic characteristics.

TO BE TAILORED

Customized voltage, motor performance
Customized mounting, shaft dimension, and lead configuration
EMI/RFI suppression circuit
Overload protection, thermal protection
High temperature and waterproof option
Integrated gearbox, controller, encoder and brake

If there is no suitable specifications, it can be customized according to actual needs.

Typical Application:

Provide Solutions For Office Equipments, Air Purification Systems, Water Treatment Systems, Medical Equipments, Logistic Transmission Systems, Mechanical Equipments, Solar Tracking Equipments.

Tag:

Product Details:
Place of Origin:	Guangdong
Brand Name:	SECORE
Certification:	CE ROHS
Model Number:	BLS-4260I
Payment & Shipping Terms:
Minimum Order Quantity:	500
Price:	Negotiated The Price
Packaging Details:	500pcs per carton or as request
Delivery Time:	10-12 working days
Payment Terms:	T/T, D/A
Supply Ability:	100000pcs per month
