42mm Electric Brushless Dc Motor , Toy Car 14.8V Motor DC 3 Phase

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 100pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Guangdong, China Brand Name: SECORE
Certification: CE ROHS Model Number: BLS4235I

Detail Information

Speed: 4500RPM Or Customized Rated Torque: 300g.cm Or As Request
Continuous Current: 1.25A Or As Request Dimension: 36*50(mm)
Construction: Pernanent Magnet Weight: 159g
Keyword: ECM, EC Motor, Brushless Dc Motor, 14.8v Bldc Motor Typical Application: Pet Barber, Massager, Electric Clipper, Medical Pump, Toy Car
High Light:

42mm electric brushless dc motor

,

14.8V electric brushless dc motor

,

42mm motor dc 3 phase

Product Description

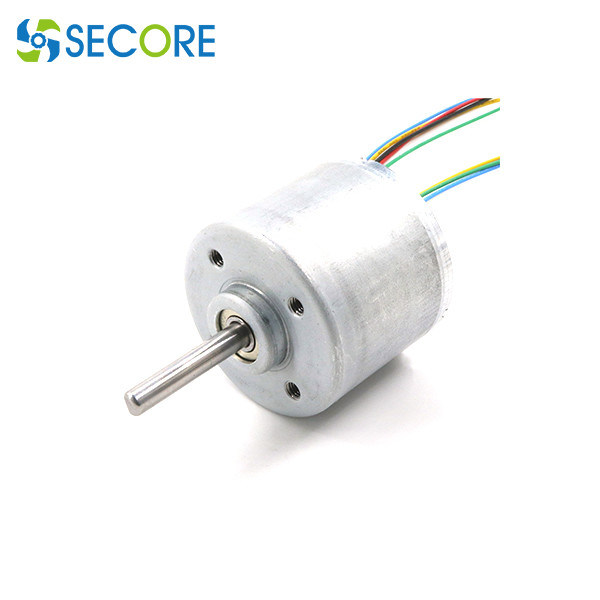

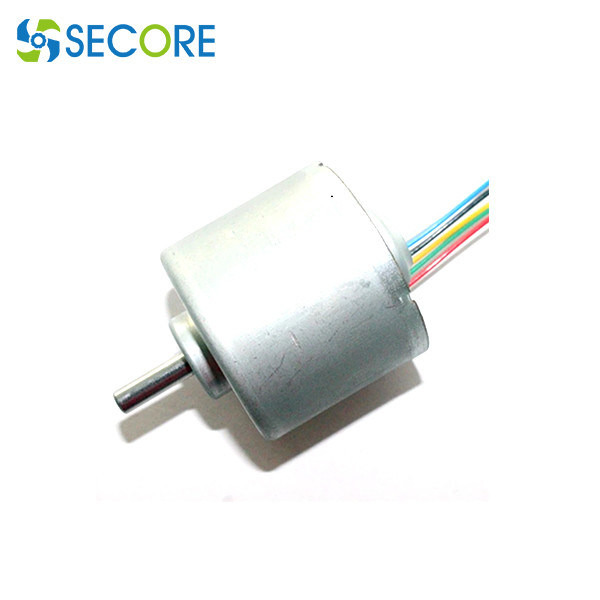

42mm Electronic Commutation Brushless Motor Dc 14.8V For Toy Car



Specifications :



1. Dimension: Φ42* L35mm

2. Shaft Dia: 5.0mm

3. Rated Voltage: 14.8Volt

4. Endplay: 0.3mm

5. Lifetime: 20000H min

6. Phase: 3

7. Rotation: CW/CCW controllable



MODEL VOLTAGE NO LOAD RATED LOAD STALL
OPERATING
RANGE
RATED SPEED CURRENT TORQUE SPEED CURRENT OUTPUT TORQUE CURRENT
r/min A g.cm r/min A W g.cm A
BLS4235I-V1 8~26 12V 2865 0.22 140.3 2053 1.18 8.63 1437.77 2.45
BLS4235I-V2 8~26 24V 6374 0.31 357.2 5133 1.16 18.72 1793.87 2.41
BLS4235I-V3 8~26 24V 9404 0.52 184.5 8537 1.17 16.14 1988.7 2.44
BLS4235I-V4 8~26 24V 5538 0.28 561.5 4394 0.44 25.35 2696.93 2.5
BLS4235I-V5 8~26 24V 8452 0.34 408.3 7581 1.68 31.76 3946.93 2.5



42mm Electric Brushless Dc Motor ,  Toy Car 14.8V Motor DC 3 Phase 0



What are main criterias for selecting an electric motor?

  • You should choose the types of electric motors ( AC Universal Motor, Brushless DC Motor, Brushed DC Motor, Gearbox Motor )
  • In order to select between above groups, it is necessary to determine the type of application required
  • Depending on the movement your require, specifications and size of the motor are necessary as well ( power, torque, speed, dimension, industrial environment etc )
  • Energy efficiency has become an important factor to take into account when selecting a motor

Product capacity:



Brush Dc Motor:Φ6mm—Φ60mm

Brushless Dc Motor:Φ16mm-Φ42mm

Gear/Planetary Gear Dc Motor:Φ4mm—Φ60mm

Stepper Dc Motor:Φ6mm—Φ24mm

Vibration Dc Motor:Φ4mm—Φ45mm

Motor Voltage Range: DC1.5V-220V, AC 110V/220/230/240V

Speed Range:0.1-80,000RPM

Output Torque:0.01-500Kg.cm

Shaft Length:0.1-150mm



If there is no suitable specifications, it can be customized according to actual needs.



some of Our customers



42mm Electric Brushless Dc Motor ,  Toy Car 14.8V Motor DC 3 Phase 1





Brushless DC ELectric Motor-Typical Application



Industrial automation: conveyers, rotational operation, automatic gate system, solar tracker etc.

Household electrical appliance : lawn mower, ice crusher, stair lift, air-condition, masticating juicer, food waste disposer etc.,

The automotive industry: truck tarp systems, pumps, electric chair, jack, etc.

Recreational equipment: swimming pool cleaners, pool cover systems, golf trolley, amusement machines etc.

Office automation: automatic doors, elevator doors, roller shutter, curtains, punch machines, financial instruments, etc.

Medical and health-care equipment: all kinds of massage health care equipment, medical equipment, etc.
