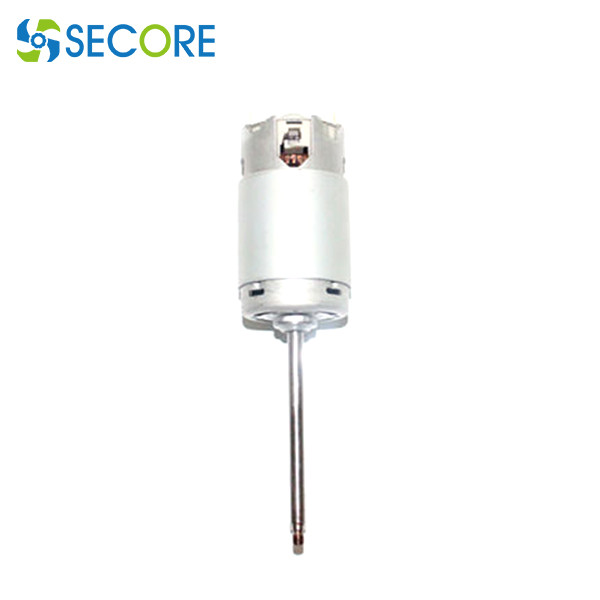

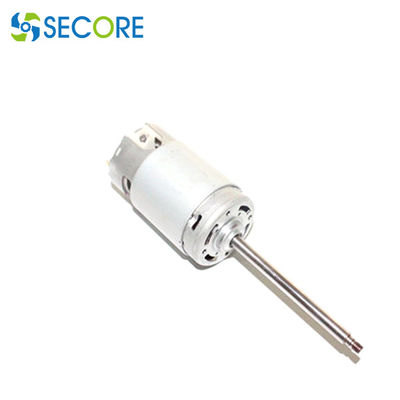

High Voltage 240V Carbon Brush DC Motor, 11000rpm Brushed DC Electric Motor

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Guangdong, China Brand Name: SECORE
Certification: CE ROHS Model Number: DC-2733

Detail Information

Speed: 11000rpm Or Customized Rated Voltage: 220V
Rated Torque: 95m.Nm Or As Request Commutation: Brushed, Carbon Commutator
Output: 170W Approx Product Name: Hand Hold Mixer, Mixer Machine, Food Cooking Machine Table
High Light:

240V carbon brush dc motor

,

11000rpm carbon brush dc motor

,

11000rpm brushed dc electric motor

Product Description



High Voltage 240V Carbon Brush DC Motor, Dc Brushed Juicer Motor



Key specifications:

  • Typical applications: hand hold mixer, mixer machine, food cooking machine table
  • Dimensions (D x L): 45 x 75mm
  • Shaft (diameter): 5mm
  • Model: DC2733
  • Operating range: 100 to 234V DC
  • Nominal: 230V
  • At free load:
    • Speed: 15,500rpm
    • Current: 0.2A
  • At max. efficiency:
    • Speed: 11800rpm
    • Current: 1.12A
    • Torque: 109g.cm
    • Output: 205W
MODEL SPEC VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY
A B C Operating
range
RATED SPEED CURRENT POWER SPEED CURRENT OUTPUT TORQUE
r/min A W r/min A W m.Nm
DC2720 95 60 25 100V-240V 230V 14200 0.13 25 10960 0.73 73 50.6
DC2725 100 66 25 100V-240V 230V 13000 0.14 36 9330 0.43 72.5 74.5
DC2733 103 75 19.5 100V-240V 230V 15500 0.18 27 11030 0.86 182 96.4
DC2737 106 78 19 100V-240V 230V 15200 0.17 33 11410 0.95 196 105.3
DC2740 106 81 19 100V-240V 230V 15000 0.3 34 11820 1.14 203 109.5





DC Motor Technical Parameter/ DC Motor Performance Curve:



High Voltage 240V Carbon Brush DC Motor, 11000rpm Brushed DC Electric Motor 0



What we make?



Secore provides custom engineering to design gear motors utilizing various motor type ( brushless DC motor, brushed DC motor, universal motor and other motors),integrated control & sensing, gear type(spur & helical, worm and planetary) and gearbox material to meet customers' expectation.



we offer DC motors with precision gearboxs, high-resolution encoders and high-performance drive electronics. With our database of samples, our team(sales and engineers) will help you find the DC motor that is perfectly matched to your requirements quickly.



We could design the motor for you according to your actual needs.



MOTOR DESIGNER



High Voltage 240V Carbon Brush DC Motor, 11000rpm Brushed DC Electric Motor 1

High Voltage 240V Carbon Brush DC Motor, 11000rpm Brushed DC Electric Motor 2



Typical Application:



-Office apparatus and medical devices
• Printer, Copier, Projector, Shredder, Scanner
• Sphygmomanometer, Medical Stirrer, Medical Pump

- Power tool and fitness equipment

• Electric scissors,Water Pump, Vacuum Pump,Oxyen Generator
• Fascia gun, massage chair, treadmill
-Household appliances and personal care
• Air purifier, smart toilet, hair dryer, hair curler, fanner
• Blender, sweeper, window cleaner, small household appliances
