Carbon Brushed Permanent Magnet DC Motor 230v 1000w for Power Tool

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 10-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China,Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: DC31

Detail Information

Speed: 15000rpm Or Customized Rated Voltage: 230Volt
Dimension: ø31mm * L70mm Shaft Diameter: ø5mm
Protection: Explosion Proof, Water Proof, Drip-proof Typical Application: Electric Callus Removers, Electric Toys, Power Tool, Treadmill
High Light:

230v Brushed Permanent Magnet DC Motor

,

1000w Brushed Permanent Magnet DC Moto

,

230v carbon brush motor dc

Product Description

230v 1000w 15000rpm Dc Brushed Motor, Carbon Motor For Power Tool



Rough Features:



Rated voltage: 230v

No load speed: 15000RPM

No load current: 0.18A

At load speed: 12000RPM

At load current: 1.0A

At load Torque: 89m.Nm



HV permanent magnet DC motor applies for hand blender, meat grinder, meat mincer, mixer, food processor,   power tools, smart household appliances



MODEL SPEC VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY
A B C Operating
range
RATED SPEED CURRENT POWER SPEED CURRENT OUTPUT TORQUE
r/min A W r/min A W m.Nm
DC3130 54.5 98 20 100V-240V 230V 15000 0.18 30 12000 1 206 89
DC3135 59.5 109 22 100V-240V 230V 14500 0.2 35 11550 0.7 133 75.0

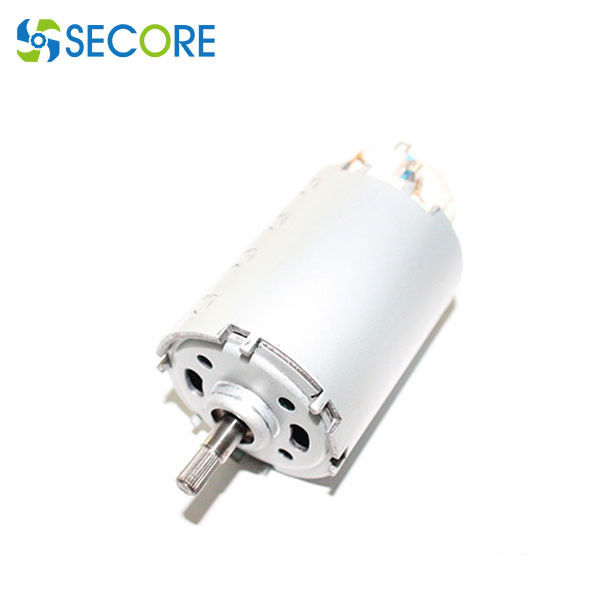

Carbon Brushed Permanent Magnet DC Motor 230v 1000w for Power Tool 0

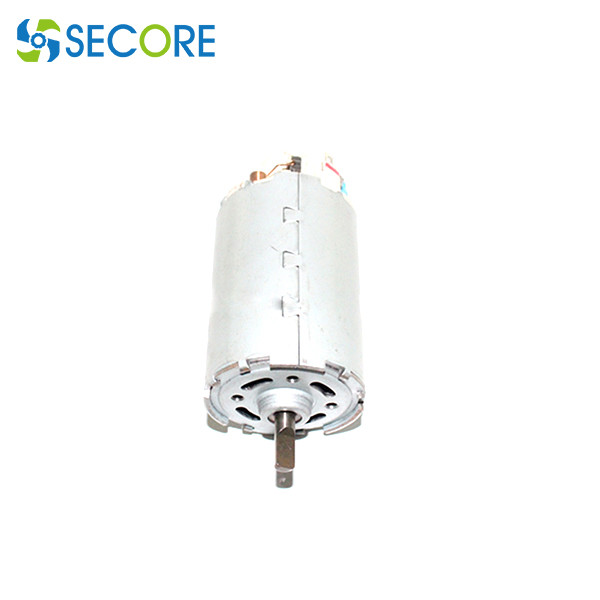

Carbon Brushed Permanent Magnet DC Motor 230v 1000w for Power Tool 1



TO BE TAILORED



Our brushed DC Motors can be customized in the range of 7.2 ~ 230V and 40~100,000rpm, and are fully used in the fields of household appliances, automation, medical healthcare and power tools, such as: hand blender, coffee machine, vacuum cleaner, Robot, etc



All characteristics above are customizable, if you want Worm Gear Motor, Stepper Motor, Brushless DC Motor, Brush Motor and other motors' OEM / ODM service, please contact us for further information.



Brushed motor vs brushless DC motors



Brushless motors have the advantages of brushed motors and are superior to brushed phones. Main features: low noise, long life, stable operation, no sparks, high efficiency, high dynamic response, strong reliability, etc.,

The application of permanent magnet brushless DC motors is increasing by about 15% every year. Under such circumstances, it is inevitable that brushless motors are gradually replacing other motors.



Four types of brushed motors



Permanent magnet:

This type of motor contains a permanent magnet that enables low torque.

This is useful for applications requiring precise control such as robotics or servo systems.



Series-wound:

In this type of motor, the stator is connected in series with the rotor and the speed is controlled by varying the supply voltage.

However, this type of speed control is rather poor: the speed drops as soon as the torque to the engine increases.

This type of engine is useful for applications requiring high starting torque, such as automotive power seat or AMT.



Shunt-wound:

In this type of motor, the stator is connected in parallel to the rotor, which allows for a higher torque without reducing the speed as the motor current increases.

This type of motor is suitable for applications with constant speeds such as vacuum cleaners or conveyors.



Compound wound:

This type of motor combines the structure of series-wound motors and shunt-wound motors.

As a result, it offers a high starting torque as well as a higher speed variation.

This type of motor is perfect for rotary presses, elevators, baggage carousels, centrifugal pumps and compressors.







Carbon Brushed Permanent Magnet DC Motor 230v 1000w for Power Tool 2



Typical Application:



Medical - Powered surgical instruments, Dental hand tools, Infusion, Volumetric & Insulin Pumps, Diagnostic & scanning equipment
Security & Access - Security cameras, Locks, Bar code readers, Paging systems
Aerospace & Defense - Cockpit gauge, Indicators, Satellites, Optical scanners
Robotics & Factory Automation - Conveyors, Remote controlled vehicles, Industrial robots
Power Hand Tools - Shears, Pruning hand tools, Nail guns
Electronic Assembly Surface Mount Equipment - Electronic assembly, Robotics and Automated machinery equipment and Pick and place machinery
