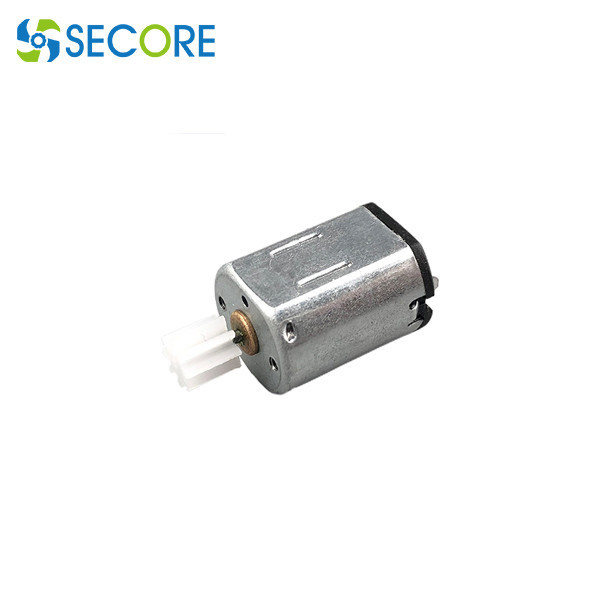

1.5V 3V 5V 20000rpm Brushed Aircraft Motor 0.5W For Four Axis Toy

Minimum Order Quantity :	500	Price :	Negotiated The Price
Packaging Details :	500pcs per carton or as request	Delivery Time :	10-12 working days
Payment Terms :	T/T, D/A	Supply Ability :	100000pcs per month

Place of Origin:	China,Guangdong	Brand Name:	SECORE
Certification:	CE ROHS	Model Number:	DC1011

Detail Information
Model:	DC1016	Rated Voltage:	1.5V 3V 5V
Dimension:	11.5810mm	Shaft Diameter:	ø1.0mm
Torque:	1.2-1.8g.cm	Efficiency:	IE 2
Speed:	10000rpm 20000rpm Or Customized	Commutation:	Mechanical Commutation, Carbon Brush
Protection:	Explosion Proof, Water Proof, Drip-proof	Application:	Aircraft Model, Door Lock, Camcorder, MD Player, Camera
High Light:	20000rpm Brushed Aircraft Motor , Four Axis Brushed Aircraft Motor , 0.5W Metal Brush Motor

Product Description

Mechanical commutated Mini 1.5V 3V 5V Aircraft Motor, Four Axis Aircraft Toy Motor with Precious Metal

Key Specifications/Special Features:

Model: DC1016

Voltage: low voltage 1.5V, 3V, 5V
Output Power: 0.05W~0.5W
High Speed: 10000RPM~20000RPM
Introduction: Small Size; Low Noise; High Speed

LV permanent magnet DC motor applies for personal care, beauty equipment, breast pump, health products, toys, model aircraft

Motor characteristic cases:

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY					STALL
	OPERATING RANGE	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	TORQUE	OUTPUT	TORQUE	TORQUE	CURRENT
	OPERATING RANGE	RATED	r/min	A	r/min	A	mN.m	g.cm	W	mN.m	g.cm	A
DC1016-01	1.2-2.0	1.5	13900	0.063	10000	0.166	0.1	1.2	0.125	0.42	4.3	0.43
DC1016-02	1.5-3.5	3.0	20400	0.05	14900	0.14	0.1	1.2	0.18	0.43	4.4	0.38
DC1016-03	1.5-5.5	5.0	27400	0.05	20000	0.14	0.18	1.8	0.365	0.65	6.6	0.38

Appearance dimensions:

1.5V 3V 5V 20000rpm Brushed Aircraft Motor 0.5W For Four Axis Toy 0

Motor performance curve ( T-N-I curve ):

1.5V 3V 5V 20000rpm Brushed Aircraft Motor 0.5W For Four Axis Toy 1

Working principle of brushed DC Motor:

The stator of the brushed DC motor is equipped with fixed main poles ( permanent magnets) and brushes, the armature windings and commutators are installed on the rotor. The electrical energy of the DC power supply enters the armature winding through the carbon brushes and the commutator to generate an armature current. The magnetic field generated by the armature current interacts with the main magnetic field to generate electromagnetic torque, which makes the motor rotate to drive the load.
