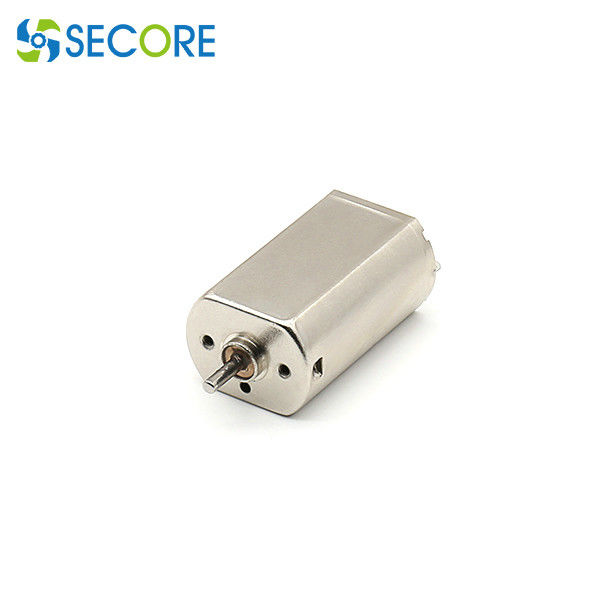

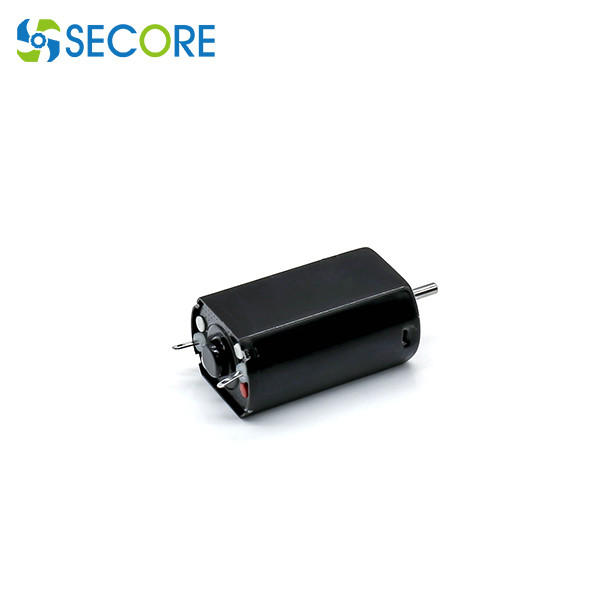

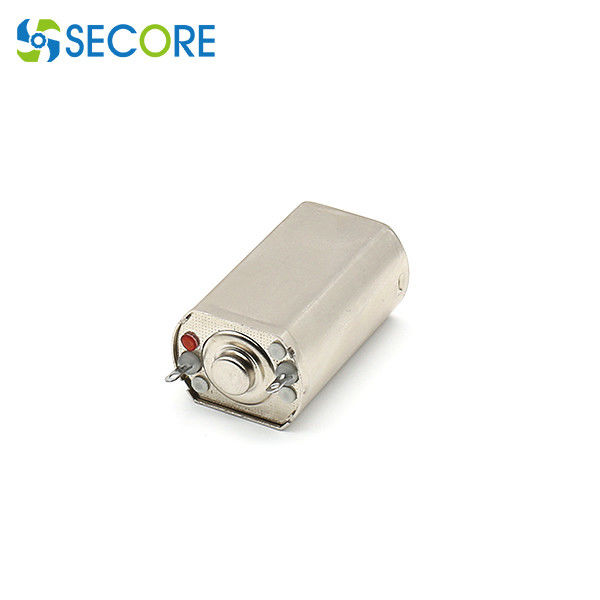

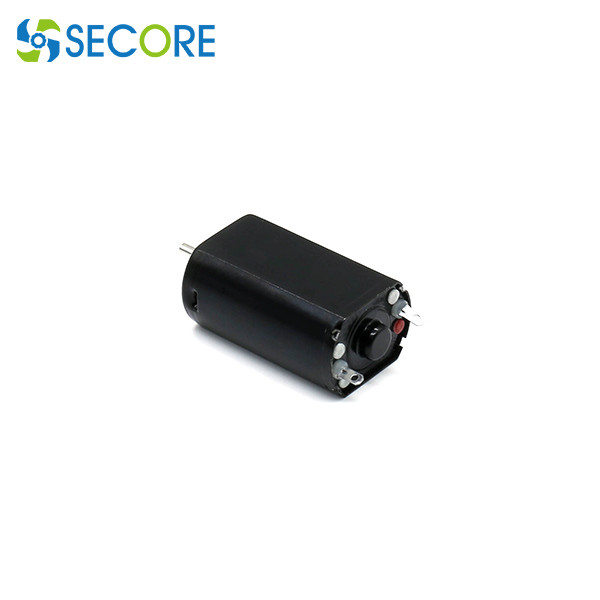

Tattoo Machine 0.1W 8800rpm Brushed Dc Motor For Hair Curler

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 7-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: Guangdong Brand Name: SECORE
Certification: CE ROHS Model Number: DC1020

Detail Information

Type: Micro Motor, Brush Motor Working Voltage: 1V-6V
Sizes: 20*8*10mm Max Torque: 12.2 G.cm
Speed: 8800rpm Or Customized Protection: Drip-proof
Commutation: Mechanical Commutation, Brush Application: Hair Curler, Hair Straightener, Tattoo Machine
High Light:

0.1W Brushed Dc Motor

,

8800rpm Brushed Dc Motor

,

Hair Curler Permanent Magnet Motor

Product Description

Small Size Stable Metal Brush Motor For tattoo machine, low voltage brushed dc motor 3v



Cases of Motor characteristic:

Motor model: DC1020
Working Voltage range: low voltage 1.5V~ 6V
Output Power: 0.05W~0.1W
High Speed: 8000RPM~10000RPM
Features: Tiny Size; Low Noise; High Speed; high torque

  Specification DC1020-01 DC1020-02 DC1020-03
Voltage OPERATING RANGE (V) 1.0-3.0 3.0-6.0 4.0-7.0
Nominal (V) 1.5V 4.5V 6.0V
No load Speed (r/min) 11300 9700 14900
Current (A) 0.08 0.025 0.027
AT MAXIMUM EFFICIENCY Speed (r/min) 8815 7370 11771
Current (A) 0.293 0.079 0.099
Torque (mN.m) 0.28 0.27 1.2
Torque (g.cm) 2.9 2.8 12.2
Output (W) 0.26 0.21 0.31
Stall Torque (mN.m) 1.08 1.16 1.2
Torque (g.cm) 13 11.8 12.2
Current (A) 1.05 0.25 0.37



LV permanent magnet DC motor applies for Hair Curler And hair Straightener, sex toys, personal care, beauty equipment, health products, toys, model aircraft



Mounting sizes:



Tattoo Machine 0.1W 8800rpm Brushed Dc Motor For Hair Curler 0



Motor performance curve ( T-N-I curve ):



Tattoo Machine 0.1W 8800rpm Brushed Dc Motor For Hair Curler 1
