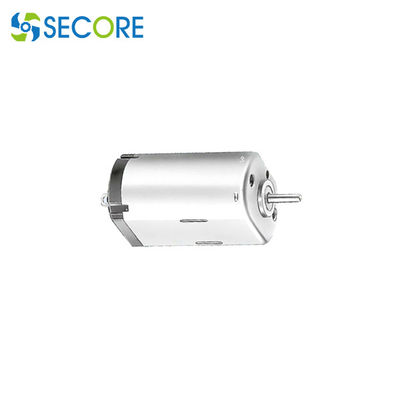

13000rpm Neo Magnet Dc Brush Motor 0.2W Flat Mechanical

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 9-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China Brand Name: SECORE
Certification: CE ROHS Model Number: DC100815

Detail Information

Model Number: DC100815 Operating Voltage: 1.5V
Measured Dimension: 10*8*15mm Rated Torque: 0.15 MN.m
Speed: 13000rpm Or Customized Customized Shaft: D-Cut, Screw, Round Trape, I-Cut Type Etc
Construction: Permanent Magnet Application: CD Players, Sex Toy, Adult Product
High Light:

Neo Magnet Dc Brush Motor

,

13000rpm Dc Brush Motor

,

0.2W Flat Mechanical Commutating Motor

Product Description

Miniature Neo-Magnet Dc Brush Motor, 0.2W low power Flat Mechanical Commutating Motor



Cases of Main specification:

Model Number: DC100815
Voltage range: low voltage 1.5-4.0V
Output Power: 0.21W~0.26W
High Rotating Speed: 13300RPM~14050RPM
Features: Small Size; Low Noise; High Speed; high torque



LV permanent magnet DC motor applies for CD players, sex toys, personal care, beauty equipment, health products, toys, model aircraft



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A mN.m g.cm W mN.m g.cm A
DC100815-01 1.2-2.0 1.5 17100 0.094 13300 0.33 0.15 1.6 0.21 0.69 7 1.15
DC100815-02 1.5-4.0 2.8 17800 0.052 14050 0.19 0.18 1.8 0.26 0.85 8.7 0.73



Appearance dimensions:

13000rpm Neo Magnet Dc Brush Motor 0.2W Flat Mechanical 0



Motor performance curve ( T-N-I curve ):



13000rpm Neo Magnet Dc Brush Motor 0.2W Flat Mechanical 1
