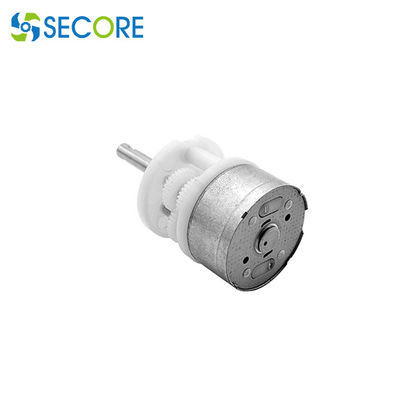

Tailor 3V 14mm Gearbox Dc Gear Motor 4.2RPM For Ball Light

Minimum Order Quantity : 100 Price : Negotiated The Price
Packaging Details : 500pcs per carton or as request Delivery Time : 9-12 working days
Payment Terms : T/T, D/A Supply Ability : 100000pcs per month
Place of Origin: China Brand Name: SECORE
Certification: CE ROHS Model Number: SC-30

Detail Information

Model Number: SC-30 Nominal Voltage: 3V To 12V
Gearbox Length: 14mm Long Shaft: 23.8mm
Motor Size: Dia 24.9mm * 12.4mm Length Customized Shaft: D-Cut, Screw, Round Trape, I-Cut Type Etc
Construction: Permanent Magnet Application: Beauty Instrument, Robot, Ball Light
High Light:

Tailor 3V Dc Gear Motor

,

14mm Gearbox Dc Gear Motor

,

4.2RPM Permanent Magnet DC Motor

Product Description

Customized 3V 12V Low Speed 5RPM DC Plastic Gear Motor For Revolving light



Main specification cases:

Model Number: SC-30
Voltage range: low voltage 3.0-12.0V
Low Output Power: 0.12W
Reduced Rotating Speed: 1.1RPM-4.2RPM
Features: Tiny Size; Low Noise; extremely low Speed;



LV DC Planstic Gear motor applies for CD players, sex toys, personal care, beauty equipment, health products, toys, model aircraft



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A mN.m g.cm W mN.m g.cm A
SC30-06950 2.0-4.0 3 1.72 0.011 1.1 0.021 72.7 741.8 0.1 204.2 2083 0.034
SC30-06930 9.0-13.0 12 6.51 0.045 4.2 0.081 268.3 2736.3 0.12 748 7630 0.145



Tailor 3V 14mm Gearbox Dc Gear Motor 4.2RPM For Ball Light 0



Gear motor dimensions:



Tailor 3V 14mm Gearbox Dc Gear Motor 4.2RPM For Ball Light 1
